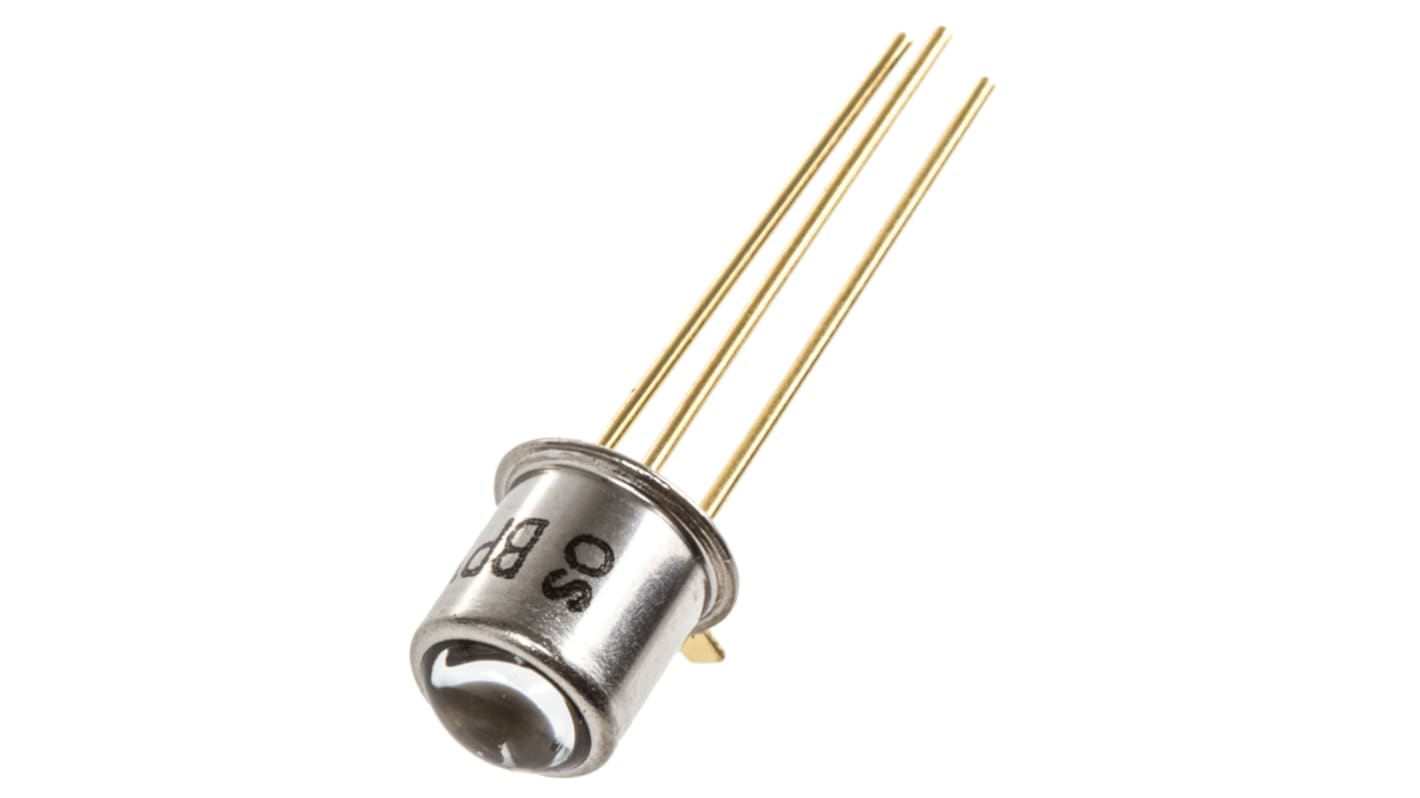

BPY 62-3/4 Osram Opto 16 ° IR + Visible Light Phototransistor, Through Hole 3-Pin TO-18 package

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Phototransistor TO-18 package

This family of NPN phototransistors, from OSRAM Opto Semiconductors, are in standard TO-18 through-hole packages. These TO-18 metal can packages make these phototransistors ideal for applications in hostile environments.

IR Phototransistors, OSRAM Opto Semiconductors

Specifications
Attribute Value
Spectrums Detected Infrared, Visible Light
Typical Fall Time 12µs
Typical Rise Time 12µs
Number of Channels 1
Maximum Light Current 5800µA
Maximum Dark Current 50nA
Angle of Half Sensitivity 16 °
Polarity NPN
Number of Pins 3
Mounting Type Through Hole
Package Type TO-18
Dimensions 5.6 x 5.6 x 6.2mm
Collector Current 100mA
Width 5.6mm
Spectral Range of Sensitivity 400 → 1100 nm
Minimum Wavelength Detected 400nm
Height 6.2mm
Length 5.6mm
Maximum Wavelength Detected 1100nm
1230 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 12.39
units
Per unit
Per Pack*
5 - 20
MYR12.39
MYR61.95
25 - 45
MYR8.552
MYR42.76
50 - 95
MYR8.38
MYR41.90
100 - 245
MYR6.34
MYR31.70
250 +
MYR5.97
MYR29.85
*price indicative
