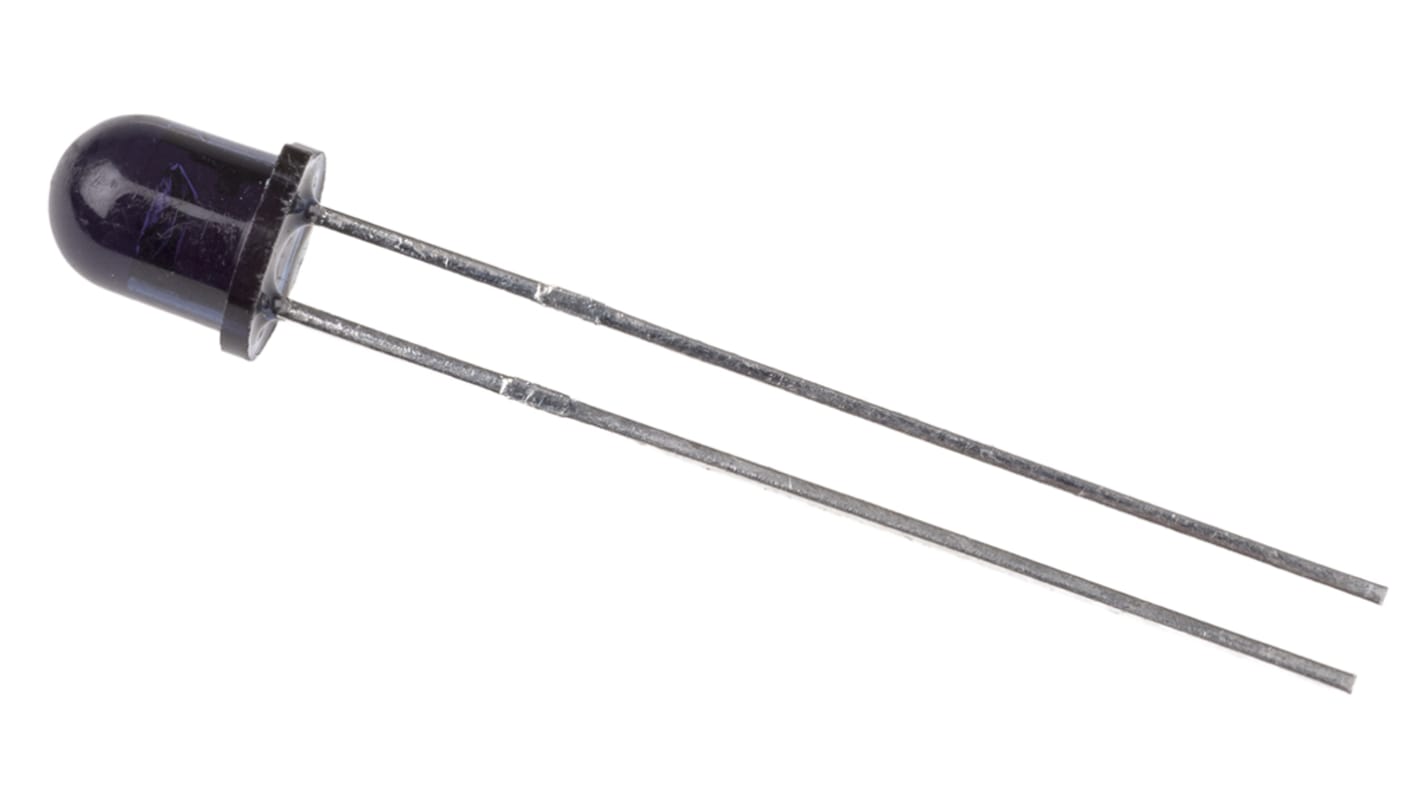

OP593B Optek, IR Phototransistor, Through Hole 2-Pin TO-18 package

  • RS Stock No. 170-0768
  • Mfr. Part No. OP593B
  • Manufacturer Optek
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

OP593 and OP598 Series Phototransistors

The OP593 and OP598 series, from Optek Technology Inc., are a family of NPN silicon phototransistors. They are in dark blue plastic TO-18 equivalent packages. They offer a wide receiving angle in a variety of different sensitivity ranges.

Features of the OP593 and OP598 phototransistors:
Through-hole mounting
TO-18 equivalent package
Dark blue lens
Wide receiving angle
Operating temperature: -40 to +100 °C

IR Phototransistors, Optek

Specifications
Attribute Value
Spectrums Detected Infrared
Number of Channels 1
Maximum Light Current 4000µA
Maximum Dark Current 100nA
Polarity NPN
Number of Pins 2
Mounting Type Through Hole
Package Type TO-18
Dimensions 5.72 x 5.72 x 7.62mm
Collector Current 50mA
Spectral Range of Sensitivity Maximum of 890 nm
Width 5.72mm
Height 7.62mm
Length 5.72mm
Maximum Wavelength Detected 890nm
Temporarily out of stock - back order for despatch 11/02/2020, delivery within 4 working days from despatch date
Price Each (In a Bag of 500)
MYR 3.941
units
Per unit
Per Bag*
500 +
MYR3.941
MYR1,970.50
*price indicative
