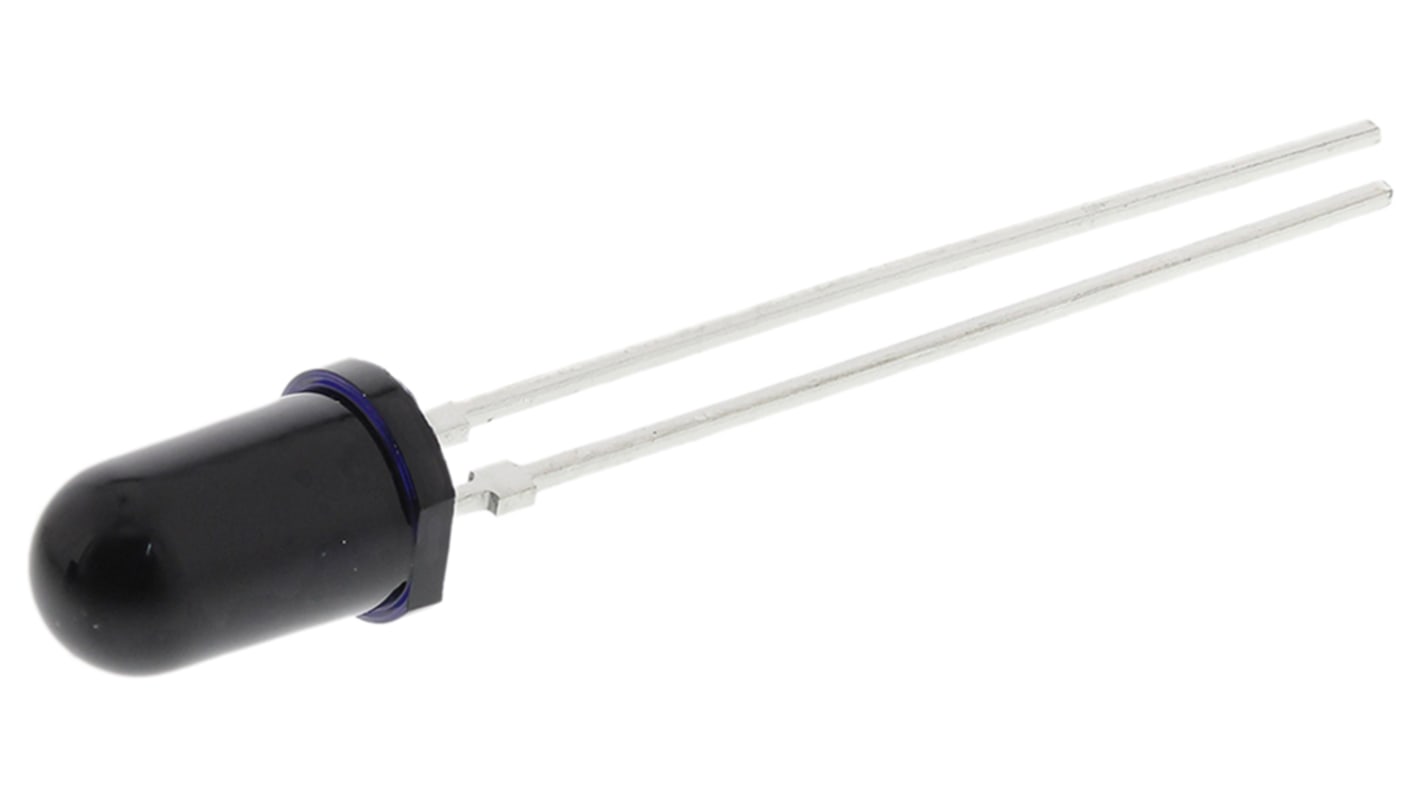

SFH 300 FA Osram Opto 50 ° IR Phototransistor, Through Hole 2-Pin 5mm (T-1 3/4) package

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Phototransistor T-1 3/4 (5mm) Package

This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are a range of 5mm (T-1 3/4) through-hole devices. They have both clear or black plastic lenses, the diffused lenses being used for daylight filters. Suitable applications include; computer-controlled flashes, photointerrupters, industrial electronics and for control/drive circuits.

5mm (T-1 3/4) packages
Through-hole mounting

IR Phototransistors, OSRAM Opto Semiconductors

Specifications
Attribute Value
Spectrums Detected Infrared
Typical Fall Time 10µs
Typical Rise Time 10µs
Number of Channels 1
Maximum Dark Current 50nA
Angle of Half Sensitivity 50 °
Polarity NPN
Number of Pins 2
Mounting Type Through Hole
Package Type 5mm (T-1 3/4)
Dimensions 5.9 x 5.9 x 9mm
Collector Current 50mA
Minimum Wavelength Detected 730nm
Maximum Wavelength Detected 1120nm
Spectral Range of Sensitivity 730 → 1120 nm
Width 5.9mm
Height 9mm
Length 5.9mm
4000 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 1000)
MYR 0.989
units
Per unit
Per Bag*
1000 +
MYR0.989
MYR989.00
*price indicative
