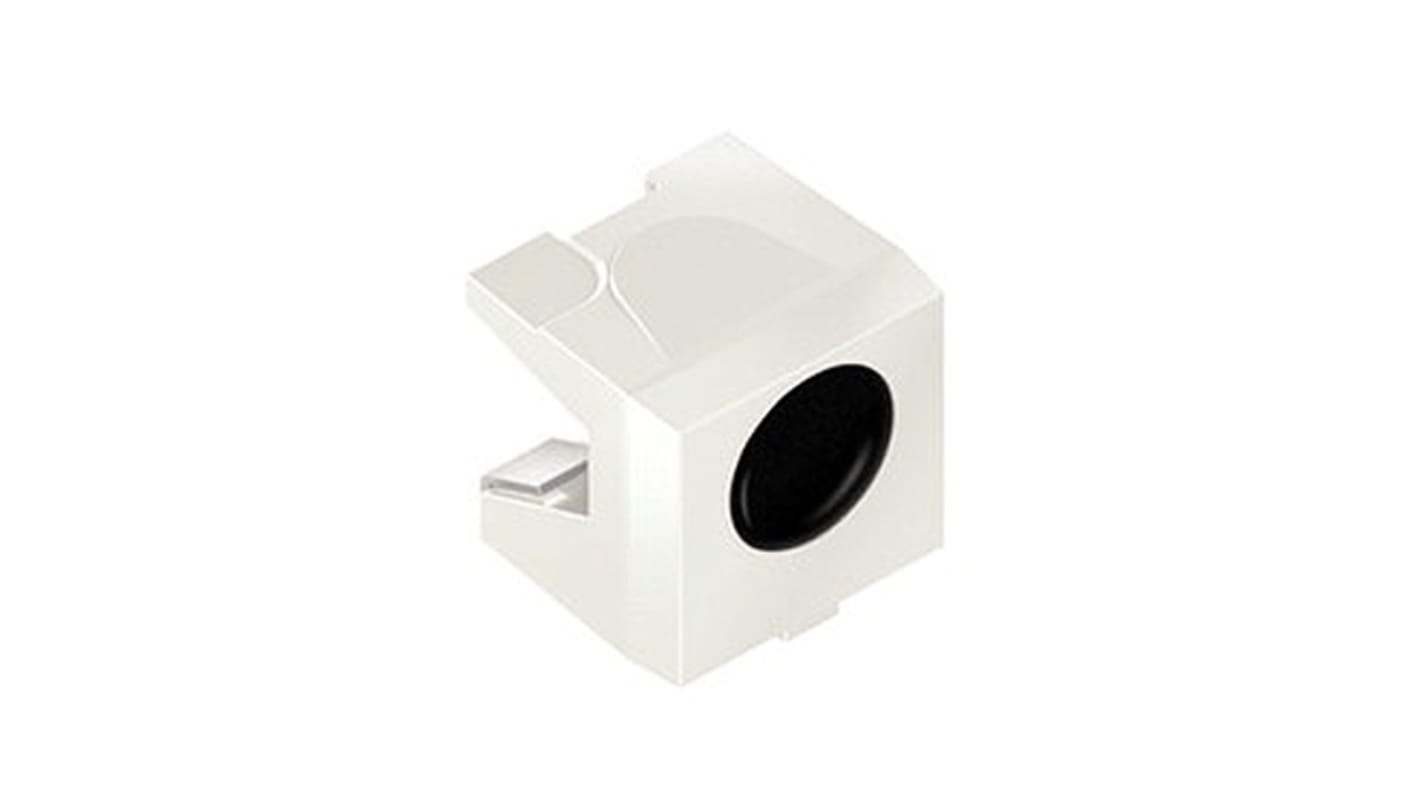

SFH 325 FA-3/4-Z ams OSRAM, SIDELED 120 ° IR Phototransistor, Surface Mount 2-Pin PLCC package
- RS Stock No.:
- 168-5306
- Mfr. Part No.:
- SFH 325 FA-3/4-Z
- Manufacturer:
- ams OSRAM
2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 2000)
MYR1.477
| Units | Per Unit | Per Reel* |
| 2000 - 8000 | MYR1.477 | MYR2,954.00 |
| 10000 + | MYR1.329 | MYR2,658.00 |
| *price indicative | ||
- RS Stock No.:
- 168-5306
- Mfr. Part No.:
- SFH 325 FA-3/4-Z
- Manufacturer:
- ams OSRAM
Technical data sheets
Legislation and Compliance
Product Details
Phototransistor SIDELED® Package
This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are in their SIDELED® surface mount (SMD) package.
High linearity
P-LCC-2 package
Dimensions: 4.2 x 4.2 x 3.8 mm
Suitable only for reflow IR soldering
P-LCC-2 package
Dimensions: 4.2 x 4.2 x 3.8 mm
Suitable only for reflow IR soldering
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 7µs |
| Typical Rise Time | 7µs |
| Number of Channels | 1 |
| Maximum Light Current | 80µA |
| Maximum Dark Current | 50nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Dimensions | 4.2 x 4.2 x 3.8mm |
| Collector Current | 15mA |
| Spectral Range of Sensitivity | 750 → 1120 nm |
| Maximum Wavelength Detected | 1120nm |
| Minimum Wavelength Detected | 750nm |
| Series | SIDELED |
| Length | 4.2mm |
| Height | 3.8mm |
| Width | 4.2mm |
