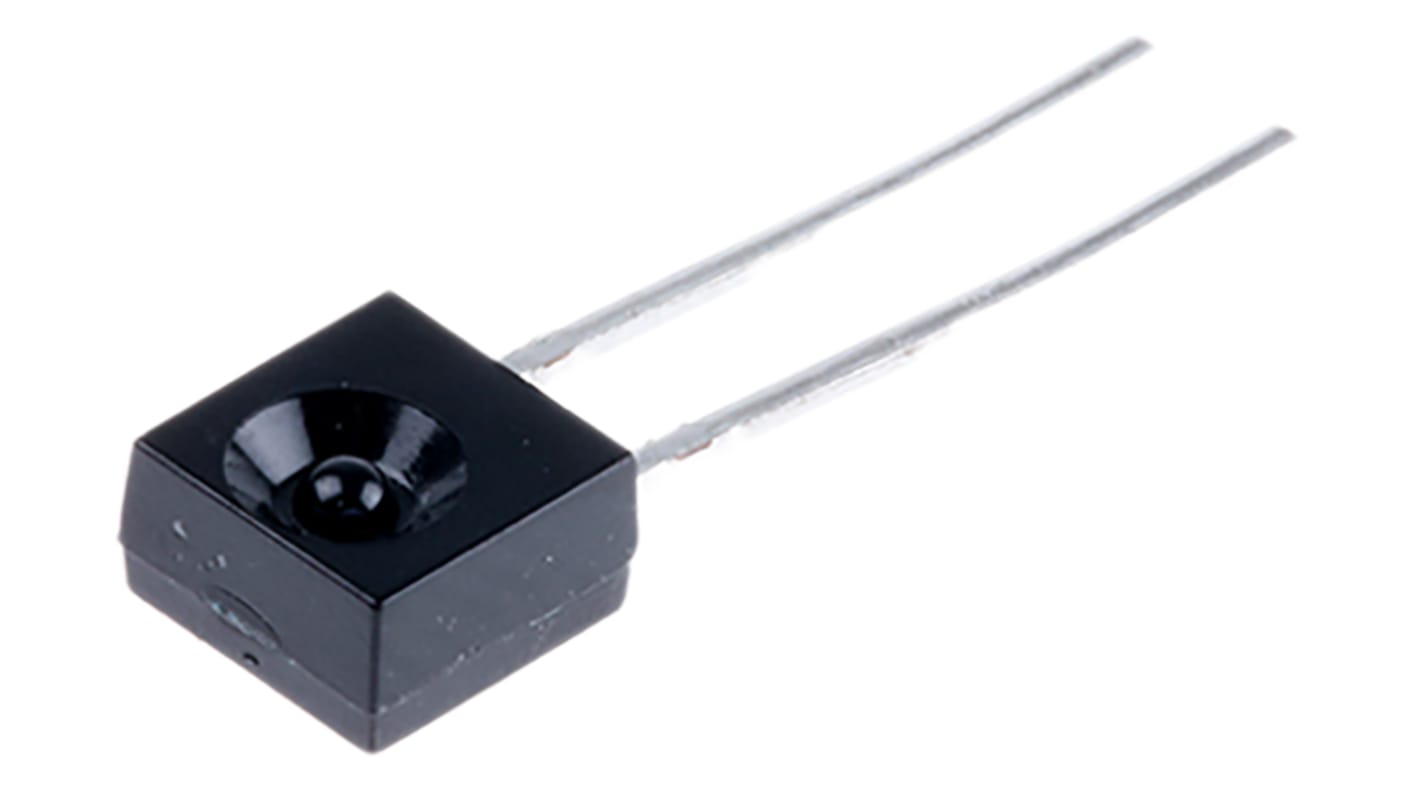

TEKT5400S-ASZ Vishay, 74 ° IR Phototransistor, Through Hole 2-Pin Side Looker package
- RS Stock No.:
- 165-3001
- Mfr. Part No.:
- TEKT5400S-ASZ
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 17/06/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Bag of 2000)
MYR2.857
| Units | Per Unit | Per Bag* |
| 2000 - 2000 | MYR2.857 | MYR5,714.00 |
| 4000 - 18000 | MYR2.772 | MYR5,544.00 |
| 20000 + | MYR2.494 | MYR4,988.00 |
| *price indicative | ||
- RS Stock No.:
- 165-3001
- Mfr. Part No.:
- TEKT5400S-ASZ
- Manufacturer:
- Vishay
Technical data sheets
Legislation and Compliance
Product Details
TEKT5400 Series PIN Photodiodes
The TEKT5400 series, from Vishay Semiconductor, are silicon NPN phototransistors. They are in side looking, through-hole packages. They have a black plastic package which provides a daylight filter, blocking out ambient visible light. The TEKT5400 phototransistors are ideal for use as detectors in electronic control and drive circuits.
Features and Benefits:
• Package type: leaded
• Package form: side view lens
• Dimensions (L x W x H in mm): 5 x 2.65 x 5
• High radiant sensitivity
• Daylight blocking filter matched with 940 nm
emitters
• Fast response times
• Angle of half sensitivity: ϕ = ± 37°
• Package matched with IR emitter series TSKS5400S
• Package form: side view lens
• Dimensions (L x W x H in mm): 5 x 2.65 x 5
• High radiant sensitivity
• Daylight blocking filter matched with 940 nm
emitters
• Fast response times
• Angle of half sensitivity: ϕ = ± 37°
• Package matched with IR emitter series TSKS5400S
Applications:
• Detector in electronic control and drive circuits
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 5µs |
| Typical Rise Time | 6µs |
| Number of Channels | 1 |
| Maximum Light Current | 4000µA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | 74 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Side Looker |
| Dimensions | 5 x 2.65 x 5mm |
| Collector Current | 100mA |
| Minimum Wavelength Detected | 850nm |
| Maximum Wavelength Detected | 980nm |
| Spectral Range of Sensitivity | 850 → 980 nm |
| Height | 5mm |
| Length | 5mm |
| Width | 2.65mm |
