TEMT6000X01 Vishay, ±60 ° Visible Light Phototransistor, Surface Mount 3-Pin 1206 package

RS Stock No.:: 165-2772
Mfr. Part No.:: TEMT6000X01
Manufacturer:: Vishay

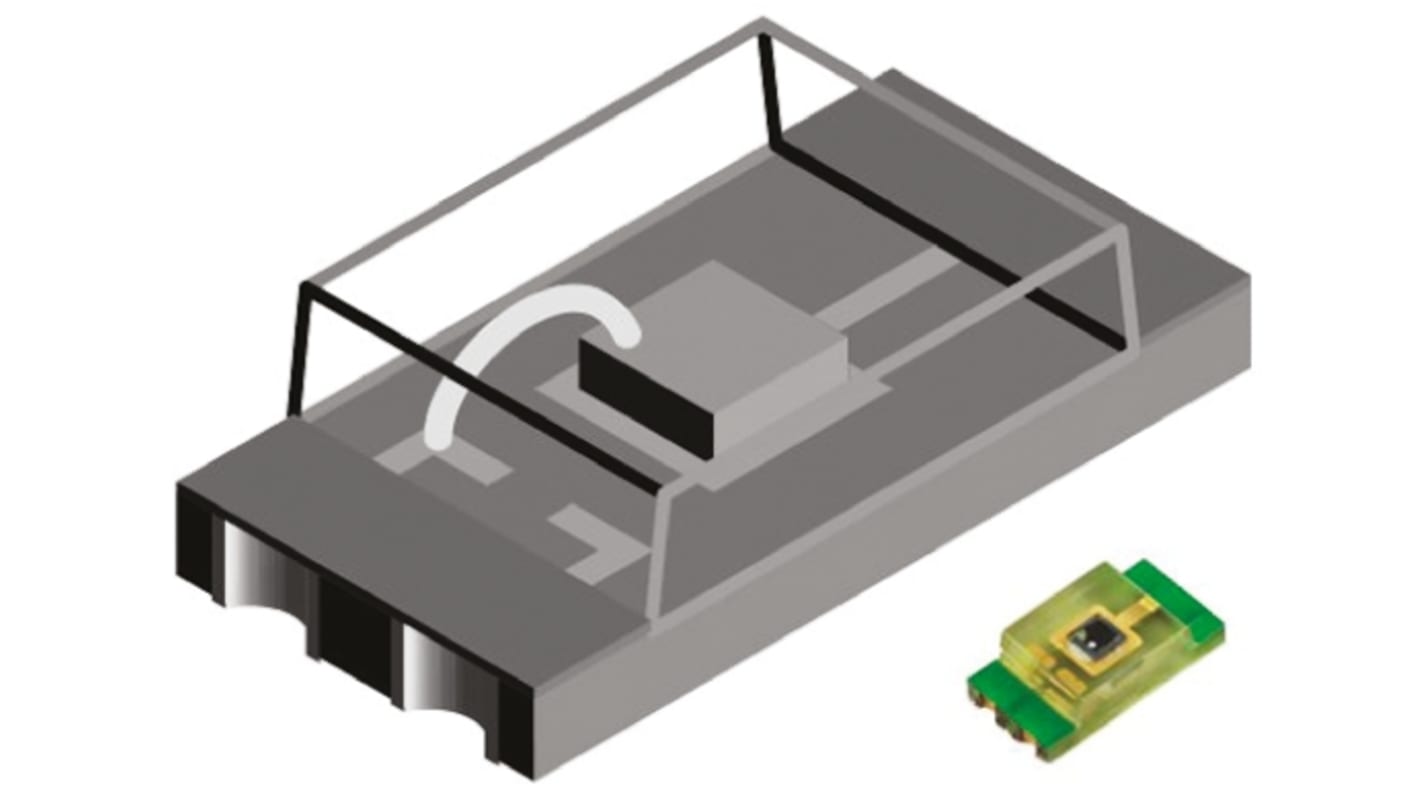

TEMT6000X01 Vishay, ±60 ° Visible Light Phototransistor, Surface Mount 3-Pin 1206 package

This image is representative of the product range

Temporarily out of stock - back order for despatch 31/05/2024, delivery within 4 working days from despatch date

Added

Price Each (On a Reel of 3000)

MYR2.499

Units	Per Unit	Per Reel*
3000 - 12000	MYR2.499	MYR7,497.00
15000 +	MYR2.249	MYR6,747.00
*price indicative

RS Stock No.:: 165-2772
Mfr. Part No.:: TEMT6000X01
Manufacturer:: Vishay

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

TEMT6000 Series Ambient Light Sensors

Vishay Semiconductors' TEMT6000 series is a family of ambient light sensors. They consist of a NPN epitaxial planar phototransistor within a transparent package. Their compact, surface mount (SMD) package has the standard 1206 footprint. The TEMT6000 is sensitive to visible light, comparable to the responsivity of the human eye. Suitable applications for the TEMT6000 ambient light sensor include; automotive, mobile phones, notebooks, cameras and dashboards.

Features of the TEMT6000 ambient light sensor:
1206 footprint
Dimensions: 4 x 2 x 1.05 mm
High photo sensitivity
Peak sensitivity: 570nm
Angle of half intensity: 60°

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Ambient Light Sensors, Vishay Semiconductor

Specifications

Attribute	Value
Spectrums Detected	Visible Light
Number of Channels	1
Maximum Light Current	50µA
Maximum Dark Current	50nA
Angle of Half Sensitivity	±60 °
Number of Pins	3
Mounting Type	Surface Mount
Package Type	1206
Dimensions	4 x 2 x 1.05mm
Collector Current	20mA
Maximum Wavelength Detected	800nm
Spectral Range of Sensitivity	440 → 800 nm
Minimum Wavelength Detected	440nm
Automotive Standard	AEC-Q101
Width	2mm
Height	1.05mm
Length	4mm
