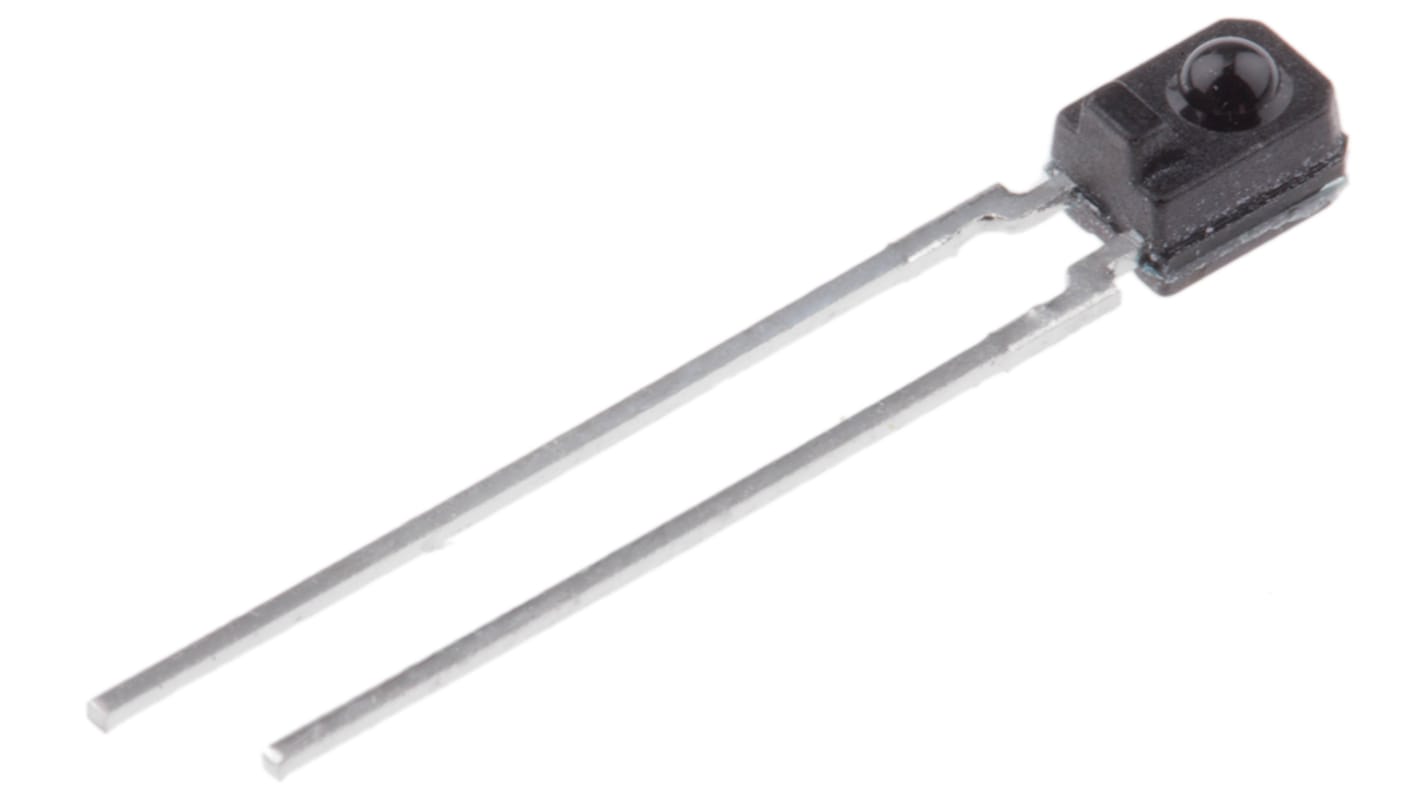

Sharp PT480FE0000F 26 ° Phototransistor, Through Hole 2-Pin Side Looker package

  • RS Stock No. 315-860
  • Mfr. Part No. PT480FE0000F
  • Manufacturer Sharp
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

PT480 Series Phototransistors

The PT480 family, from Sharp, are a family of narrow acceptance phototransistors. They are in side looking (SL) epoxy resin packages with a domed lens on the side of the package. The PT480F devices have a black plastic package which offers a daylight blocking filter while the PT480 has a clear lens for visible and near IR radiation.

Features of the PT480 phototransistors:
Side looking (SL) package
Through-hole mounting
Clear or black plastic package

IR Phototransistors, Sharp

Specifications
Attribute Value
Typical Fall Time 3500ns
Typical Rise Time 3000ns
Number of Channels 1
Maximum Light Current 3000µA
Maximum Dark Current 100nA
Angle of Half Sensitivity 26 °
Polarity NPN
Number of Pins 2
Mounting Type Through Hole
Package Type Side Looker
Dimensions 3 x 2.95 x 4mm
Collector Current 20mA
Length 3mm
Height 4mm
Width 2.95mm
Minimum Wavelength Detected 860nm
632 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2.57
units
Per unit
1 +
MYR2.57
