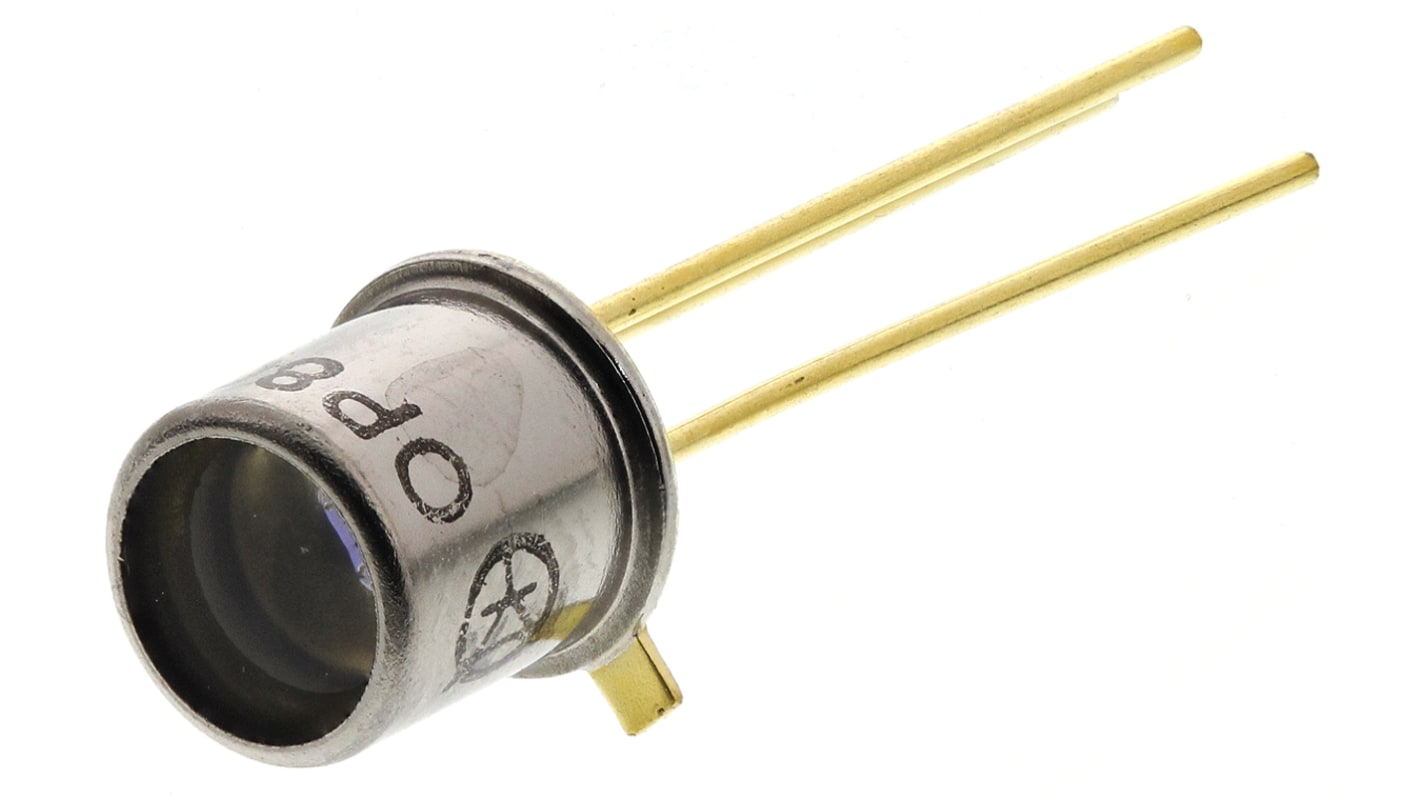

OP802WSL Optek, IR Phototransistor, Through Hole 3-Pin TO-18 package

  • RS Stock No. 195-271
  • Mfr. Part No. OP802WSL
  • Manufacturer Optek
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

OP800WSL, OP801WSL and OP802WSL Series Phototransistors

This family of NPN silicon phototransistors, from Optek Technology Inc., are hermetically sealed devices. They are in standard TO-18 metal can packages which enable high power dissipation and make them suitable for applications in harsh environments.

Features of the OP800WSL, OP801WSL and OP802WSL phototransistors:
TO-18 metal can package
Hermetically sealed
Through-hole mounting
Wide receiving angle
Range of different sensitivities
Operating temperature: -65 to +125 °C

IR Phototransistors, Optek

Specifications
Attribute Value
Spectrums Detected Infrared
Typical Fall Time 7µs
Typical Rise Time 7µs
Number of Channels 1
Maximum Light Current 3000µA
Maximum Dark Current 100nA
Polarity NPN
Number of Pins 3
Mounting Type Through Hole
Package Type TO-18
Dimensions 5.84 x 5.84 x 5.13mm
Collector Current 50mA
Length 5.84mm
Height 5.13mm
Width 5.84mm
45 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 10.18
units
Per unit
1 - 9
MYR10.18
10 - 49
MYR9.87
50 - 99
MYR9.58
100 - 249
MYR9.29
250 +
MYR9.01
