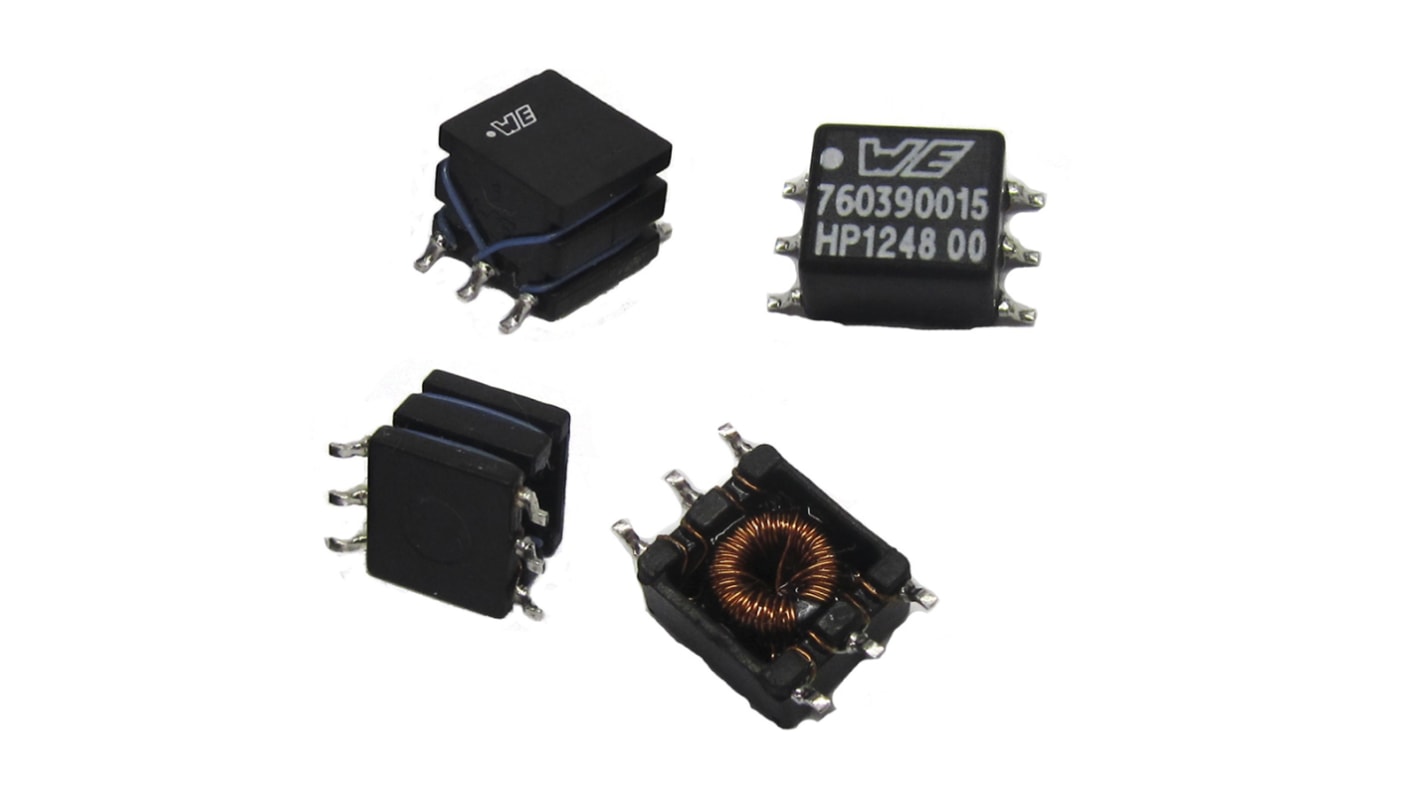

Wurth Elektronik 3.3V 1 Output Surface Mount PCB Transformer

RS Stock No.:: 182-8951
Mfr. Part No.:: 750316028
Manufacturer:: Wurth Elektronik

Wurth Elektronik 3.3V 1 Output Surface Mount PCB Transformer

5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (On a Tape of 5)

MYR21.198

Units	Per Unit	Per Tape*
5 - 220	MYR21.198	MYR105.99
225 - 445	MYR20.13	MYR100.65
450 +	MYR18.862	MYR94.31
*price indicative

RS Stock No.:: 182-8951
Mfr. Part No.:: 750316028
Manufacturer:: Wurth Elektronik

Technical data sheets

Datasheet 750316028

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

MID-PPTI Push-Pull Transformers for Texas Instruments

Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Functional, supplementary or reinforced insulation
Applications
Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Secondary Voltage Rating	3.3V
Primary Voltage Rating	3.3V dc
Number of Outputs	1
Length	9.25mm
Width	4.1mm
Depth	8.3mm
Dimensions	9.25 x 4.1 x 8.3mm
Mounting Type	Surface Mount
Minimum Temperature	-40°C
Maximum Temperature	+125°C
Maximum Operating Frequency	400kHz
