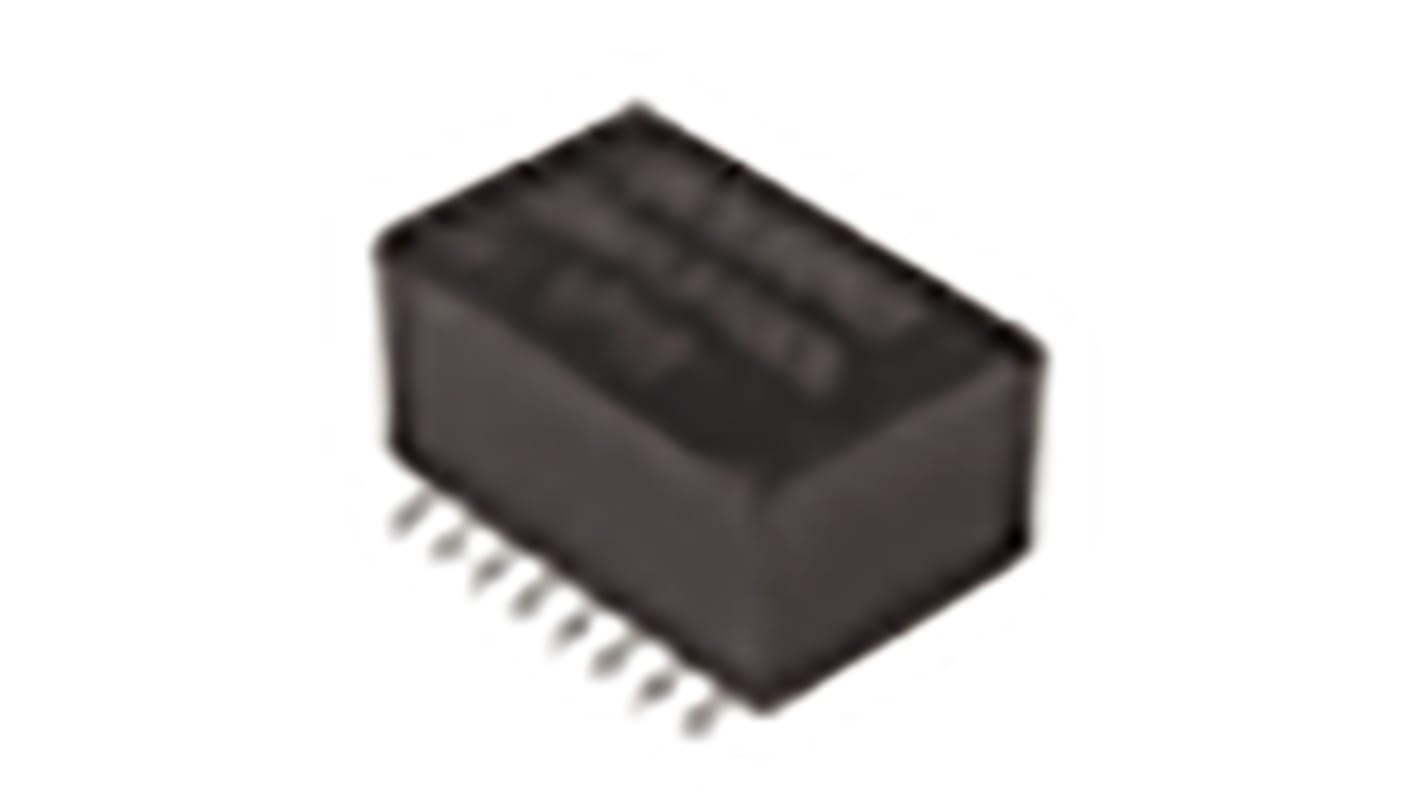

1 Output Surface Mount PCB Transformer

  • RS Stock No. 179-7867
  • Mfr. Part No. SM13100EL
  • Manufacturer Bourns
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Supplemental insulation
250 Vrms working voltage
4000 Vrms isolation voltage
Expanded temperature range:
-40 to +85 C
Operating altitude upto 4 km
Applications:
Industrial ethernet controls
Ethernet home appliances
Medical equipment

Specifications
Attribute Value
Number of Outputs 1
Length 24.15mm
Width 15.5mm
Depth 12.8mm
Dimensions 24.15 x 15.5 x 12.8mm
Mounting Type Surface Mount
Minimum Temperature -40°C
Maximum Temperature +85°C
Minimum Operating Frequency 30MHz
Maximum Operating Frequency 100MHz
Temporarily out of stock - back order for despatch 27/05/2020, delivery within 4 working days from despatch date
Price Each (On a Reel of 160)
MYR 13.70
units
Per unit
Per Reel*
160 - 160
MYR13.70
MYR2,192.00
320 +
MYR12.466
MYR1,994.56
*price indicative
