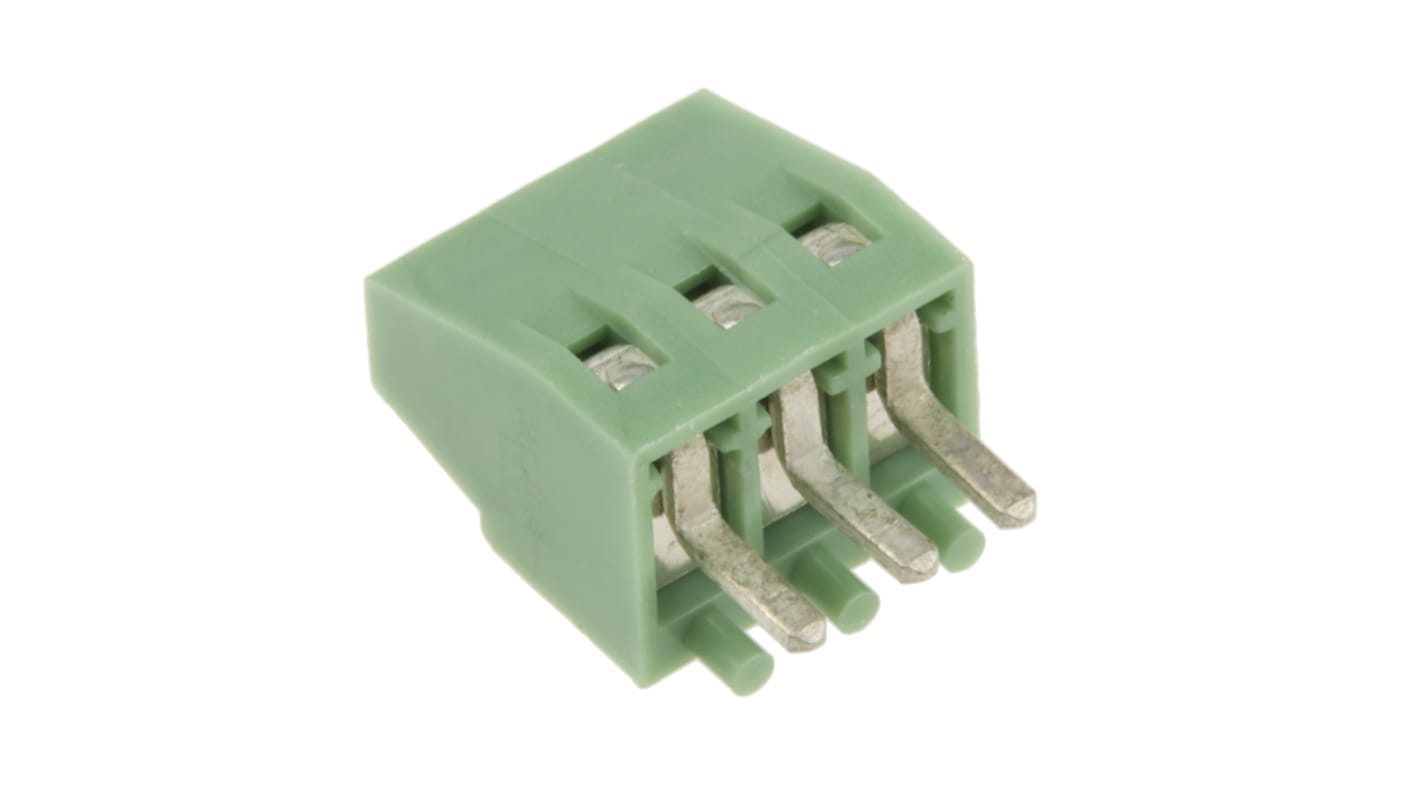

RS PRO, 3 Way PCB Terminal Strip

  • RS Stock No. 790-1092
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

2.54 mm Pitch Cage Clamp PCB Terminal Blocks

A range of 2.54 mm Pitch PCB Terminal Blocks with Screw cage clamp termination method. These 2.54 mm Pitch PCB Terminal Blocks have rectangular Tin plated PC tails which are 0.9x0.5 mm by 3.5 mm long.

Various positions available.

Specifications
Attribute Value
Number of Contacts 3
Pitch 2.54mm
Number of Rows 1
Mounting Type Through Hole
Gender Female
Termination Method Screw
Type PCB Terminal Block
Current Rating 6A
Body Orientation Straight
Colour Green
Voltage Rating 125 V
Material Polyamide
Width 5.54mm
Length 7.62mm
Depth 6.2mm
1720 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 3.76
units
Per unit
Per Pack*
5 - 1870
MYR3.76
MYR18.80
1875 - 6245
MYR3.572
MYR17.86
6250 - 12495
MYR3.478
MYR17.39
12500 - 24995
MYR3.272
MYR16.36
25000 +
MYR3.044
MYR15.22
*price indicative
