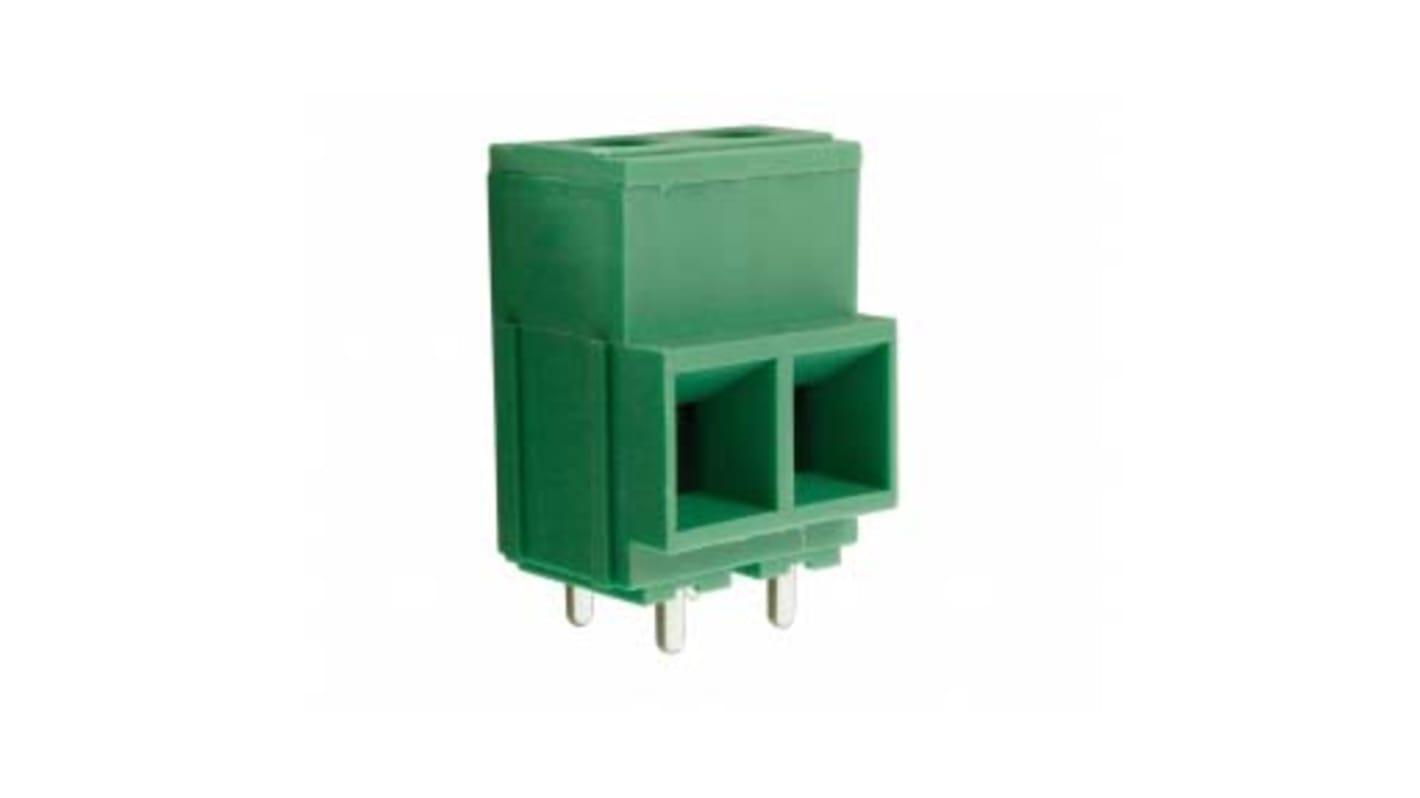

RS PRO PCB Terminal Block, 2-Contact, 10.16mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS Stock No.:
- 146-8251
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 02/10/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Box of 1000)
MYR6.916
| Units | Per Unit | Per Box* |
| 1000 - 4000 | MYR6.916 | MYR6,916.00 |
| 5000 + | MYR6.224 | MYR6,224.00 |
| *price indicative | ||
- RS Stock No.:
- 146-8251
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
2 & 3 pole double interlocking mechanism for increased strength
Captive screws
Moulded in green UL94-V0 flame retardant PA66
Professional rising clamp terminals
10mm2 (20-6AWG)
UL & VDE approved
Captive screws
Moulded in green UL94-V0 flame retardant PA66
Professional rising clamp terminals
10mm2 (20-6AWG)
UL & VDE approved
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 2 |
| Pitch | 10.16mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 52A |
| Body Orientation | Vertical |
| Colour | Green |
| Voltage Rating | 750 V |
| Series | CTBP77VP |
| Width | 18.7mm |
| Depth | 29.6mm |
| Material | Nylon 66 |
| Length | 20.3mm |
