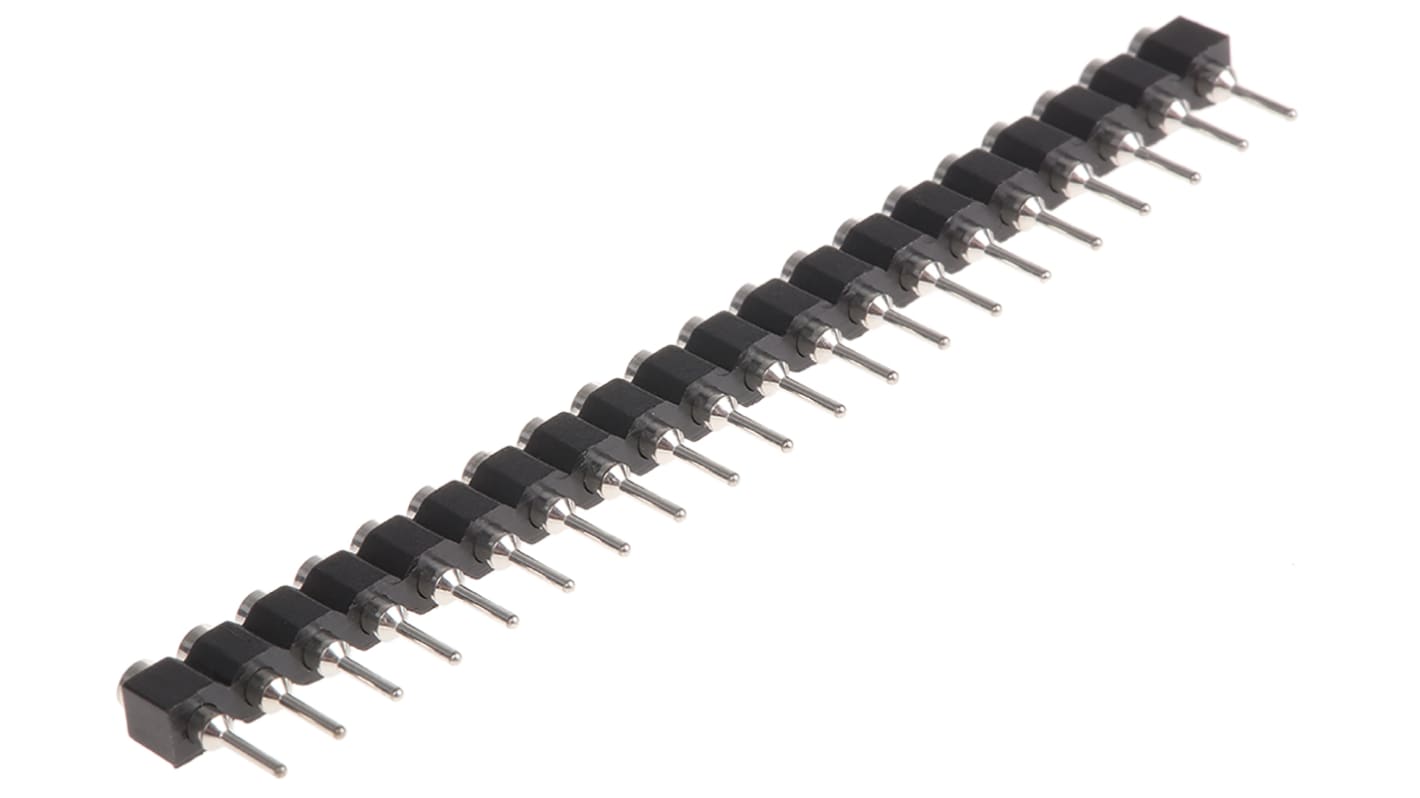

E-TEC SIB Series 2.54mm Pitch 20 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination

  • RS Stock No. 600-7748
  • Mfr. Part No. SIB-120-S001-95
  • Manufacturer E-TEC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Divisible strips

Divisible strips featuring tin-plated contacts with gold-plated tulips.
Available in 20 and 32-contact solder or wrap versions.

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Number of Contacts 20
Number of Rows 1
Pitch 2.54mm
Type Wire to Board
Mounting Type Through Hole
Body Orientation Straight
Termination Method Solder
Series SIB
80 Within 4 working day(s) (Global stock)
220 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 20)
MYR 5.03
units
Per unit
Per Pack*
20 - 480
MYR5.03
MYR100.60
500 - 1480
MYR4.527
MYR90.54
1500 - 3980
MYR4.024
MYR80.48
4000 - 7980
MYR3.522
MYR70.44
8000 +
MYR3.269
MYR65.38
*price indicative
