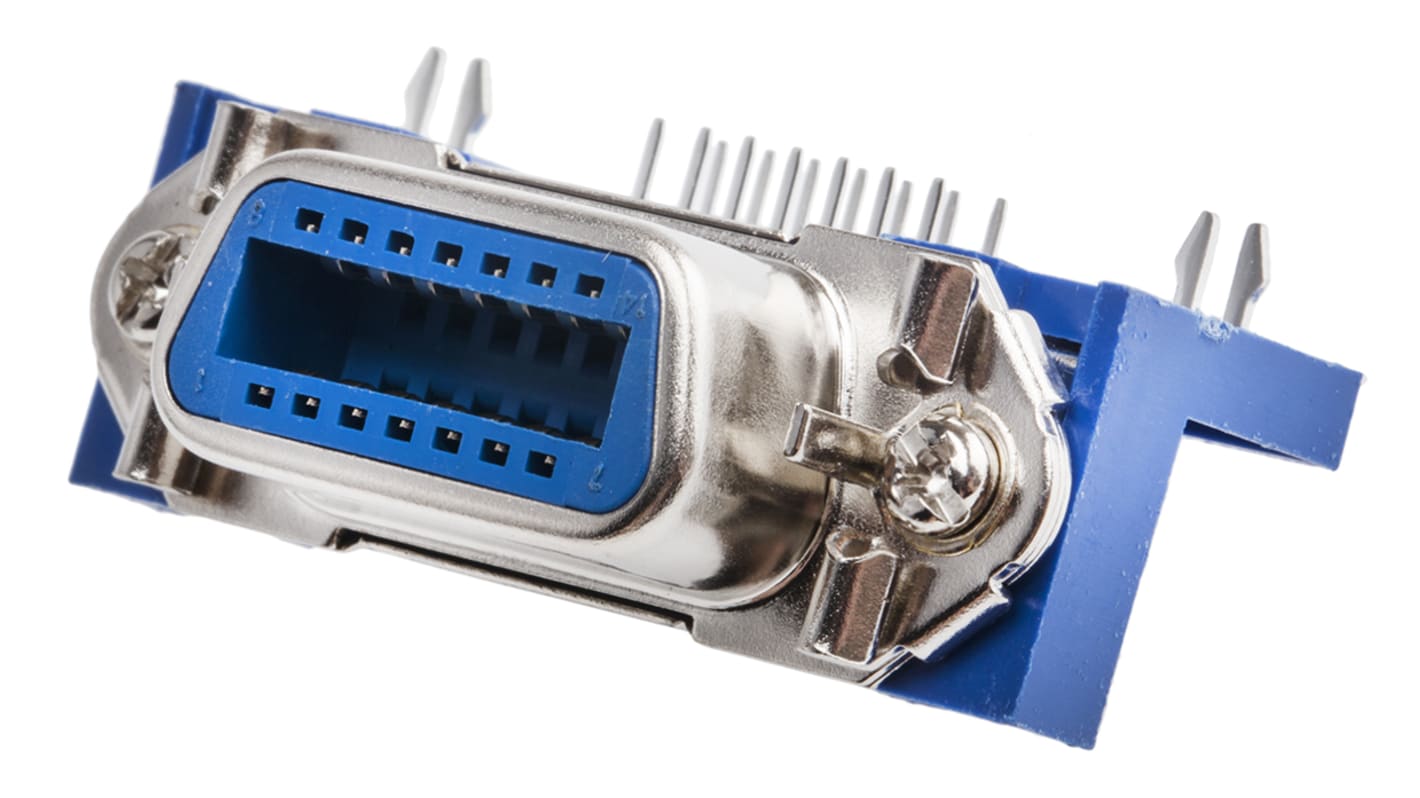

RS PRO Centronics Series 2.16mm Pitch 14 Way Right Angle PCB Socket, Through Hole, Solder Termination

  • RS Stock No. 239-1156
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

90° PCB Mounting Sockets

Right-angle mounted socket with tin-plated solder pin terminations. Supplied complete with spring clips for retention of RS cable mounting plugs.

//media.rs-online.com/t_line/LF239110-01.gif

Standards

IEEE 428

Specifications
Attribute Value
Number of Contacts 14
Pitch 2.16mm
Mounting Type Through Hole
Body Orientation Right Angle
Termination Method Solder
Current Rating 1A
Series Centronics
Contact Material Brass
90 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 15.57
units
Per unit
1 - 24
MYR15.57
25 - 74
MYR14.75
75 - 199
MYR14.01
200 - 399
MYR13.36
400 +
MYR12.84
