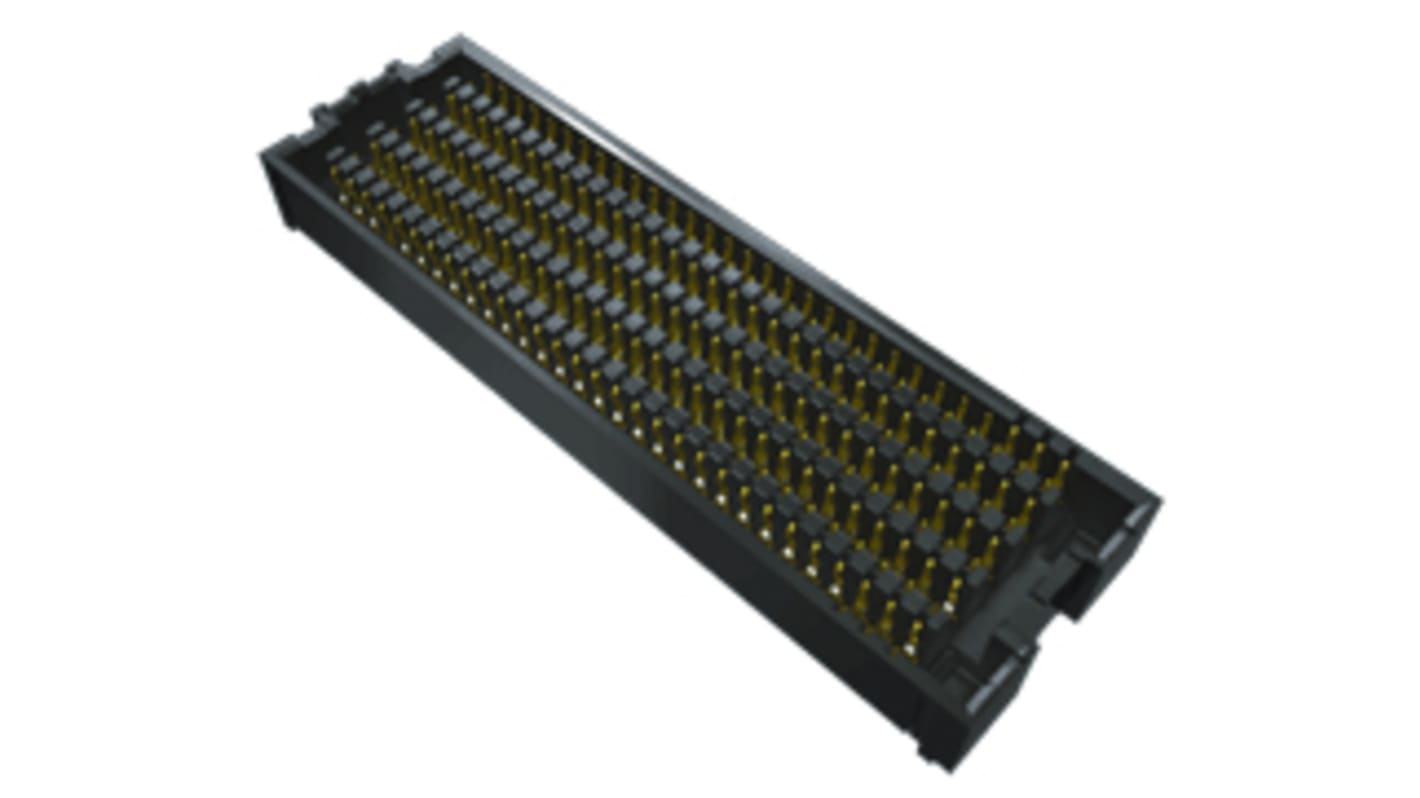

Samtec SEAF Series 1.27mm Pitch 500 Way 10 Row Vertical PCB Socket, Surface Mount, Solder Termination

  • RS Stock No. 159-1344
  • Mfr. Part No. SEAF-50-05.0-S-10-2-A-K-TR
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

This open pin field array socket features a 1.27 mm x 1.27 mm pitch grid with up to 500 total I/Os. The rugged Edge Rate® contact system is signal integrity optimized with solder charged terminations for ease of processing. SEAF is a 28+ Gbps performance interconnect with low insertion/extraction forces and stack heights from 7 mm to 17.5 mm.

Up to 500 I/Os
.050" (1.27 mm) pitch
Rugged Edge Rate® contact
Lower insertion/withdrawal forces
Solder charge termination
7 mm - 17.5 mm stack heights
Dual sourced by Molex®
Samtec 28+ Gbps Solution

Specifications
Attribute Value
Number of Contacts 500
Number of Rows 10
Pitch 1.27mm
Type Board to Board
Mounting Type Surface Mount
Body Orientation Vertical
Termination Method Solder
Stacking Height 7mm
Current Rating 1.8A
Voltage Rating 240 V ac
Series SEAF
Contact Material Copper Alloy
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 140.66
units
Per unit
1 - 4
MYR140.66
5 - 9
MYR136.50
10 - 19
MYR128.88
20 - 49
MYR122.14
50 +
MYR118.99
