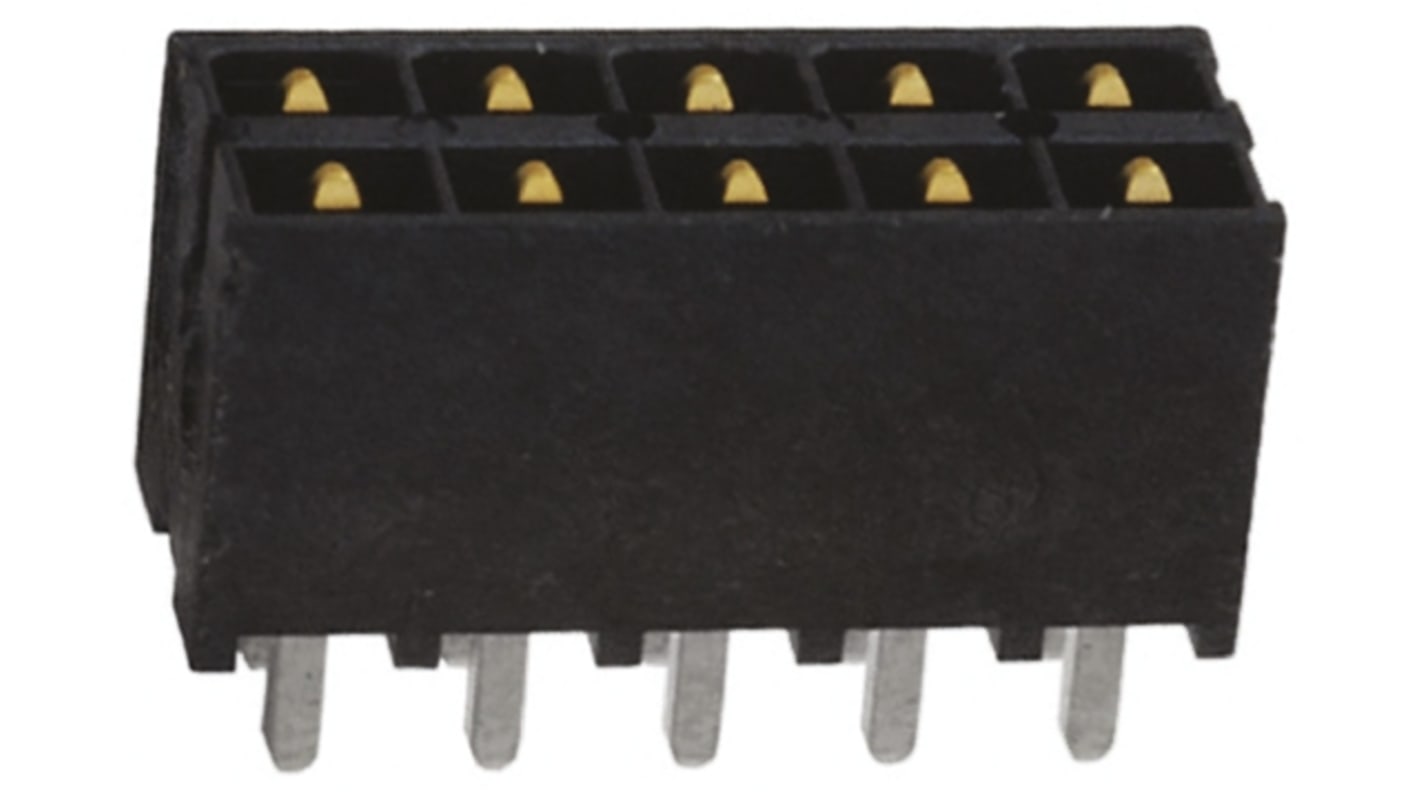

Samtec IPT1 Mini Mate, 10 Way, 2 Row, Straight PCB Header

  • RS Stock No. 767-6862
  • Mfr. Part No. IPT1-105-01-L-D
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Shrouded 2.54mm PCB Isolated Power Terminals - IPT1 Series

IPT1 series Mini Mate® board to board shrouded PCB isolated power header terminals with a 2.54mm pitch and a height of 11.05mm when mated. These IPT1 series board to board PCB isolated power headers have a double row of Rugged™ individually shrouded 0.25μm gold plated phosphor bronze contacts set inside a black glass LCP insulator. The temperature range at which these IPT1 series board-to-board through hole power header terminals can be used is -55 to +125°C with a maximum power rating of 9A at an ambient temperature of 20°C.
Part numbers IPT1-1XX-01-L-D are straight through hole mount
Part numbers IPT1-1XX-01-L-D-RA are right angle through hole mount


These board to board shrouded PCB power header terminals mate with the IPS1 series shrouded PCB power sockets - see stock number 767-6840 typically.

Samtec 2.54mm Power Terminals and Sockets

Attribute Value
Series IPT1 Mini Mate
Pitch 2.54mm
Number of Contacts 10
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Board to Board
Termination Method Solder
Contact Material Phosphor Bronze
Contact Plating Gold
Current Rating 9A
