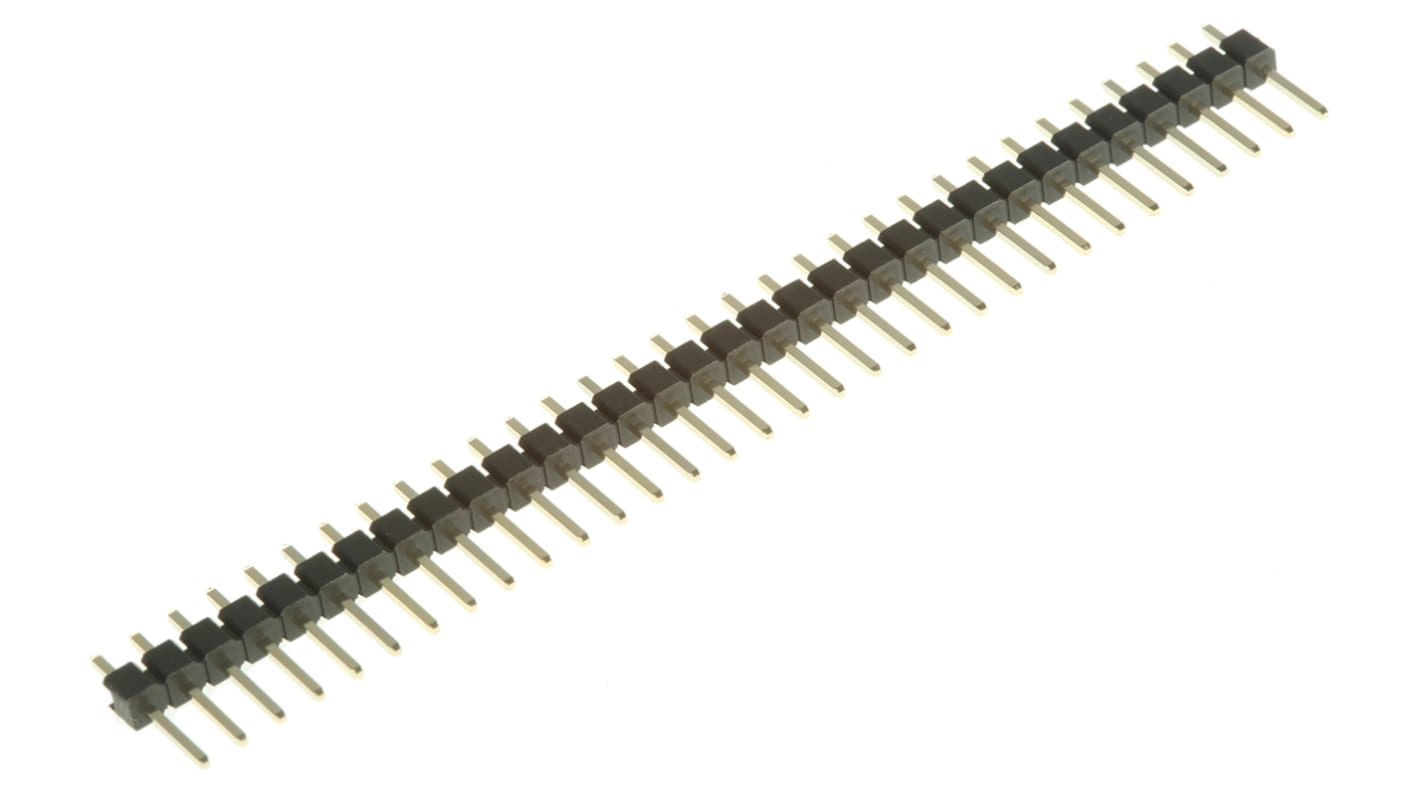

Wurth Elektronik, WR-PHD, 32 Way, 1 Row, Straight Pin Header

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wurth WR-PHD Series 2.54mm Pin Header Connectors

WR-PHD series PCB mount pin header connectors with a 2.54mm pitch. These board to board PCB mount pin headers have a black UL94-V0 PBT insulator and stamped gold plated copper alloy contacts.

2.54mm Wurth WR-PHD Range

The Wurth WR-PHD Series is a range of Board to Board connectors.

Specifications
Attribute Value
Series WR-PHD
Pitch 2.54mm
Number of Contacts 32
Number of Rows 1
Body Orientation Straight
Shrouded/Unshrouded Unshrouded
Mounting Type Through Hole
Connector System Board to Board
Termination Method Solder
Contact Material Copper Alloy
Current Rating 3A
235 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 8.51
units
Per unit
Per Pack*
5 - 120
MYR8.51
MYR42.55
125 - 495
MYR8.212
MYR41.06
500 - 2495
MYR7.904
MYR39.52
2500 - 4995
MYR7.398
MYR36.99
5000 +
MYR7.052
MYR35.26
*price indicative
