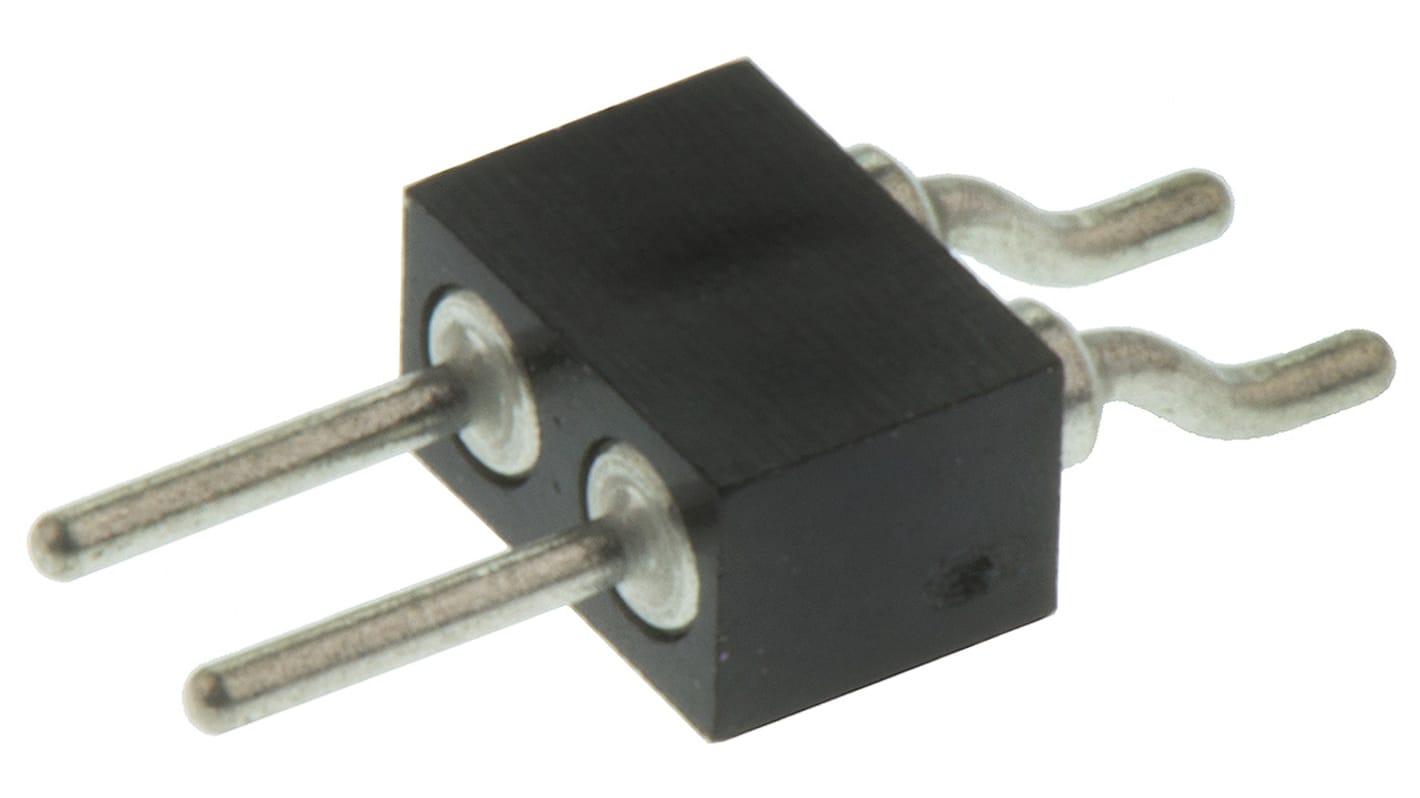

Preci-Dip Right Angle Surface Mount Pin Header, 2 Contact(s), 2.0mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 701-9461
- Mfr. Part No.:
- 830-80-002-40-001101
- Manufacturer:
- Preci-Dip
1100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR1.91
| Units | Per Unit | Per Pack* |
| 5 - 120 | MYR1.91 | MYR9.55 |
| 125 - 370 | MYR1.854 | MYR9.27 |
| 375 - 995 | MYR1.798 | MYR8.99 |
| 1000 - 1995 | MYR1.76 | MYR8.80 |
| 2000 + | MYR1.718 | MYR8.59 |
| *price indicative | ||
- RS Stock No.:
- 701-9461
- Mfr. Part No.:
- 830-80-002-40-001101
- Manufacturer:
- Preci-Dip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
2 mm IC Socket Connectors Ø 0.47 mm pin
These Swiss Preci-dip IC Hard Metric PCB Socket Connectors are solder tail Through Hole or SMD headers.
The straight Through Hole headers have a Tail length of 2.9 mm
The 90 ° Through Hole headers have a Tail length of 3.2 mm
The SMD mounting headers are Gull-Wing type
The Parallel SMD mounting headers are cranked pin type
All have Brass Tin plated terminations
The 90 ° Through Hole headers have a Tail length of 3.2 mm
The SMD mounting headers are Gull-Wing type
The Parallel SMD mounting headers are cranked pin type
All have Brass Tin plated terminations
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Pitch | 2.0mm |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 3.0A |
| Voltage Rating | 100 V ac, 150 V dc |
| Gender | Male |
