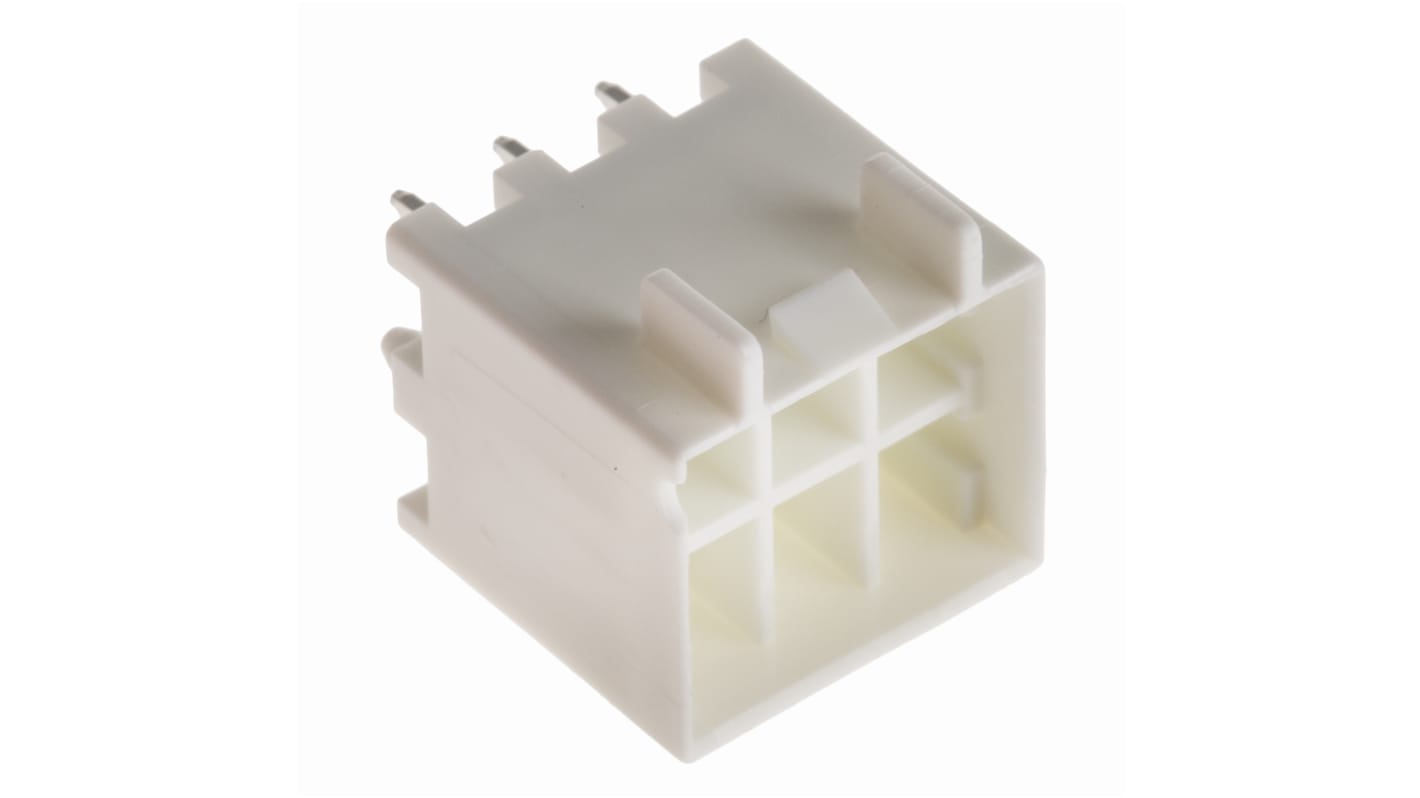

Hirose DF33C, 6 Way, 2 Row, Straight PCB Header

  • RS Stock No. 111-3925
  • Mfr. Part No. DF33C-6DP-3.3DSA(24)
  • Manufacturer Hirose
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Hirose EnerBee DF33C Series 3.3 mm PCB Header Connectors

These DF33C Series 3.3 mm wire to board small power supply header connectors are the smallest connector in the EnerBee range. The DF33C series has a maximum current capacity of 5A when used with 20 AWG wire. The housings of these DF33C headers feature a robust positive locking mechanism which is designed to prevent accidental unmating caused by drops or external shocks. When mated, a clear, tactile click is produced which confirms the connector is fully engaged guaranteeing a complete electrical and mechanical connection. This positive locking mechanism also meets the various requirements of industrial power supply and power sources. The contacts of these DF33C connectors are are separated by walls inside the housing enabling them to be independent of one another and preventing short circuits. These DF33C 3.3 mm header connectors feature guide posts that help with accurate placement and orientation on the PCB. The housing material of the DF33C headers contains a glass filled resin to decrease thermal shrinkage and prevent solder cracking. These DF33C header connectors accept resin sealing up to 6.5 mm high from the board surface without any effect on their performance. This sealing offers protection against dust and moisture penetration.

Features and Benefits

Compact design with high-power capability of 5A
Secure positive locking mechanism with tactile click
Individually ’boxed’ contacts to prevent short circuits
Supports resin sealing up to 6.5 mm for protection against dust and moisture
Glass filled resin in housing material to prevent solder cracking
Meet 1.5mm creepage distance as stipulated by the Electrical Appliance and Material Safety Act
Glow Wire compliant

Applications

These Enerbee DF33C connectors are widely used as a compact connector for internal power supplies. Applications include: LED lighting, office equipment, medical devices, robotics, home appliances, industrial controllers, smart meters, IT home appliances as well as many others

The EnerBee Brand

The EnerBee name represents the concept of high-end, superior performance in a compact size like the small yet busy bee! The EnerBee range of connectors provide technically advanced connectivity solutions for a wide range of applications and are able to work with high current and high tension devices. The compact size allows space saving to be maximised and offers an alternative to other bulky parts that are on the market. The EnerBee's built-in lock mechanism replaces terminal locks improving both assembly quality and work efficiency.

Standards

Glow Wire Compliance (Compliant with IEC 60695-2-11)

Hirose EnerBee DF33C 3.3mm Series

Specifications
Attribute Value
Series DF33C
Pitch 3.3mm
Number of Contacts 6
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Type Wire to Board
Contact Material Brass
Contact Plating Tin
Voltage Rating 500 V ac/dc
Current Rating 5A
30 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 1.46
units
Per unit
Per Pack*
10 - 490
MYR1.46
MYR14.60
500 - 990
MYR1.419
MYR14.19
1000 - 1990
MYR1.255
MYR12.55
2000 - 4990
MYR1.152
MYR11.52
5000 +
MYR0.843
MYR8.43
*price indicative
