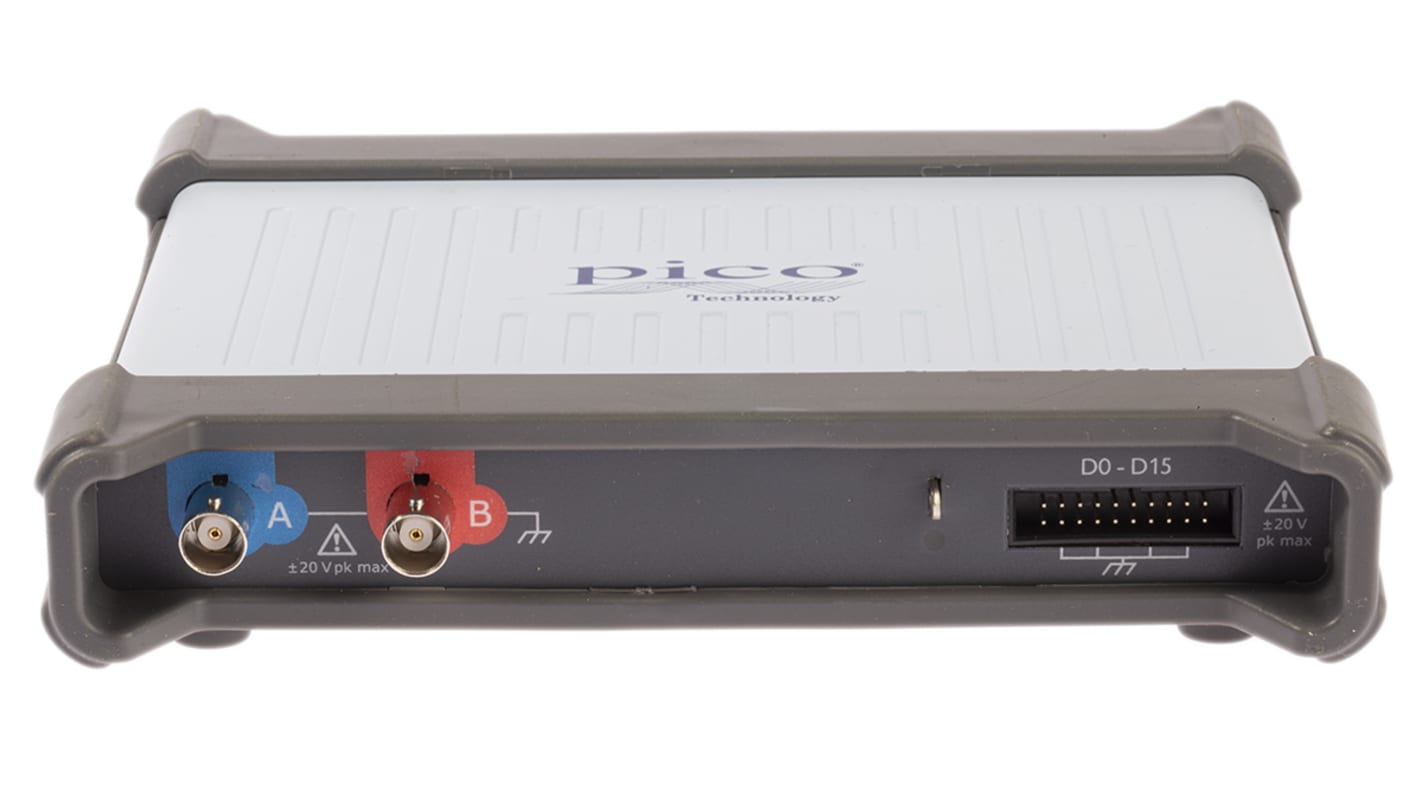

Pico Technology 5242D MSO PicoScope 5000D Series Digital PC Based Oscilloscope, 2 Analogue Channels, 60MHz, 16 Digital
- RS Stock No.:
- 174-9595
- Mfr. Part No.:
- PicoScope 5242D MSO
- Manufacturer:
- Pico Technology
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR7,781.13
| Units | Per Unit |
| 1 + | MYR7,781.13 |
- RS Stock No.:
- 174-9595
- Mfr. Part No.:
- PicoScope 5242D MSO
- Manufacturer:
- Pico Technology
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
PicoScope Bench MSO Oscilloscope
The PicoScope 5000D 60MHz series bench MSO oscilloscope has all the features that we can find in the highly advanced bench-type oscilloscopes. This oscilloscope is a powerful and versatile device with high speed, resolution and sampling rates. It has multi-instrument and measurement capabilities, therefore proves to be an excellent tool. It has breakthrough ADC technology switches from 8 to 16 bits in the same oscilloscope. It has two different independent channels.
Features and Benefits
• Intuitive user interface
• Flexible hardware resolution, from 8 to 16 bits
• Large analogue bandwidth of 200MHz
• High sampling rate of 1GS/s at 8 bit resolution
• High sampling rate of 500MS/s at 12 bit resolution
• High sampling rate of 62.5MS/s at 16 bit resolution
• Large buffer memory 512MS
• 100,000wfms/s
• 200MS/s arbitrary waveform generator
• Serial decoding and mask testing
• Compatible with different operating systems like Windows, Linux and Mac
• Flexible hardware resolution, from 8 to 16 bits
• Large analogue bandwidth of 200MHz
• High sampling rate of 1GS/s at 8 bit resolution
• High sampling rate of 500MS/s at 12 bit resolution
• High sampling rate of 62.5MS/s at 16 bit resolution
• Large buffer memory 512MS
• 100,000wfms/s
• 200MS/s arbitrary waveform generator
• Serial decoding and mask testing
• Compatible with different operating systems like Windows, Linux and Mac
Applications
• Educational laboratories
• Electronics troubleshooting and measurement
• Embedded electronics
• Mixed signal and video designing
• Automotive electronics
• Electronics troubleshooting and measurement
• Embedded electronics
• Mixed signal and video designing
• Automotive electronics
Specifications
Attribute | Value |
|---|---|
| Number of Analogue Channels | 2 |
| Bandwidth | 60MHz |
| Number of Digital Channels | 16 |
| Digital/Analogue | Digital |
| Oscilloscope Form | Mixed Signal |
| Oscilloscope Type | PC Based |
| Series | PicoScope 5000D |
| Power Source | USB |
| Interface | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Minimum Vertical Sensitivity | 2mV/div |
| Maximum Vertical Sensitivity | 4V/div |
| Minimum Time Base | 1ns/div |
| Sample Rate Random | 2.5 Gsps |
| Weight | 0.5kg |
| Vertical Resolution | 16 bit |
| Maximum Time Base | 5000s/div |
| Dimensions | 190 x 170 x 40mm |
| Rise Time | 5.8ns |
