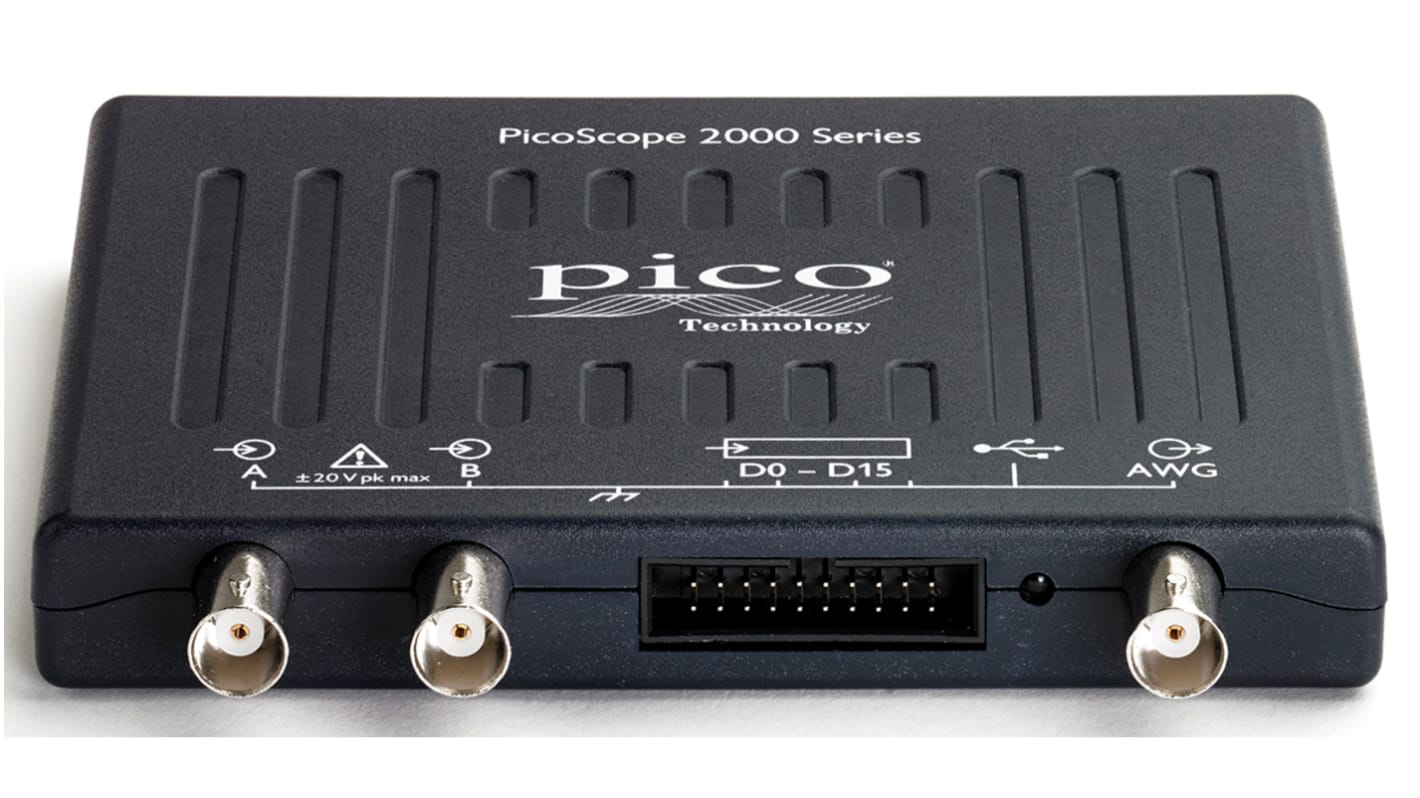

Pico Technology PQ011 PicoScope 2000 Series Digital PC Based Oscilloscope, 2 Analogue Channels, 100MHz, 16 Digital
- RS Stock No.:
- 111-6770
- Mfr. Part No.:
- PicoScope 2208B MSO
- Manufacturer:
- Pico Technology
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR6,903.95
| Units | Per Unit |
| 1 + | MYR6,903.95 |
- RS Stock No.:
- 111-6770
- Mfr. Part No.:
- PicoScope 2208B MSO
- Manufacturer:
- Pico Technology
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Pico Technology Mixed Signal Oscilloscope
The Pico Technology 2000 series 100MHz mixed-signal oscilloscope functions as a 16-channel logic analyser. This product has 2 analogue and 16 digital channels. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. This oscilloscope also offers an excellent waveform visualisation and measurement with fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots.
Note:
Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10
Note:
Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10
32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10
32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www. Picotech. Com: PicoScope 6 (beta) for Linux and OS X
SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese
Czech
Danish
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Turkish. Extra and/or replacement probes, cable and test clips are available separately.
Supplied with
USB 2.0 cable
Passive probes (x2)
Digital input cable
Logic test clips (x20)
Quick start guide
Software and reference CD
Supplied with
USB 2.0 cable
Passive probes (x2)
Digital input cable
Logic test clips (x20)
Quick start guide
Software and reference CD
Features and Benefits
Input capacitance is 8pF
Sampling rate is 1GSa/s with 128MS buffer
Operating temperature ranges between 0oC and 50oC
Input impedance is 200Kohm
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Sampling rate is 1GSa/s with 128MS buffer
Operating temperature ranges between 0oC and 50oC
Input impedance is 200Kohm
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Applications
Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Certifications
EN 61010-1:2010
Specifications
Attribute | Value |
|---|---|
| Number of Analogue Channels | 2 |
| Number of Digital Channels | 16 |
| Digital/Analogue | Digital |
| Bandwidth | 100MHz |
| Oscilloscope Type | PC Based |
| Oscilloscope Form | Mixed Signal |
| Series | PicoScope 2000 |
| Interface | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Power Source | USB |
| Minimum Vertical Sensitivity | 4mV/div |
| Maximum Vertical Sensitivity | 4V/div |
| Minimum Time Base | 1ns/div |
| Sample Rate Random | 1 G samples/s |
| Maximum Time Base | 5000s/div |
| Weight | <200g |
| Input Impedance | 200 kΩ |
| Vertical Resolution | 8 bit |
| Input Capacitance | 8 pF |
| Dimensions | 130 x 104 x 18.8mm |
| Rise Time | 3.5ns |
