Pico Technology Oscilloscope Probe, Probe Type: Passive 350MHz

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

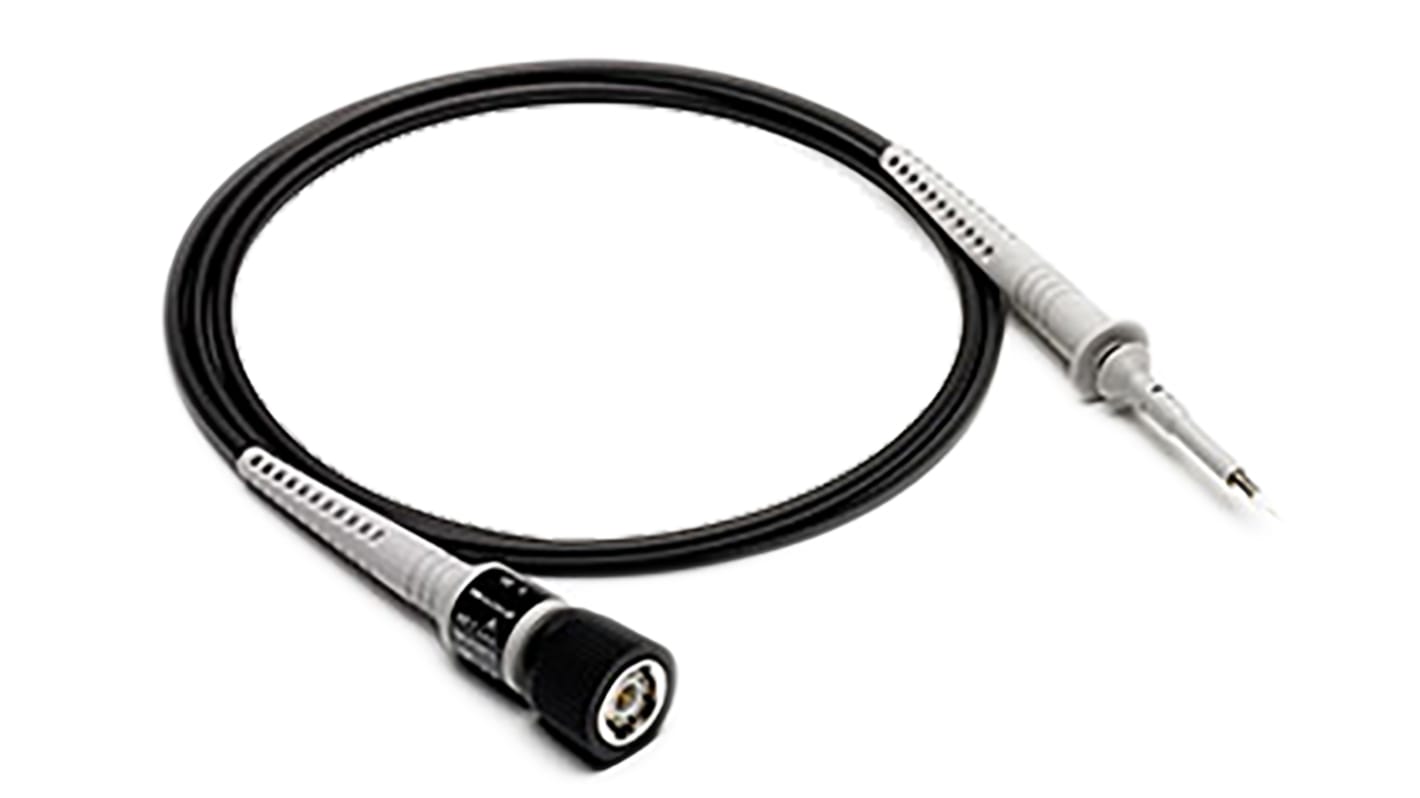

Pico 350MHz High Impedance Passive Probe TA150, 10:1 with BNC

Pico TA150 is a high-impedance passive probe with 350MHz bandwidth. It is designed for use with oscilloscopes with a 1MΩ input impedance and has a fixed attenuation of 10:1. The TA150 has been compensated to ensure optimal performance with the PicoScope 6402 and 6403 oscilloscopes. The compact design of this high-performance probe means there is only 2.5mm housing diameter at the probe tip compared to the conventional 5mm housing, making it easier to see the device under test and making it ideal for measurements of SMT components.

Resistance at probe tip 10MΩ
Capacitance at probe tip 9.5pF
Scope input impedance 1MΩ
Bandwidth (3dB) DC to 350MHz
Maximum working voltage 300 V RMS CAT II
Rise time (10% to 90%) 1ns
Compensation range 10 to 25 pF
Compatible with PicoScope PicoScope 6402A/B/C/D, 6403A/B/C/D
Cable length 1.3m

Supplied with

Coding rings (set) 3x4 colours; ground blade; ground lead 15cm; ground spring; insulating cap; sprung hook; trim tool.

Passive Oscilloscope Probes

Note

All the products in this range are supplied for use with instruments with a permanent earth connection.

Specifications
Attribute Value
Probe Type Passive
Attenuation 1:10
Bandwidth 350MHz
Connector Type BNC
Number of Probes 1
Safety Category Level CAT II
Rise Time 1ns
Temporarily out of stock - back order for despatch 11/12/2019, delivery within 4 working days from despatch date
Price Each
MYR 809.85
units
Per unit
1 +
MYR809.85
