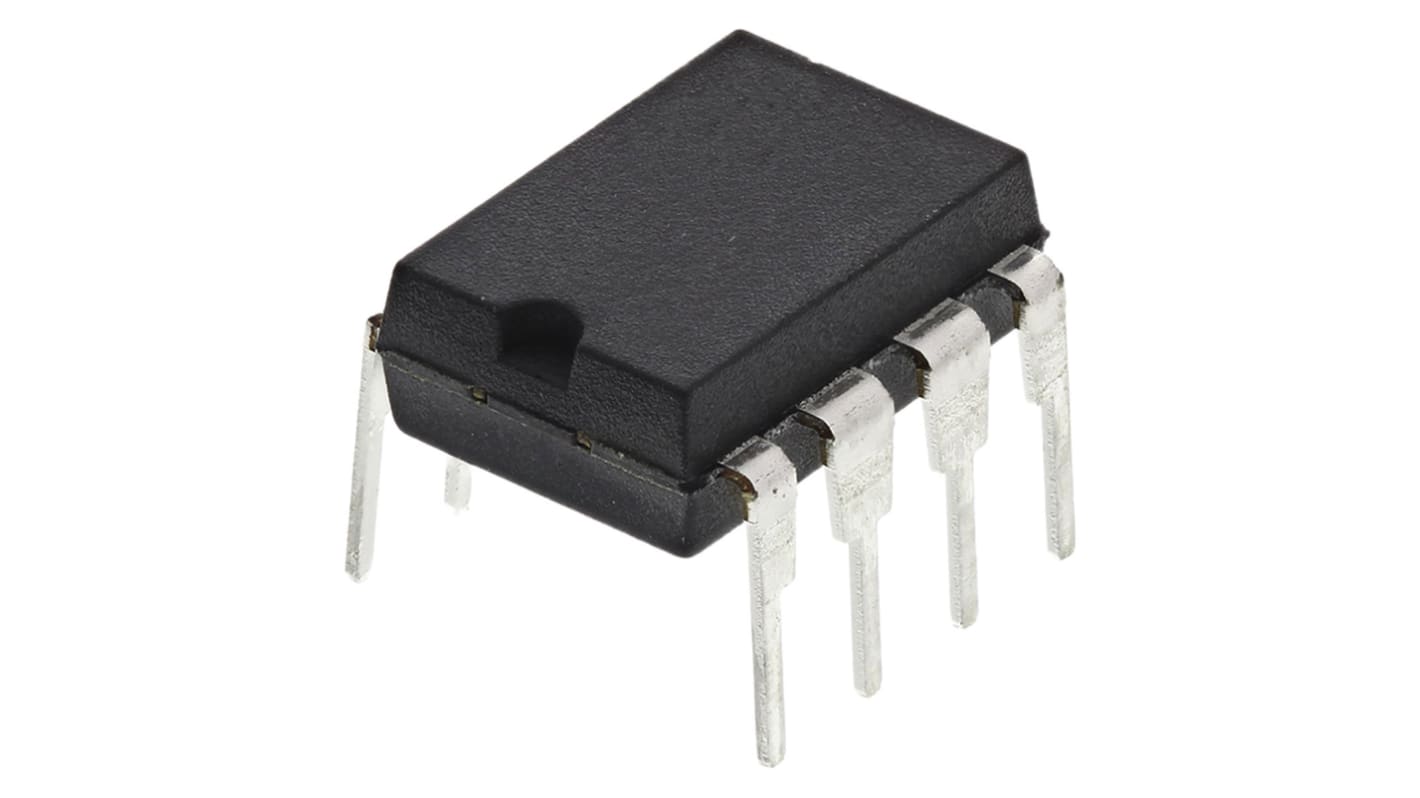

OP07CP Texas Instruments, Precision, Op Amp, 600kHz, 8-Pin PDIP

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Precision Operational Amplifiers, Texas Instruments

A range of precision operational amplifiers from Texas Instruments featuring low input offset voltage and low offset voltage drift with temperature. These devices exhibit stable and predictable operating characteristics which are essential in many demanding applications. CMOS and JFET input types also have extremely low input bias currents making them ideal for use in circuits where high values of resistance are required.

Specifications
Attribute Value
Amplifier Type Precision
Mounting Type Through Hole
Package Type PDIP
Power Supply Type Dual
Number of Channels per Chip 1
Pin Count 8
Typical Gain Bandwidth Product 600kHz
Typical Dual Supply Voltage ±12 V, ±15 V, ±5 V, ±9 V
Typical Slew Rate 0.3V/µs
Minimum Operating Temperature 0 °C
Maximum Operating Temperature +70 °C
Typical Voltage Gain 112 dB
Width 6.35mm
Length 9.81mm
Typical Input Voltage Noise Density 10.5nV/√Hz
Height 4.57mm
Dimensions 9.81 x 6.35 x 4.57mm
Rail to Rail No
650 In Global stock for delivery within 4 - 6 working days
Price Each (In a Tube of 50)
MYR 7.952
units
Per unit
Per Tube*
50 - 150
MYR7.952
MYR397.60
200 +
MYR7.852
MYR392.60
*price indicative
Due to temporarily constrained supply, RS is unable to accept backorders at this time
