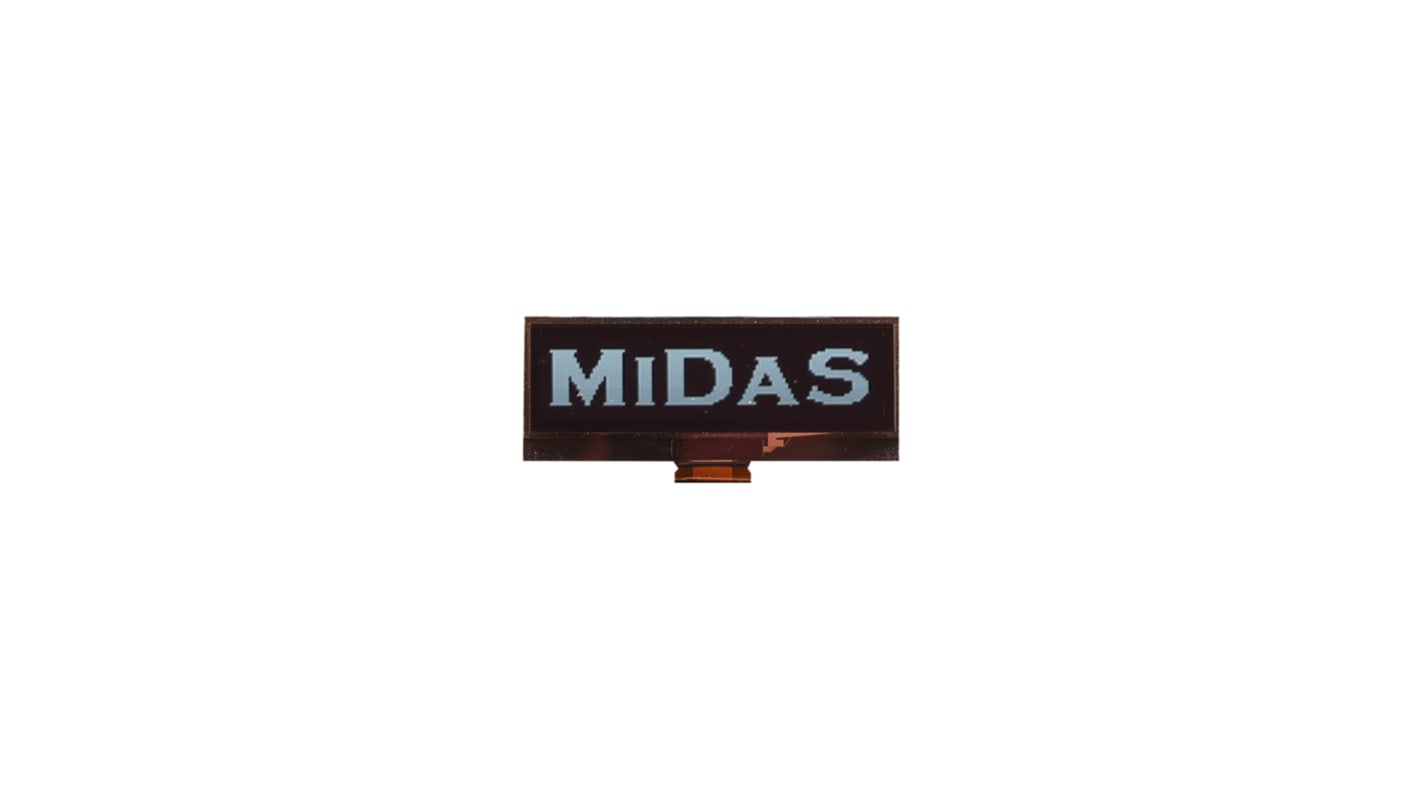

Midas 2.23in White Passive matrix OLED Display 128 x 32 TAB I2C, Parallel, SPI Interface

  • RS Stock No. 823-5936
  • Mfr. Part No. MCOT128032BX-WM
  • Manufacturer Midas
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Midas Graphic OLED Displays, TAB

A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.

Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)

Note

Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.

Midas Graphic PMOLED Displays

Specifications
Attribute Value
Diagonal Display Size 2.23in
Viewing Area Dimensions 57.02 x 15.10mm
Matrix Type Passive
Display Colours White
Resolution 128 x 32
Contrast Ratio >10000:1
Driver Mounting TAB
Interface Ports I2C, Parallel, SPI
Dimensions 62.0 x 24.0 x 2mm
Depth 2mm
Height 24mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Viewing Area Width 57.02mm
Width 62.0mm
Viewing Area Height 15.10mm
Operating Temperature Range -40 → +85°C
26 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 209.56
units
Per unit
1 - 9
MYR209.56
10 - 49
MYR200.30
50 - 99
MYR193.69
100 - 249
MYR169.37
250 +
MYR169.27
