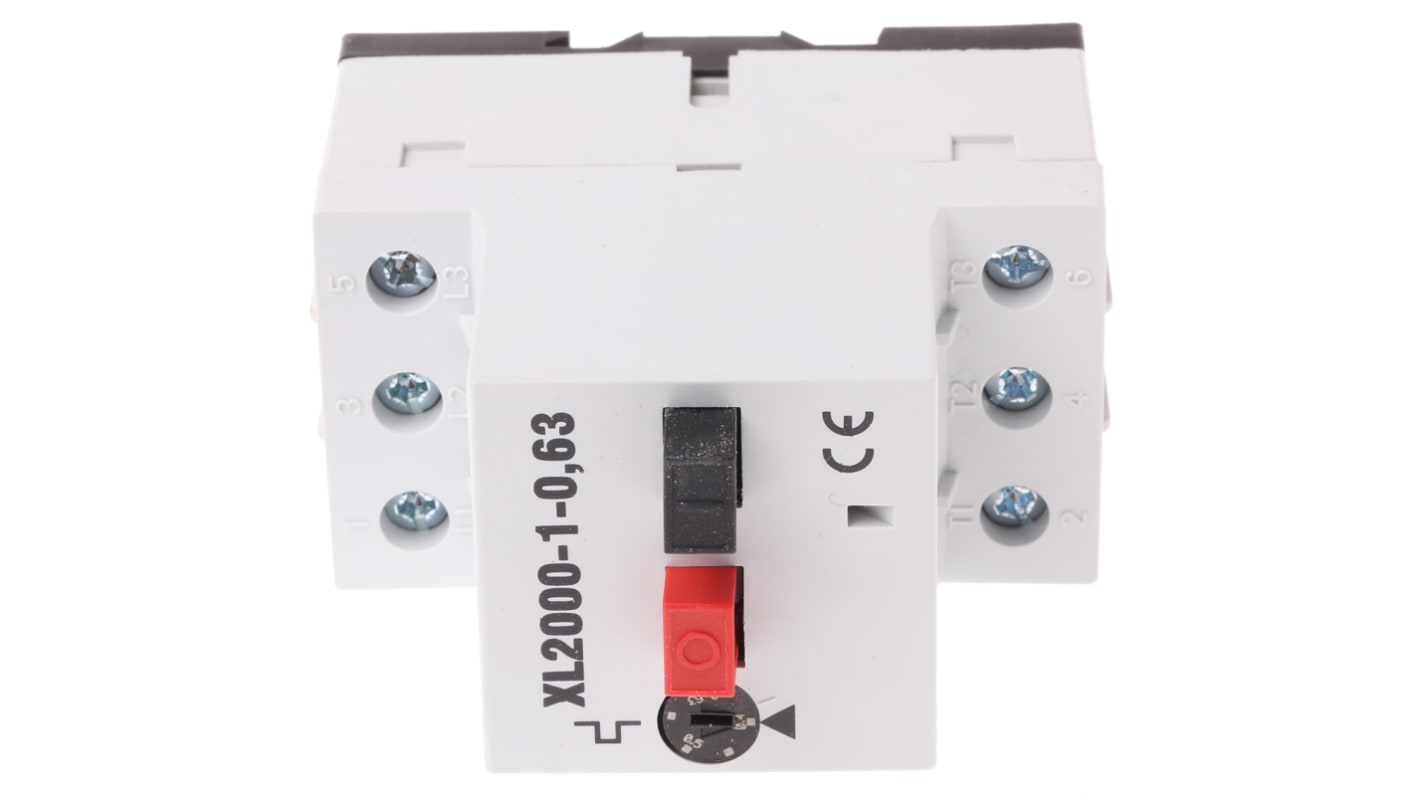

RS PRO 0.4 → 0.6 A Motor Protection Circuit Breaker
- RS Stock No.:
- 331-3589
- Manufacturer:
- RS PRO
33 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR283.34
| Units | Per Unit |
| 1 - 4 | MYR283.34 |
| 5 + | MYR233.19 |
- RS Stock No.:
- 331-3589
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SI
Product Details
Motor Protection Switches - XL-2000-01
Overload protection compensated -5 to +40°C
Lockable in 'OFF' position
Short circuit protection, therefore, no back-up fuse protection is required where the prospective fault level is less than the breaking capacity of the unit
Expected life cycles 0.1 x 106
Maximum switching frequency 40 operations/ hour
Ambient temperature (min/max) -25 to +55°C (open) and up to +40°C (closed)
Lockable in 'OFF' position
Short circuit protection, therefore, no back-up fuse protection is required where the prospective fault level is less than the breaking capacity of the unit
Expected life cycles 0.1 x 106
Maximum switching frequency 40 operations/ hour
Ambient temperature (min/max) -25 to +55°C (open) and up to +40°C (closed)
Standards
IEC 947-2, IEC 9474.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 0.4 → 0.6 A |
| Motor Protection Component | Circuit Breaker |
| Series | XL2000 |
| Overall Length | 80mm |
| Overall Width | 45mm |
| Overall Depth | 73.5mm |
| Voltage Rating | 690 V |
| Terminal Type | Screw |
| Control Voltage | 0.4 → 0.6 A |
