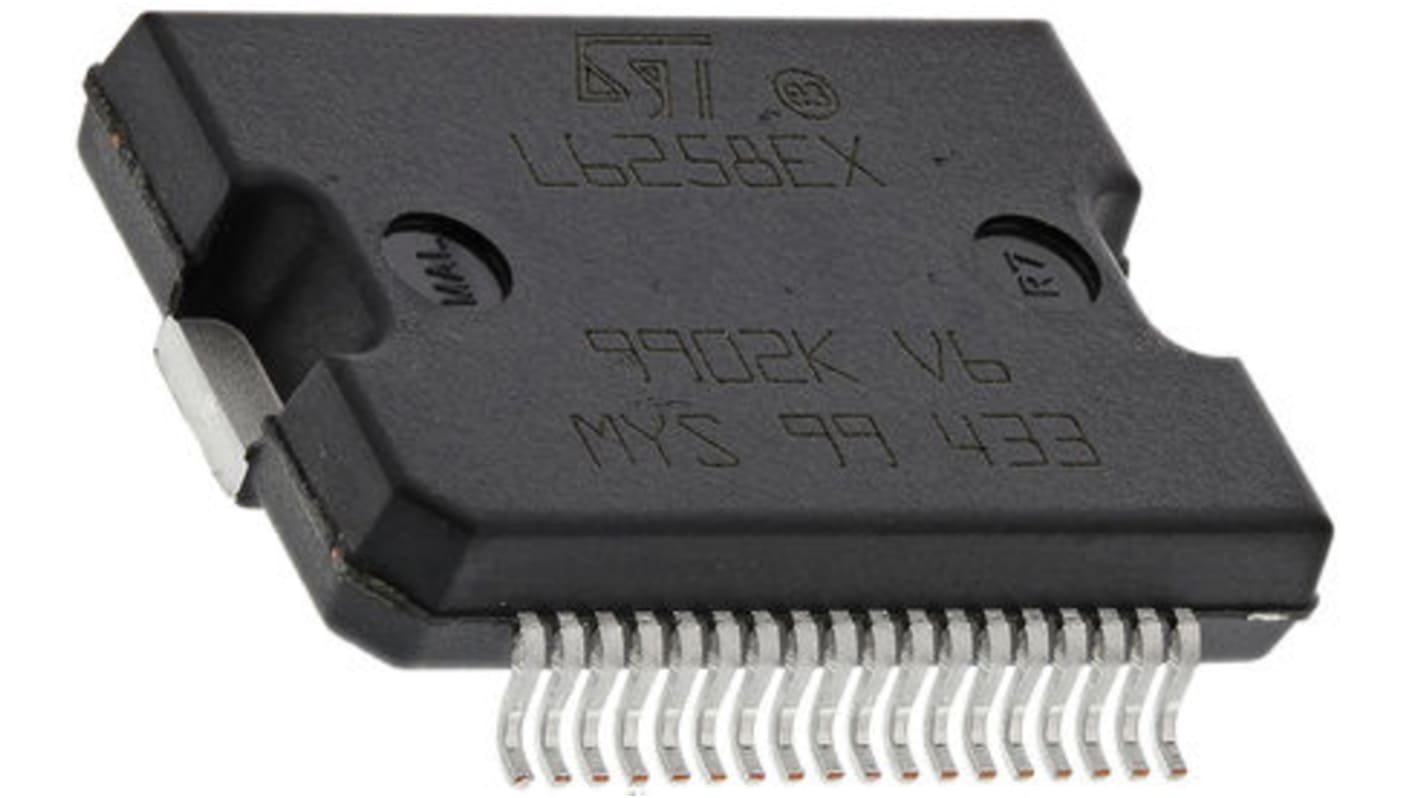

STMicroelectronics E-L6258EX, Stepper Motor Driver IC, 40 V 1.5A 36-Pin, PowerSO

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Stepper Motor Drivers, STMicroelectronics

Motor Controllers & Drivers, STMicroelectronics

Specifications
Attribute Value
Motor Type Stepper
Output Configuration Dual Full Bridge
Maximum IGBT Collector Current 1.5A
Maximum Collector Emitter Voltage 40 V
Mounting Type Surface Mount
Package Type PowerSO
Maximum Operating Supply Voltage 40 V
Pin Count 36
Minimum Operating Supply Voltage 12 V
Width 11.1mm
Height 3.6mm
Length 16mm
Dimensions 16 x 11.1 x 3.6mm
Maximum Operating Temperature +150 °C
310 In Global stock for delivery within 4 - 6 working days
Price Each (In a Tube of 31)
MYR 27.723
units
Per unit
Per Tube*
31 - 31
MYR27.723
MYR859.413
62 - 93
MYR26.649
MYR826.119
124 - 279
MYR23.569
MYR730.639
310 - 589
MYR21.849
MYR677.319
620 +
MYR20.99
MYR650.69
*price indicative
