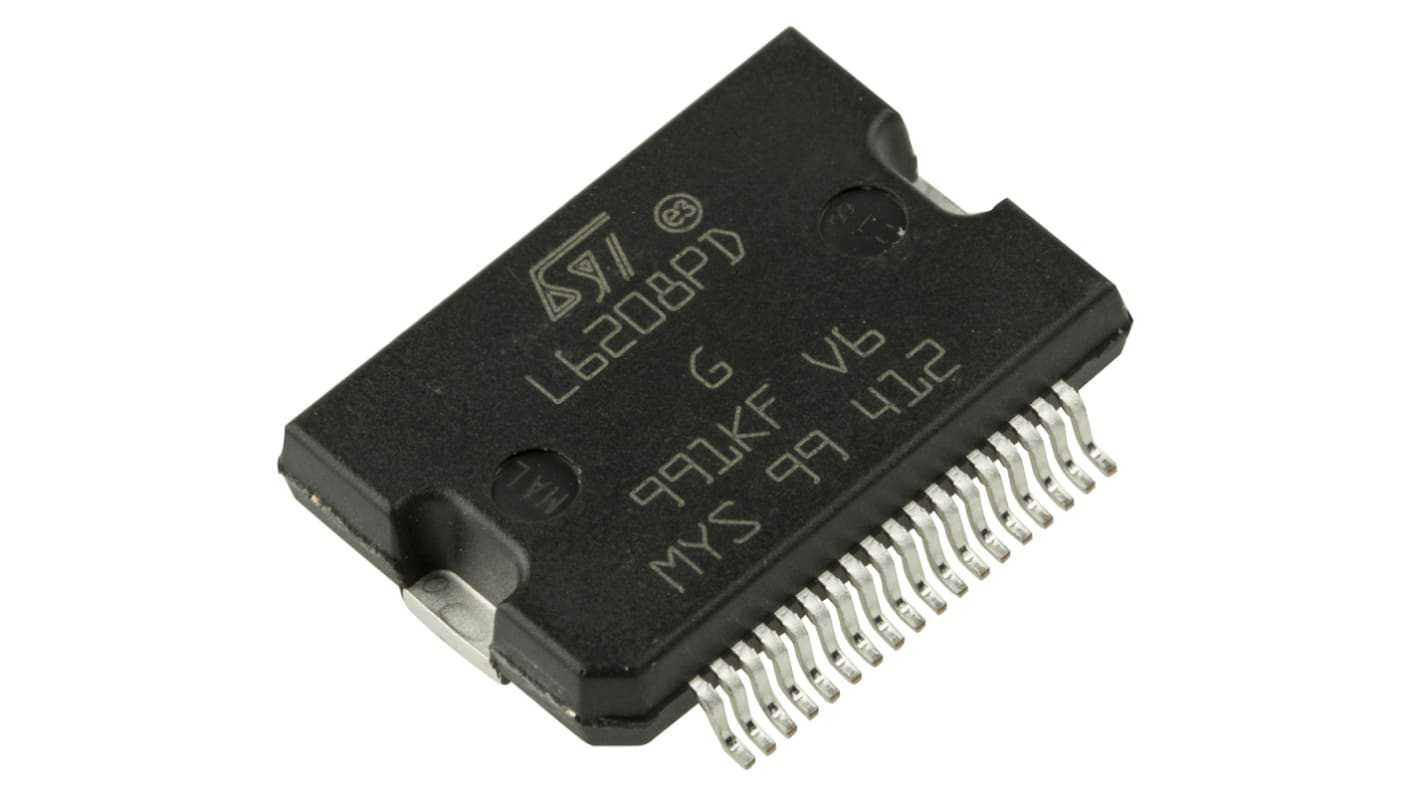

STMicroelectronics L6208PD, Stepper Motor Driver IC, 52 V 2.8A 38-Pin, PowerSO
- RS Stock No.:
- 919-6567
- Mfr. Part No.:
- L6208PD
- Manufacturer:
- STMicroelectronics
In Global stock for delivery within 4 - 6 working days
Added
Price Each (In a Tube of 31)
MYR46.325
| Units | Per Unit | Per Tube* |
| 31 - 31 | MYR46.325 | MYR1,436.075 |
| 62 - 93 | MYR45.611 | MYR1,413.941 |
| 124 + | MYR44.722 | MYR1,386.382 |
| *price indicative | ||
- RS Stock No.:
- 919-6567
- Mfr. Part No.:
- L6208PD
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Stepper Motor Drivers, STMicroelectronics
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Motor Controllers & Drivers, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Motor Type | Stepper |
| Output Configuration | Bipolar |
| Maximum IGBT Collector Current | 2.8A |
| Maximum Collector Emitter Voltage | 52 V |
| Mounting Type | Surface Mount |
| Package Type | PowerSO |
| Maximum Operating Supply Voltage | 52 V |
| Pin Count | 38 |
| Minimum Operating Supply Voltage | 8 V |
| Typical Switching Frequency | 100kHz |
| Dimensions | 16 x 11.1 x 3.3mm |
| Width | 11.1mm |
| Height | 3.3mm |
| Length | 16mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
