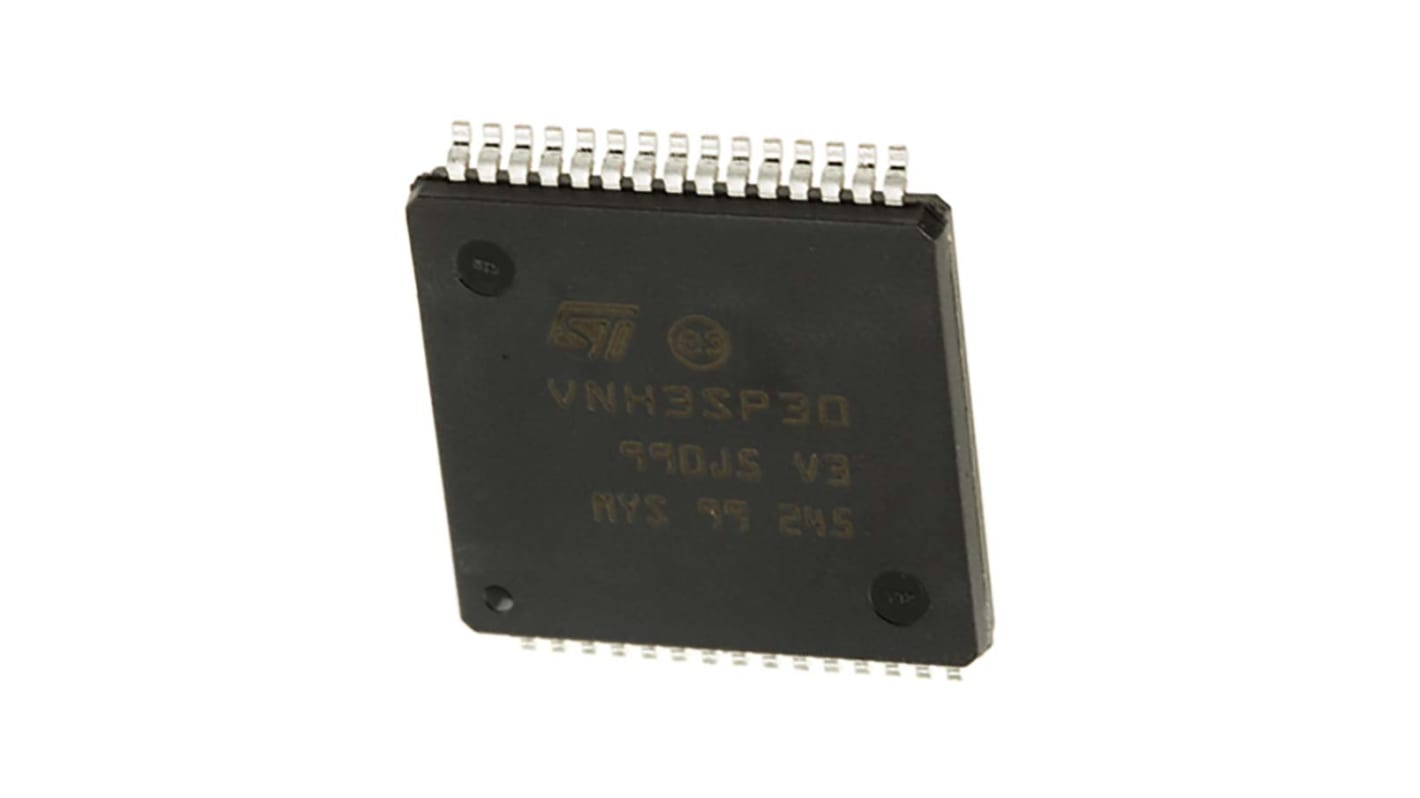

STMicroelectronics VNH3SP30TR-E, Brushed Motor Driver IC, 40 V 30A 30-Pin, MultiPowerSO

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Automotive Full Bridge Motor Drivers, STMicroelectronics

These full bridge (H-Bridge) motor driver devices are intended for a wide range of automotive applications.

Features

• Output current: 30A
• Undervoltage and overvoltage shutdown
• Overvoltage clamp
• Thermal shut down
• Cross-conduction protection
• Linear current limiter
• Very low standby power consumption
• PWM operation up to 10 kHz
• Protection against loss of ground and loss of Vcc

RS Product Codes

714-7746 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge
920-6285 VNH3SP30TR-E 30A 45mΩ 10kHz H-Bridge (Pack of 1000)

Standards

AEC-Q100

Motor Controllers & Drivers, STMicroelectronics

Specifications
Attribute Value
Motor Type Brushed DC
Output Configuration Full Bridge
Maximum IGBT Collector Current 30A
Maximum Collector Emitter Voltage 40 V
Mounting Type Surface Mount
Package Type MultiPowerSO
Pin Count 30
Maximum Operating Supply Voltage 36 V
Minimum Operating Supply Voltage 5.5 V
Typical Switching Frequency 10kHz
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +150 °C
Automotive Standard AEC-Q100
Length 17.2mm
Height 2.25mm
Width 16mm
Dimensions 17.2 x 16 x 2.25mm
Stock check temporarily unavailable - call for stock availability
Price Each
MYR 30.27
units
Per unit
1 - 9
MYR30.27
10 - 19
MYR28.76
20 - 49
MYR28.74
50 - 99
MYR26.56
100 +
MYR26.16
