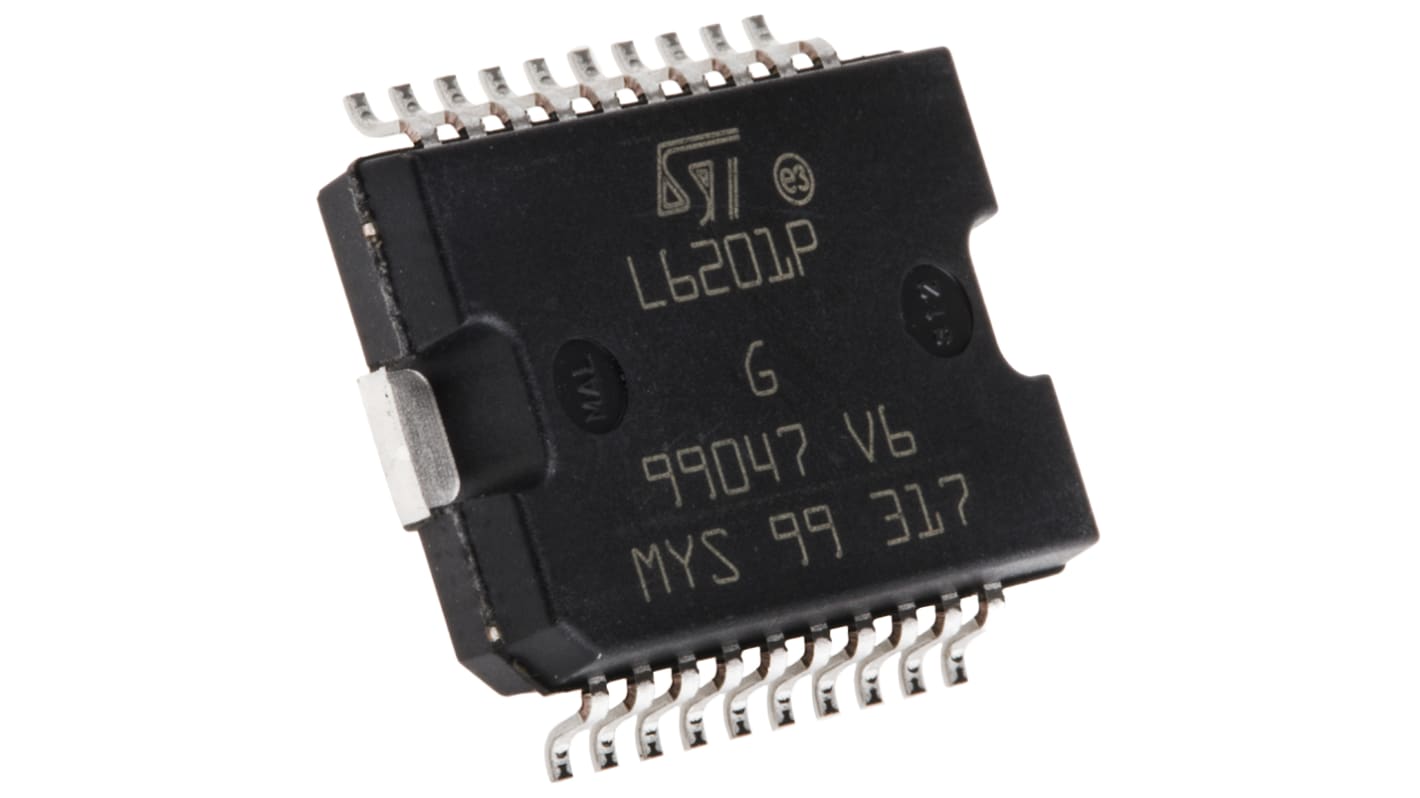

STMicroelectronics L6201PS, Brushed Motor Driver IC, 48 V 4A 20-Pin, PowerSO
- RS Stock No.:
- 714-0635
- Mfr. Part No.:
- L6201PS
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 13/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR44.42
| Units | Per Unit |
| 1 - 7 | MYR44.42 |
| 8 - 15 | MYR43.49 |
| 16 + | MYR42.18 |
- RS Stock No.:
- 714-0635
- Mfr. Part No.:
- L6201PS
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Motor Control Power Drivers, STMicroelectronics
The range of power drivers by STMicroelectronics are designed to drive a motor or a complex load through the logic commands at its input. They can be used with microcontrollers, DSPs or FPGAs in a motor or motion control system. The power drivers come in Dual Full Bridge, Full Bridge and 3 phase.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Motor Controllers & Drivers, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Full Bridge |
| Maximum IGBT Collector Current | 4A |
| Maximum Collector Emitter Voltage | 48 V |
| Mounting Type | Surface Mount |
| Package Type | PowerSO |
| Pin Count | 20 |
| Maximum Operating Supply Voltage | 48 V |
| Minimum Operating Supply Voltage | 12 V |
| Height | 3.3mm |
| Width | 11.1mm |
| Dimensions | 16 x 11.1 x 3.3mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 16mm |
