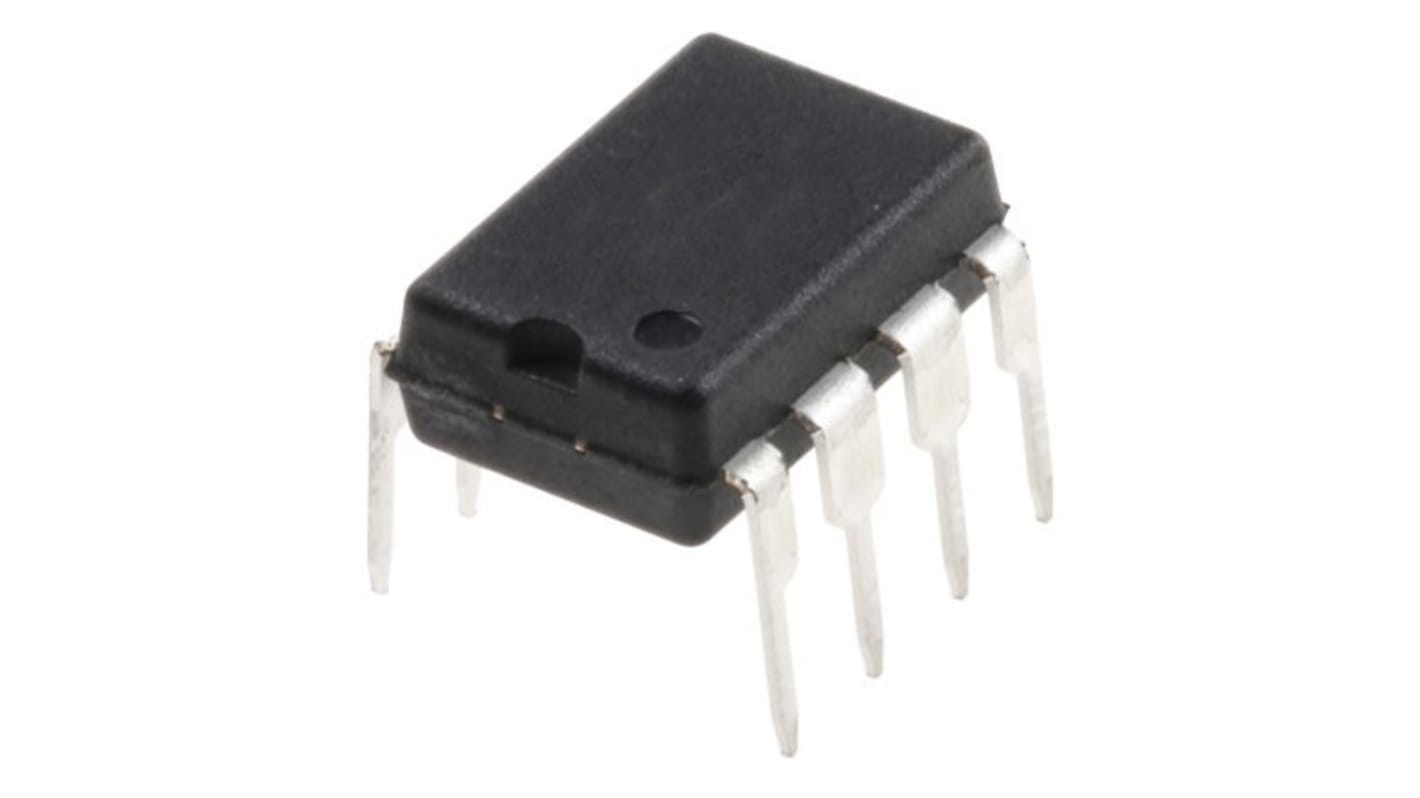

Vishay VO3120 Motor Driver IC 8-Pin, DIP

  • RS Stock No. 180-7131
  • Mfr. Part No. VO3120
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

The VO3120 consists of a LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides he drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 800 V/50 A. For IGBTs with higher ratings, the VO3120 can be used to drive a discrete power stage which drives the GBT gate.

2.5 A minimum peak output current
25 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
APPLICATIONS:
Isolated IGBT/MOSFET gate driver
AC and brushless DC motor drives
Induction stove top

Specifications
Attribute Value
Configuration Dual
Maximum Output Current 2.5A
Maximum Supply Voltage 32 V
Mounting Type Through Hole
Package Type DIP
Maximum Operating Supply Voltage 32 V
Pin Count 8
Minimum Operating Supply Voltage 15 V
Typical Switching Frequency 1MHz
Maximum Isolation Rating 5300Vrms
Dimensions 9.77 x 6.64 x 3.55mm
Product Length 9.77mm
Product Height 3.55mm
Product Width 6.64mm
Height 3.55mm
Maximum Operating Temperature +110 °C
Width 6.64mm
Minimum Operating Temperature -40 °C
Length 9.77mm
