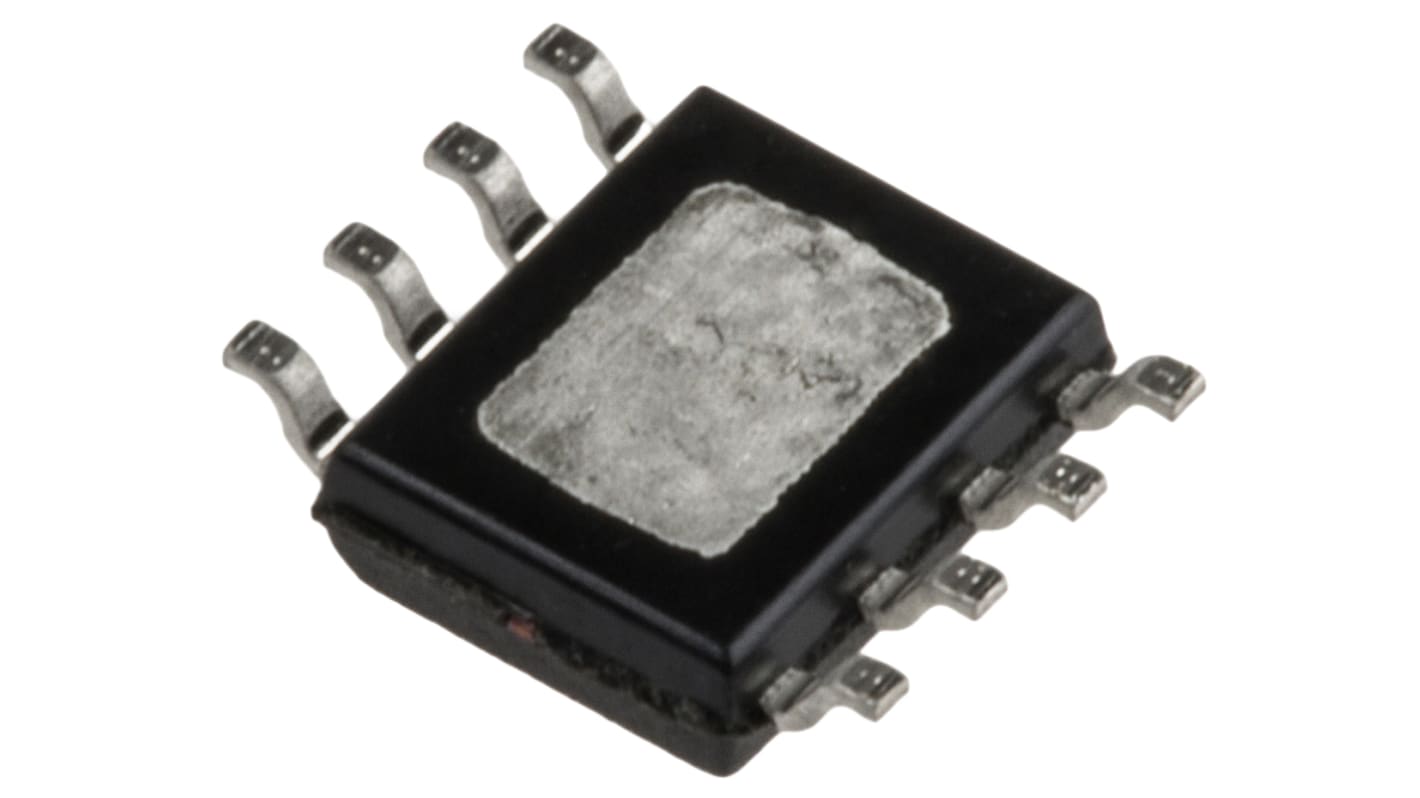

Allegro Microsystems A4950ELJTR-T, Brushed Motor Driver IC, 40 V 3.5A 8-Pin, SOIC
- RS Stock No.:
- 172-9266
- Mfr. Part No.:
- A4950ELJTR-T
- Manufacturer:
- Allegro Microsystems
3000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 3000)
MYR11.677
| Units | Per Unit | Per Reel* |
| 3000 + | MYR11.677 | MYR35,031.00 |
| *price indicative | ||
- RS Stock No.:
- 172-9266
- Mfr. Part No.:
- A4950ELJTR-T
- Manufacturer:
- Allegro Microsystems
Technical data sheets
Legislation and Compliance
Product Details
Motor Controllers, Allegro Microsystems
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Motor Controllers & Drivers, Allegro Microsystems
Specifications
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Full Bridge |
| Maximum IGBT Collector Current | 3.5A |
| Maximum Collector Emitter Voltage | 40 V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Maximum Operating Supply Voltage | 40 V |
| Minimum Operating Supply Voltage | 8 V |
| Dimensions | 4.9 x 3.9 x 1.55mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.55mm |
| Width | 3.9mm |
| Maximum Operating Temperature | +85 °C |
| Length | 4.9mm |
