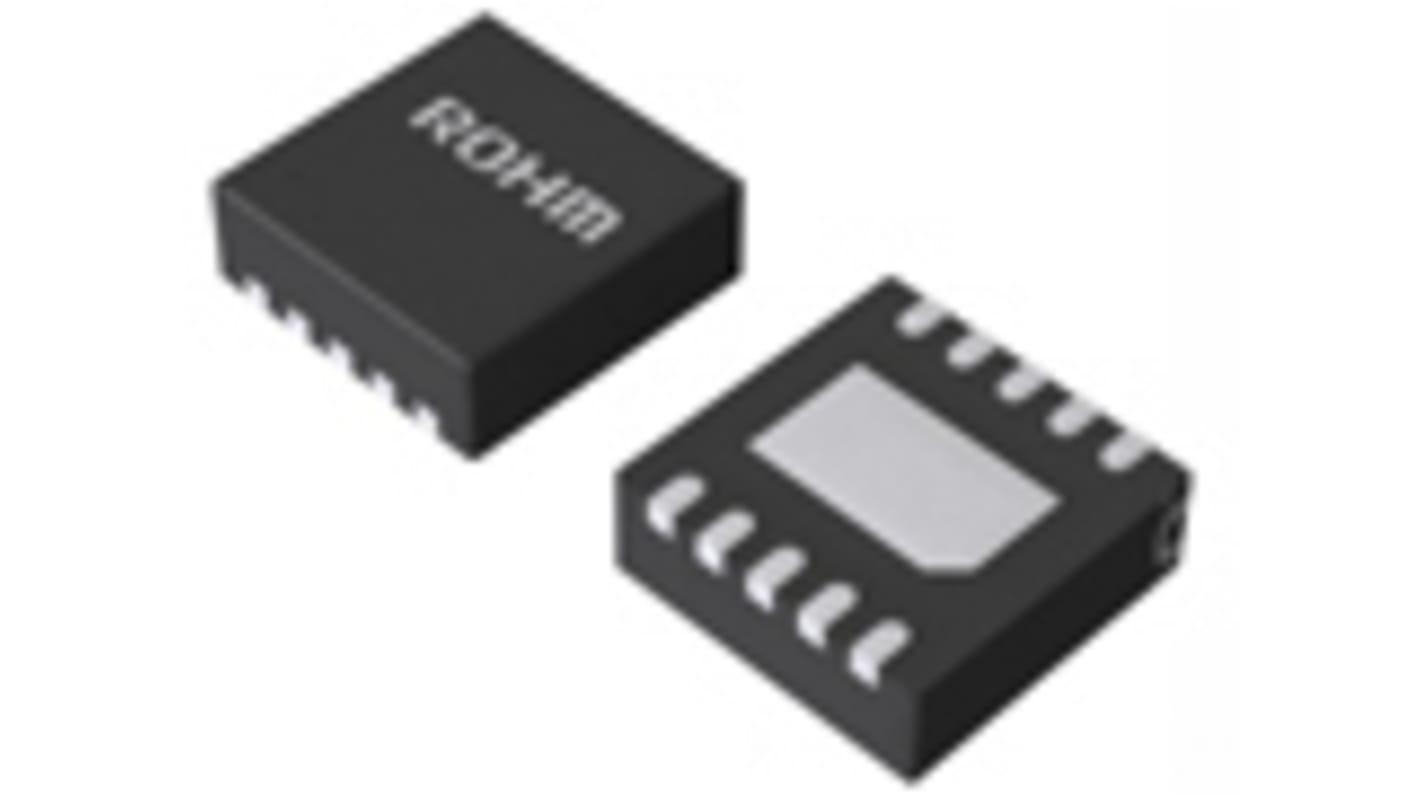

ROHM BD63573NUV-E2, Brushed Motor Driver IC 10-Pin, VSON

  • RS Stock No. 171-2068
  • Mfr. Part No. BD63573NUV-E2
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The BD63573NUV provides a single H-bridge motor driver which features wide range of motor power supply voltage from 2.0V to 16.0V and low power consumption to switch low ON-Resistance DMOS transistors at high speed. This small surface mounting package is most suitable for mobile system, home appliance and various applications.

Low ON-Resistance Power DMOS Output
Charge Pump-Less with PDMOS High-Side Driver
Drive Mode Switch Function
Control Input Voltage Range Fit 1.8V Controller
Under Voltage Locked Out Protection & Thermal Shut Down Function

Specifications
Attribute Value
Motor Type Brushed DC
Configuration Half Bridge
Output Configuration Half Bridge
Maximum Output Current 3.2A
Maximum Supply Voltage 5.5 (Power) V, 16 (Motor) V
Mounting Type Surface Mount
Package Type VSON
Maximum Operating Supply Voltage 5.5 (Power) V, 16 (Motor) V
Pin Count 10
Minimum Operating Supply Voltage 2 (Motor) V, 2.5 (Power) V
Typical Switching Frequency 500 (Maximum)kHz
Product Width 3mm
Width 3mm
Product Height 0.98mm
Minimum Operating Temperature -30 °C
Length 3mm
Dimensions 3 x 3 x 0.98mm
Maximum Operating Temperature +85 °C
Product Length 3mm
Height 0.98mm
Temporarily out of stock - back order for despatch when stock is available
Price Each (On a Reel of 3000)
MYR 2.971
units
Per unit
Per Reel*
3000 +
MYR2.971
MYR8,913.00
*price indicative
