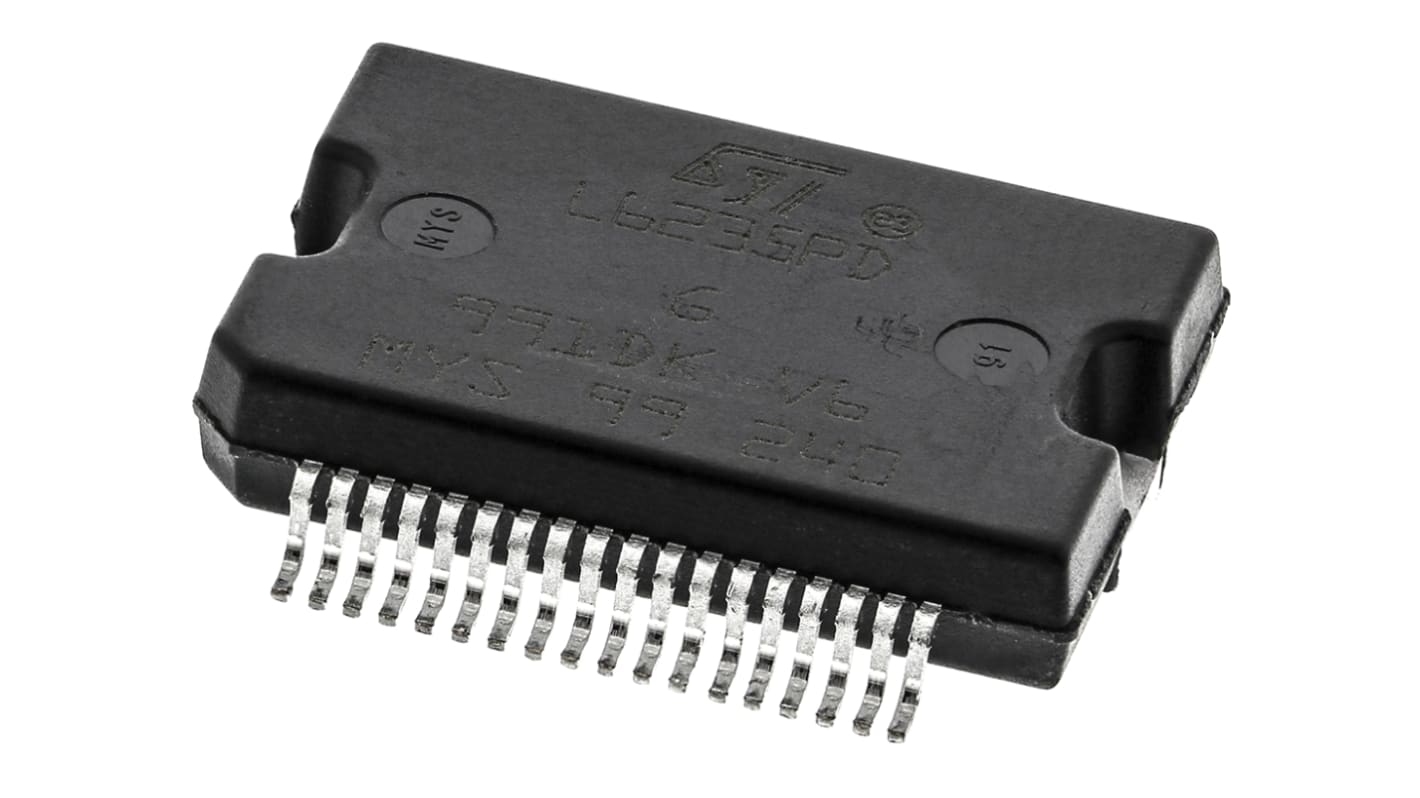

STMicroelectronics L6235PD, BLDC Motor Driver IC, 52 V 2.8A 36-Pin, PowerSO
- RS Stock No.:
- 168-6319
- Mfr. Part No.:
- L6235PD
- Manufacturer:
- STMicroelectronics
310 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 31)
MYR36.779
| Units | Per Unit | Per Tube* |
| 31 - 31 | MYR36.779 | MYR1,140.149 |
| 62 - 93 | MYR35.97 | MYR1,115.07 |
| 124 + | MYR35.309 | MYR1,094.579 |
| *price indicative | ||
- RS Stock No.:
- 168-6319
- Mfr. Part No.:
- L6235PD
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Three Phase BLDC Motor Drivers, STMicroelectronics
The Brushless DC Motor Drivers include power drivers in a 3 phase bridge configuration. The ICs integrate decoding logic for Hall-effect sensors and a PWM current controller to drive autonomously a BLDC motor with microcontroller commands.
A robust and reliable electronic design can depend on the build-in circuit protection and diagnostic features from over-temperature, overcurrent and under-voltage conditions.
A robust and reliable electronic design can depend on the build-in circuit protection and diagnostic features from over-temperature, overcurrent and under-voltage conditions.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Motor Controllers & Drivers, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Motor Type | BLDC |
| Output Configuration | 3 Phase |
| Maximum IGBT Collector Current | 2.8A |
| Maximum Collector Emitter Voltage | 52 V |
| Mounting Type | Surface Mount |
| Package Type | PowerSO |
| Pin Count | 36 |
| Maximum Operating Supply Voltage | 52 V |
| Minimum Operating Supply Voltage | 12 V |
| Typical Switching Frequency | 100kHz |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 3.3mm |
| Width | 11.1mm |
| Length | 16mm |
| Dimensions | 16 x 11.1 x 3.3mm |
