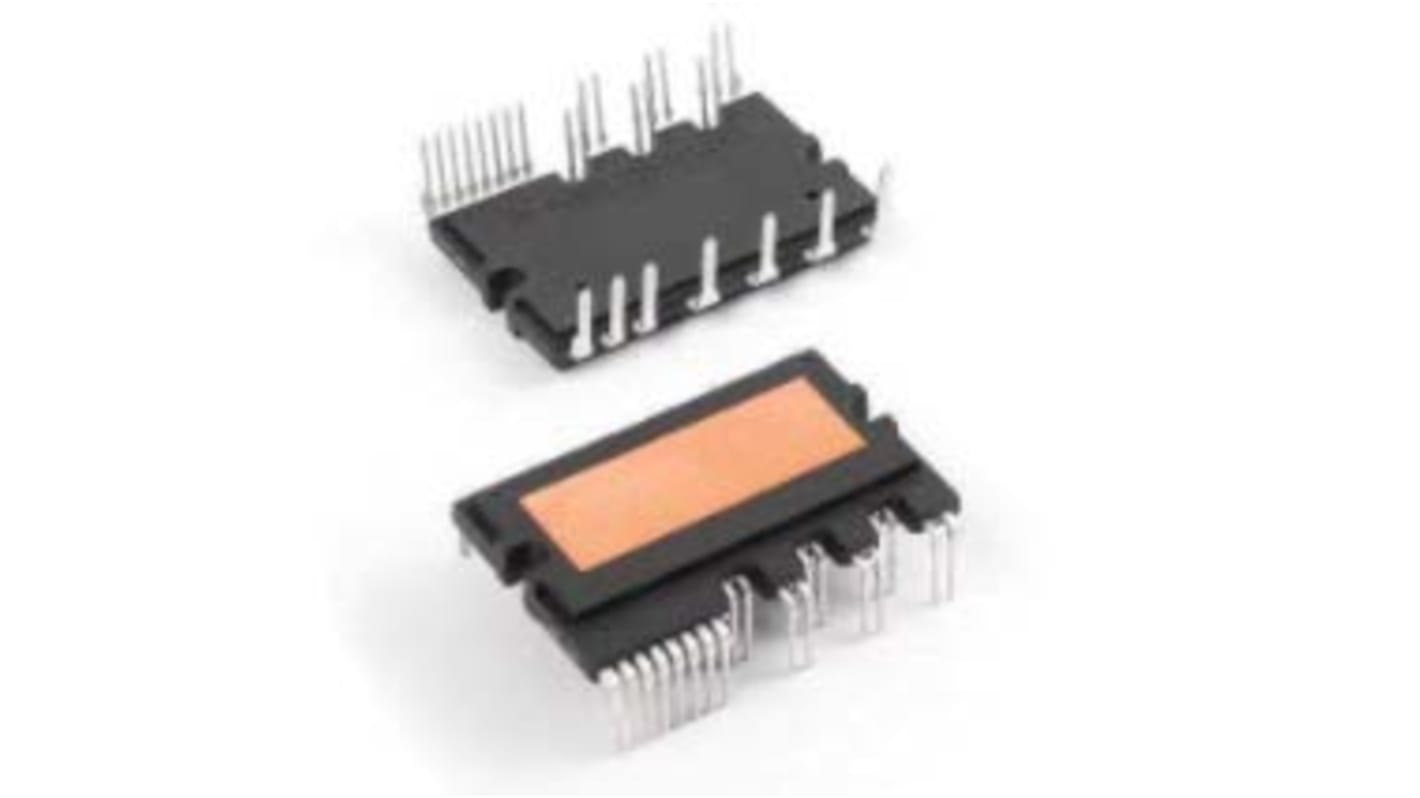

ON Semiconductor FNB35060T Motor Driver IC, 600 V 100A 27-Pin, SPM3

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Motion SPM® 3 Series Motor Drivers, Fairchild Semiconductor

A range of advanced Smart Power Modules from Fairchild Semiconductor which provide compact high performance solutions for many inverter motor drive applications. The modules integrate optimized gate drive for the built-in power MOSFETs to minimize EMI and losses and also include multiple on-module protection features including under-voltage lockouts and thermal monitoring. The modules are suitable for driving AC Induction, BLDC (Brushless DC) and PMSM (Permanent Magnet Synchronous) motors.

Motor Controllers & Drivers, Fairchild Semiconductor

Specifications
Attribute Value
Output Configuration 3 Phase
Configuration Array 6
Maximum IGBT Collector Current 100A
Maximum Output Current 2A
Maximum Supply Voltage 400 V
Maximum Collector Emitter Voltage 600 V
Mounting Type Through Hole
Package Type SPM3
Maximum Operating Supply Voltage 400 V
Pin Count 27
Minimum Operating Supply Voltage 300 V
Series Motion SPM 3
Length 44.2mm
Width 27mm
Maximum Operating Temperature +150 °C
Product Width 27mm
Dimensions 44.2 x 27 x 5.7mm
Product Length 44.2mm
Height 5.7mm
Product Height 5mm
Minimum Operating Temperature -40 °C
240 In Global stock for delivery within 4 - 6 working days
Price Each (In a Tube of 60)
MYR 112.764
units
Per unit
Per Tube*
60 +
MYR112.764
MYR6,765.84
*price indicative
