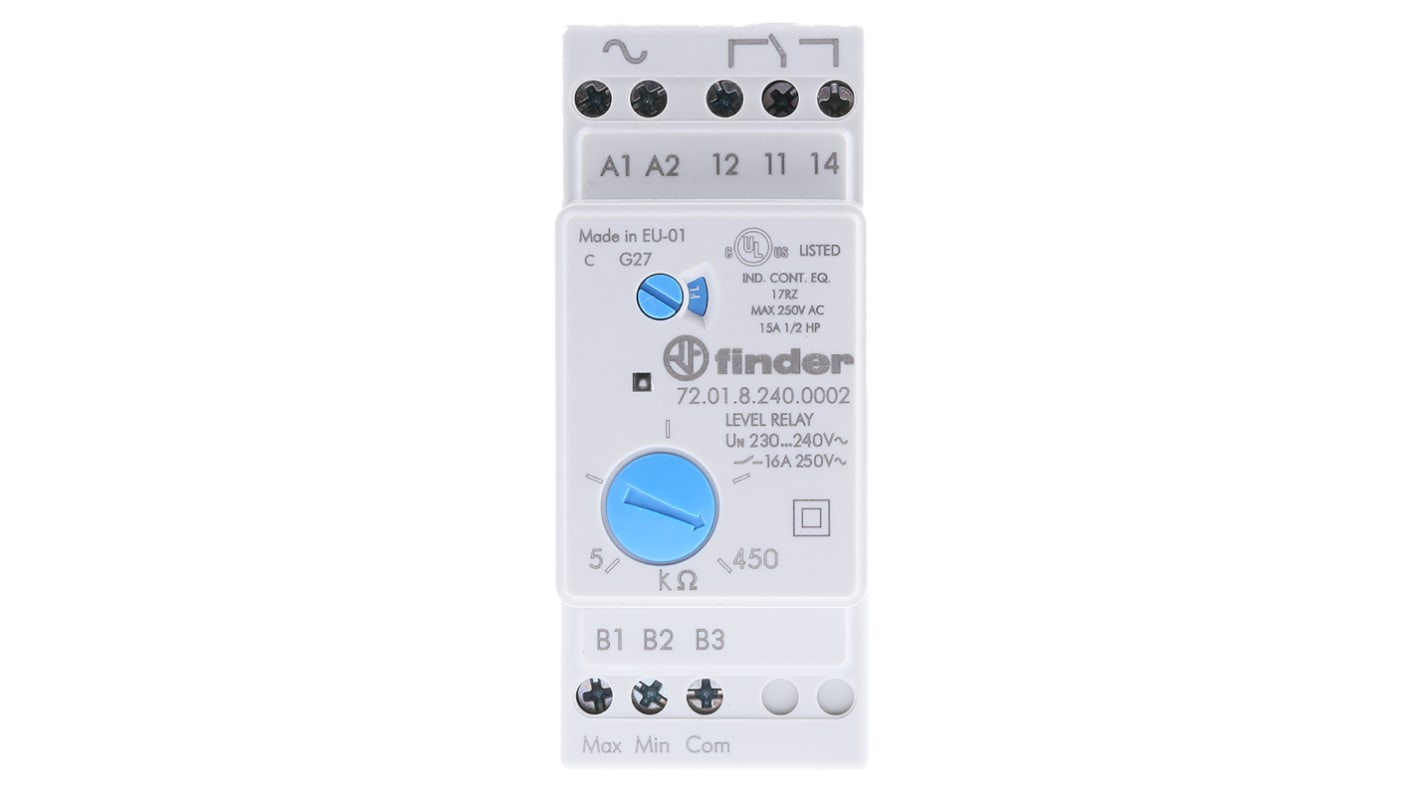

Finder Level Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 776-1585
- Mfr. Part No.:
- 72.01.8.240.0002
- Manufacturer:
- Finder
Temporarily out of stock - back order for despatch 10/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR418.90
| Units | Per Unit |
| 1 + | MYR418.90 |
- RS Stock No.:
- 776-1585
- Mfr. Part No.:
- 72.01.8.240.0002
- Manufacturer:
- Finder
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
72 Series - Monitoring Relays
The 72 series of relays from Finder are level control relays for conductive liquids.
Sensitivity range (5 to 150) kΩ adjustable
Delay time (0.5s or 7s) switch selectable
Emptying or filling functions switch selectable
DIN rail mounting
Delay time (0.5s or 7s) switch selectable
Emptying or filling functions switch selectable
DIN rail mounting
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Level |
| Electrical Phase | 1 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Time Delay | 0.5 → 7s |
| Series | 72 |
| Dimensions | 58 x 35 x 84mm |
| Maximum Operating Temperature | +60°C |
| Width | 35mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | +60°C |
| Terminal Type | Screw |
| Length | 58mm |
| Height | 84mm |
