ABB Phase, Voltage Monitoring Relay, 1, 3 Phase, SPST, 185 → 265V ac, DIN Rail
- RS Stock No.:
- 442-9427
- Mfr. Part No.:
- 1SVR550870R9400
- Manufacturer:
- ABB
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR572.83
| Units | Per Unit |
| 1 + | MYR572.83 |
- RS Stock No.:
- 442-9427
- Mfr. Part No.:
- 1SVR550870R9400
- Manufacturer:
- ABB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details

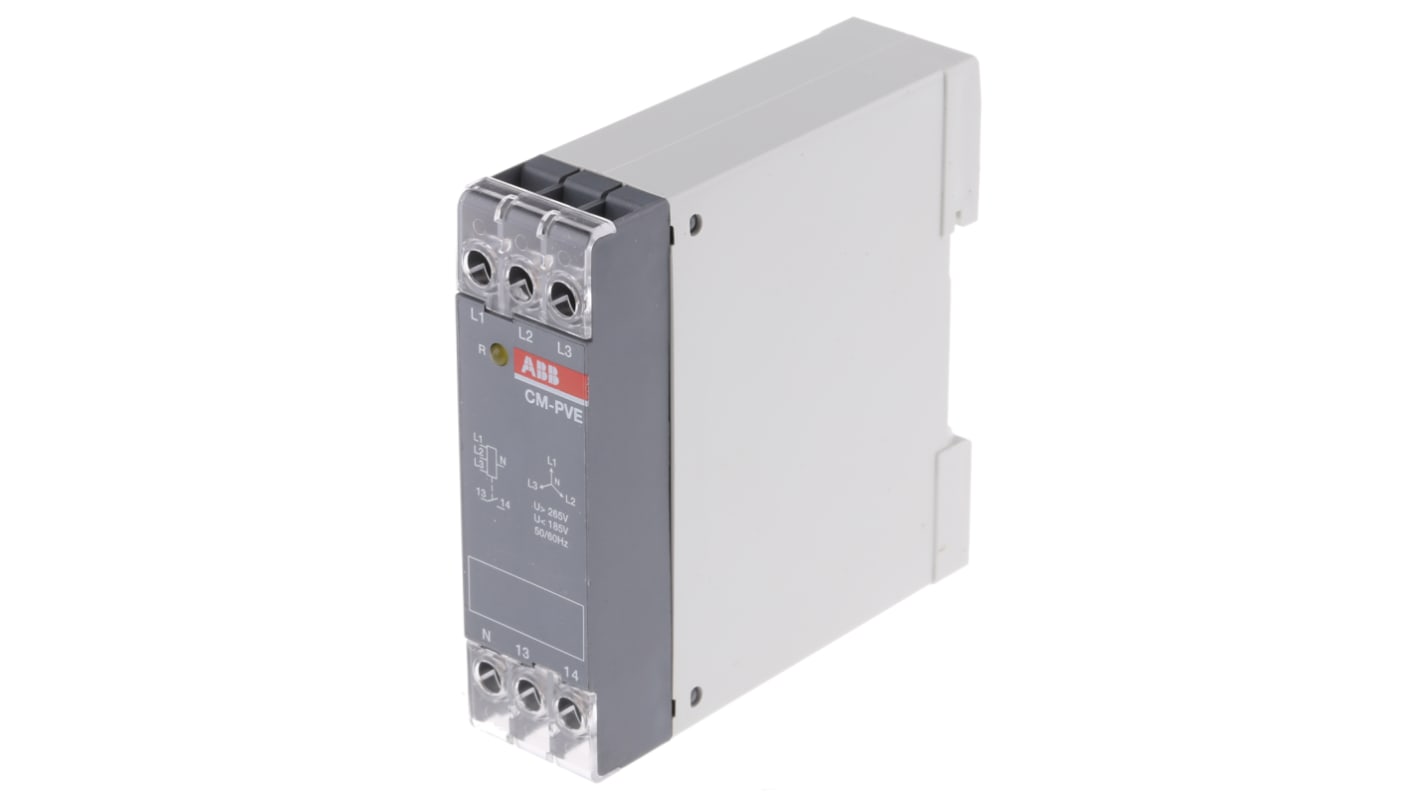

ABB Monitoring Relay, 500ms Time Delay, 185 to 460V AC Voltage Measuring Range - CM-PVE Series - 1SVR550870R9400
This monitoring relay from ABB helps detect undervoltage and overvoltage in your circuit to keep your equipment protected against electrical damage. Its wide voltage measuring ranges of 185 to 265V AC and 320 to 460V AC make it suitable for use in low-power and medium-power systems. A maximum measuring cycle time of just 80ms means it quickly senses potential hazards. The yellow LED indicator lets you know when the output relay is energised, making it easy to monitor its operating status.
Features & Benefits
• Long mechanical service life of up to 30 million cycles for long-lasting performance
• Short time delay of 500ms for a quick reaction
• Terminals have an IP20 rating, meaning they're finger-safe and protected against tools and wires larger than 12mm in size
• Broad operating temperature range of -20°C to +60°C for use in demanding environments
• Short time delay of 500ms for a quick reaction
• Terminals have an IP20 rating, meaning they're finger-safe and protected against tools and wires larger than 12mm in size
• Broad operating temperature range of -20°C to +60°C for use in demanding environments
Applications
• Refrigeration systems
• Hydraulic pumps
• Compressors
• Hydraulic pumps
• Compressors
How do I mount this monitoring relay?
This monitoring relay is designed for mounting on a standard DIN rail for ease of installation. For versatility, you can mount it in any position.
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Phase, Voltage |
| Electrical Phase | 1, 3 |
| Voltage Sensing Range | 185 → 265 V ac, 320 → 460V ac |
| Contact Configuration | SPST |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Neutral Loss, Phase Loss |
| Time Delay | 500ms |
| Series | CM-PVE |
| Height | 78mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Terminal Type | Screw |
| Operating Temperature Range | +60°C |
| Minimum Voltage Sensed | 185V ac |
| Width | 22.5mm |
| Length | 78.5mm |
| Dimensions | 78.5 x 22.5 x 78mm |
| Maximum Voltage Sensed | 460V ac |
