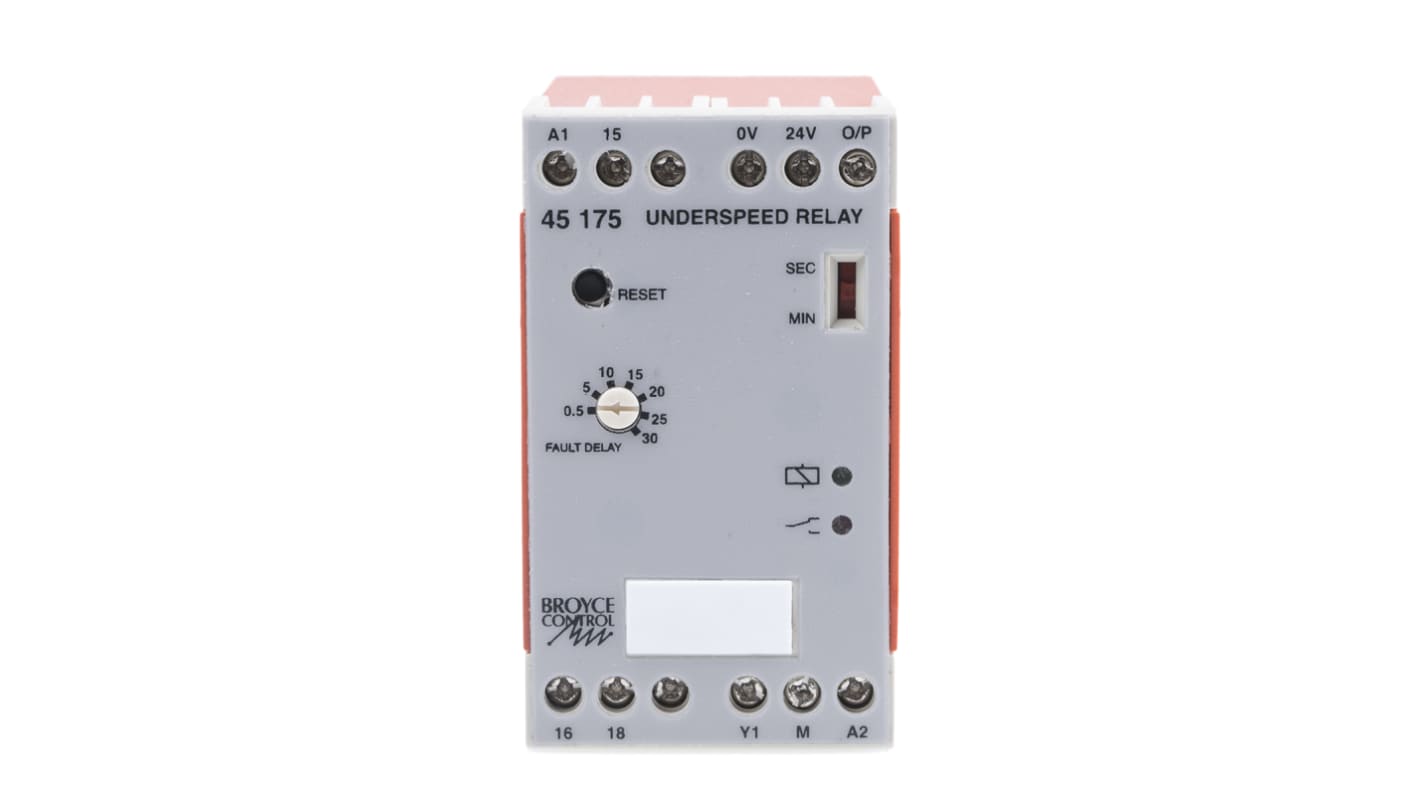

Broyce Control Speed Monitoring Relay, SPDT, DIN Rail

RS Stock No.:: 321-6848
Mfr. Part No.:: 45175 110VAC
Manufacturer:: Broyce Control

Broyce Control Speed Monitoring Relay, SPDT, DIN Rail

Available for back order.

Added

Price Each

MYR603.46

Units	Per Unit
1 +	MYR603.46

Alternative

This product is not currently available. Here is our alternative recommendation.

Broyce Control DIN Rail Mount Timer Relay, 24 → 230 V ac/12 → 230V dc, 1-Contact, 0.1 s → 100h,

RS Stock No.: 828-5158

Price Each

MYR273.00

RS Stock No.:: 321-6848
Mfr. Part No.:: 45175 110VAC
Manufacturer:: Broyce Control

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: GB

Product Details

45175 Underspeed Relay

Monitoring input: Pulse from NPN open collector proximity switch or volt-free contact

Additional features:

LED indication
Adjustable time delay
Latching facility
Write on ID tab
Dimensions: H78 x W45 x D99mm

Broyce Economical Range

LED indication
DIN rail mount with SPDT relay outputs and flame retardant to UL94 V0
Supply voltage variation range: 0.85 - 1.15 x U_n
Operating temperature range: -20 to 60°C (629-831 and 629-847: -10 to +55°C)
Electrical life: 1.5 x 10⁵operations at rated load

Note

Output relay contact rating specified at 250Vac

Specifications

Attribute	Value
Monitoring Application	Speed
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	0.5 → 30 min, 0.5 → 30s
Series	45
Length	99mm
Height	78mm
Dimensions	99 x 45 x 78mm
Width	45mm
Operating Temperature Range	+60°C
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C
