- RS Stock No.:
- 240-8967
- Mfr. Part No.:
- BD9080.12 3AC400V UH=AC230V
- Manufacturer:
- Dold
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,661.25
Units | Per Unit |
1 + | MYR1,661.25 |
- RS Stock No.:
- 240-8967
- Mfr. Part No.:
- BD9080.12 3AC400V UH=AC230V
- Manufacturer:
- Dold
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

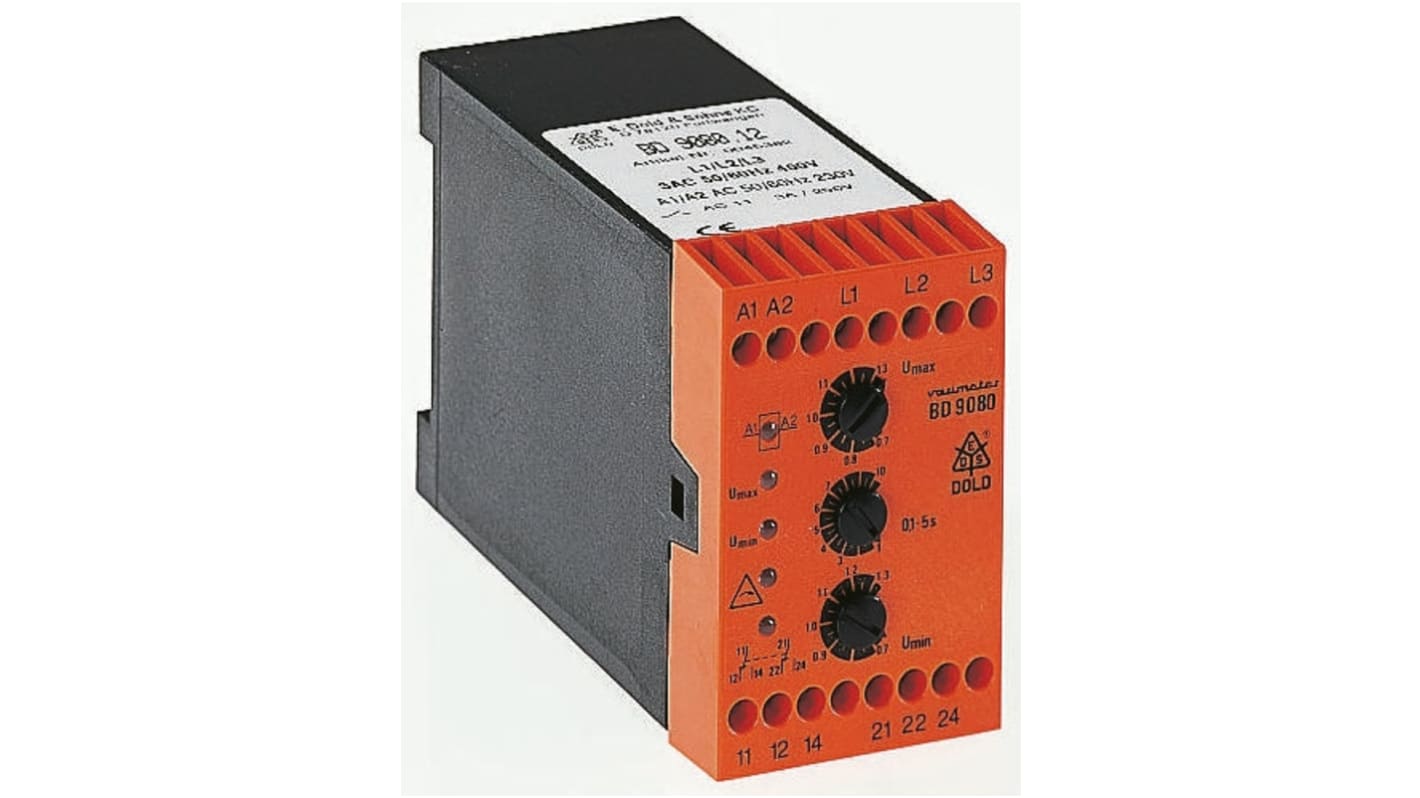

Phase monitor, BD9080
Multifunctional device for monitoring three-phase networks for undervoltage / overvoltage. Phase sequence asymmetry, mains failure (in accordance with IEC 255, VDE 0435 part 303).
Recognition of
- Undervoltages / overvoltages
- Asymmetry
- Phase failure
- Phase sequence
- Asymmetry
- Phase failure
- Phase sequence
Impervious to harmonics up to a distortion factor of K 20 %
Fallback delay adjustable from 0.1 → 5 s
One LED indicator for each of the following: auxiliary voltage A1 / A2; overvoltage UMAX; undervoltage UMIN; asymmetry / phase sequence / mains failure; contact position
One device for networks with and without a neutral conductor
Rest current principle
2 changeovers
Overall width 45 mm
Fallback delay adjustable from 0.1 → 5 s
One LED indicator for each of the following: auxiliary voltage A1 / A2; overvoltage UMAX; undervoltage UMIN; asymmetry / phase sequence / mains failure; contact position
One device for networks with and without a neutral conductor
Rest current principle
2 changeovers
Overall width 45 mm
Phase Sequence/Failure Relays
Monitoring of 3 phase supplies
Orange housing manufactured to DIN 43 880
DIN rail mount
Orange housing manufactured to DIN 43 880
DIN rail mount
Specifications
Attribute | Value |
---|---|
Monitoring Application | Phase, Voltage |
Electrical Phase | 3 |
Contact Configuration | DPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Mounting Type | DIN Rail |
Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
Time Delay | 0.1 → 5s |
Series | BD 9080 |
Maximum Operating Temperature | +60°C |
Width | 45mm |
Dimensions | 133 x 45 x 74mm |
Height | 74mm |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | +60°C |
Length | 133mm |
