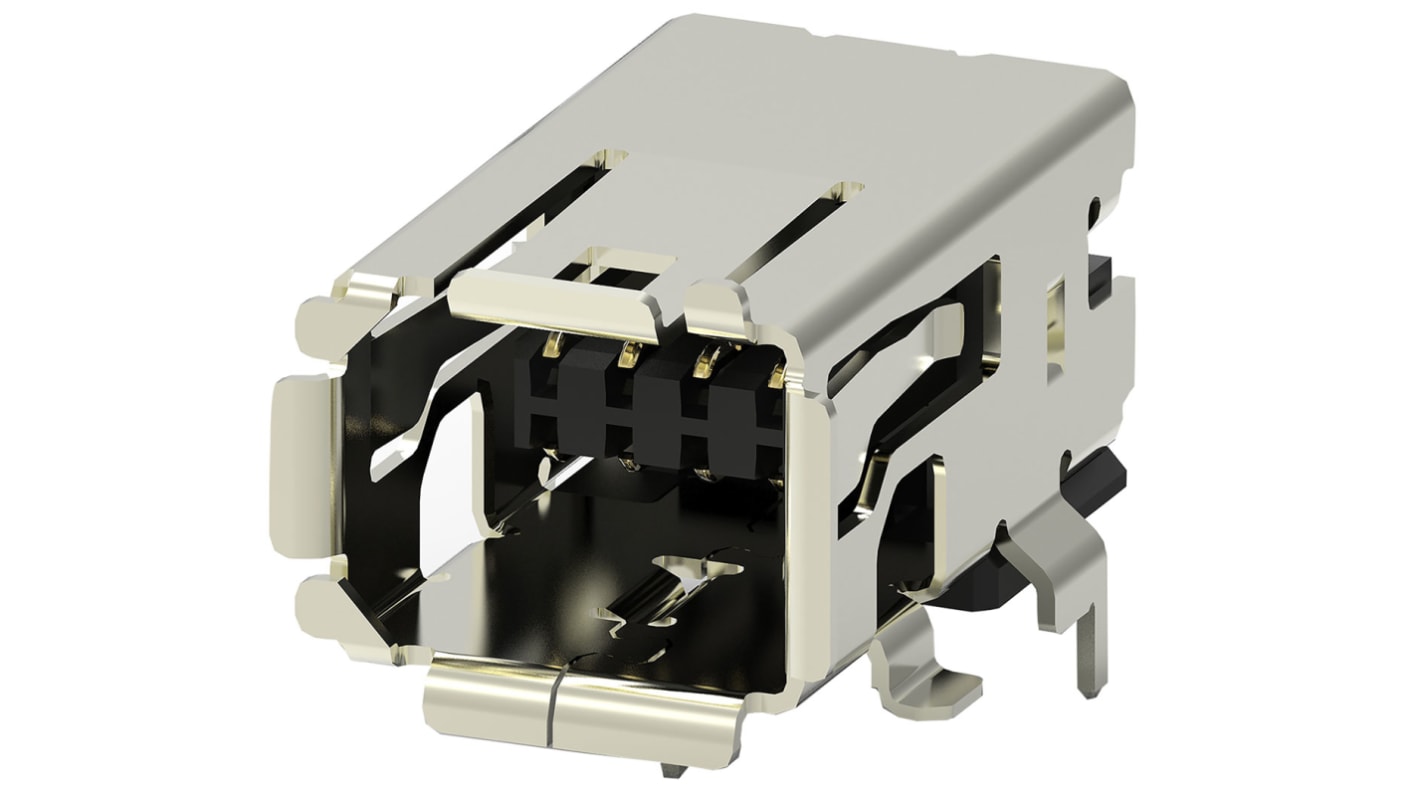

TE Connectivity Surface Mount Right Angle Mini I/O Connector Female, 8 Way, Shielded
- RS Stock No.:
- 161-8698
- Mfr. Part No.:
- 2294417-1
- Manufacturer:
- TE Connectivity
1200 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 300)
MYR25.223
| Units | Per Unit | Per Reel* |
| 300 - 300 | MYR25.223 | MYR7,566.90 |
| 600 - 900 | MYR24.668 | MYR7,400.40 |
| 1200 + | MYR24.214 | MYR7,264.20 |
| *price indicative | ||
- RS Stock No.:
- 161-8698
- Mfr. Part No.:
- 2294417-1
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TE Connectivity Mini I/O Type I & Type II PCB Mount Headers
From TE Connectivity, a range of Mini I/O PCB mount side entry headers. The compact connectors are one-quarter the size of conventional RJ45 providing a 75% space saving solution freeing valuable board real estate. Designed with a two-point contact system the connectors unique locking feature ensures secure mating and prevents accidental unplugging in high vibration applications reducing valuable downtime. The Mini I/O connectors in this range are offered in both Type I and Type II profiles.
Features and Benefits
Small and compact
One-quarter the size of conventional RJ45
Vibration resistant
Shielded
Reliable connection, two points of contact
One-quarter the size of conventional RJ45
Vibration resistant
Shielded
Reliable connection, two points of contact
Applications
PLC’S
Motion and Drives
Robotics
Industrial Communications
Motion and Drives
Robotics
Industrial Communications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity Industrial Mini I/O
Specifications
Attribute | Value |
|---|---|
| Connector Type | Jack |
| Gender | Female |
| Number of Ways | 8 |
| Mounting Type | Surface Mount |
| Orientation | Right Angle |
| Number of Ports | 1 |
| IP Rating | IP20, IP30 |
| Shielded/Unshielded | Shielded |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Contact Material | Gold |
| Colour | Black |
| Height | 7.36mm |
| Width | 9.81mm |
| Depth | 14mm |
