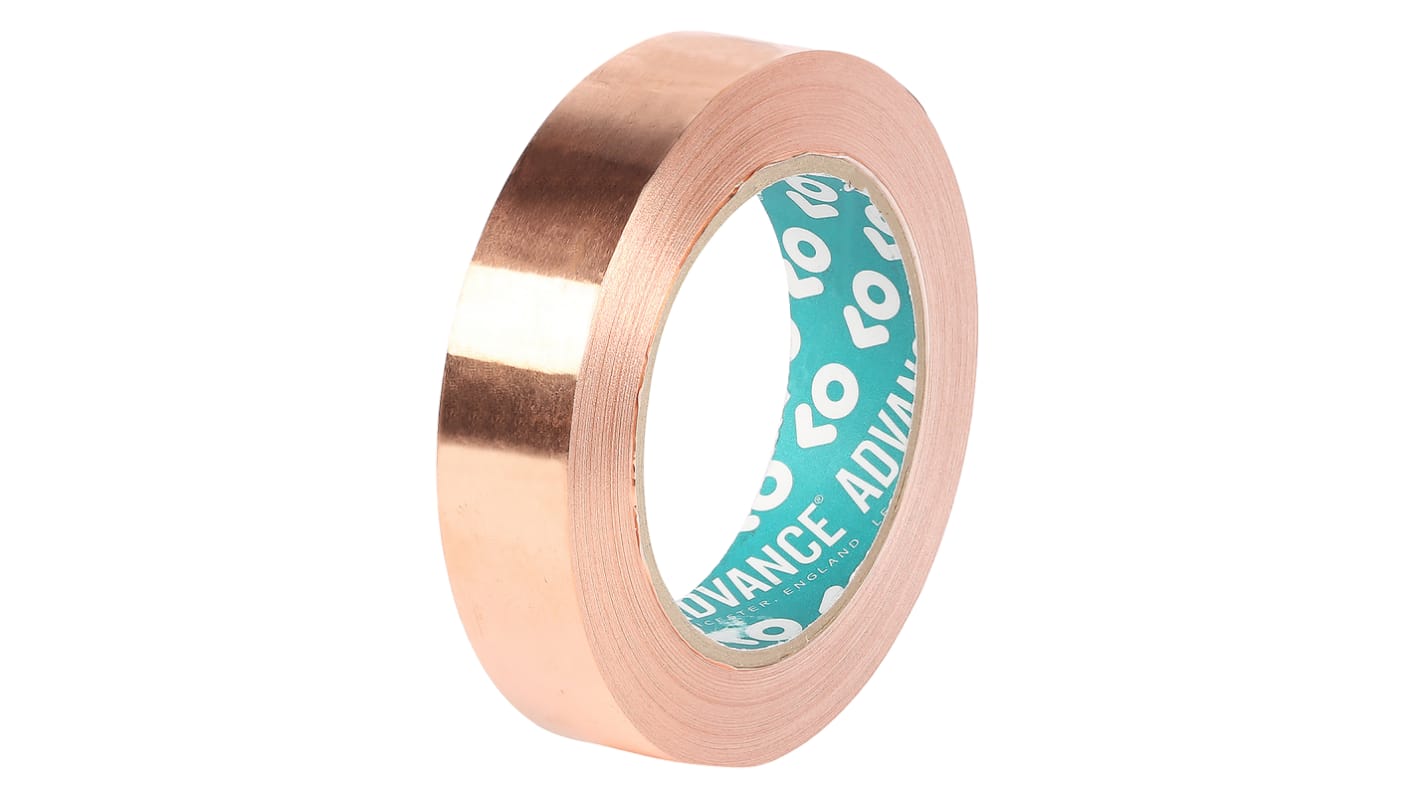

Advance Tapes AT528 Conductive Metallic Tape, 25mm x 33m

RS Stock No.:: 542-5375
Mfr. Part No.:: AT528
Manufacturer:: Advance Tapes

Advance Tapes AT528 Conductive Metallic Tape, 25mm x 33m

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

153 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price 1 Reel of 33 Metre(s)

MYR1,236.71

Reel(s)	Per Reel	Per Metre*
1 +	MYR1,236.71	MYR37.476
*price indicative

RS Stock No.:: 542-5375
Mfr. Part No.:: AT528
Manufacturer:: Advance Tapes

Technical data sheets

Datasheet_AT528-ATI

Legislation and Compliance

Product Details

Advance Tapes Copper Tapes

The Advance Tapes copper tape is a 50μ, coated with electrically conductive acrylic adhesive, supplied on a removable silicon liner. This tape is 0.07mm thick, 25mm wide and 33m long.
Note:
To prevent tarnishing, do not touch this tape with bare hands.
EMI/RFI shielding tapes:
When using this tape, galvanic compatibility should be taken into account.

Features and Benefits

Good high and low temperature resistance
Easy unwind
Can be easily soldered
Greater shielding effectiveness
Breaking load is 85N/cm
Operating temperature ranges between -20°C and 155°C

Applications

Heating and ventilation
Construction industry
Manufacturing
Duct sealing

Specifications

Attribute	Value
Total Thickness	0.07mm
Tape Type	Copper Tape
Foil Thickness	0.05mm
Width	25mm
Length	33m
Conductivity	Conductive
Adhesion Strength	4.5 N/cm
Adhesive Material	Thermosetting Acrylic
Material Plating	None
Tensile Strength	85N/cm
Maximum Temperature Resistance	+155°C
Complies with EN Legislation	BS EN 60454 - Part 2
Minimum Temperature Resistance	-20°C
Model Number	AT528
