IP68 Rating Sealed Inline Cable Joiner Rated At 10A
- RS Stock No.:
- 866-0158
- Mfr. Part No.:
- PX0777/4POLE
- Manufacturer:
- Bulgin
30 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
111 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR130.84
| Units | Per Unit |
| 1 - 24 | MYR130.84 |
| 25 - 99 | MYR127.18 |
| 100 + | MYR121.94 |
- RS Stock No.:
- 866-0158
- Mfr. Part No.:
- PX0777/4POLE
- Manufacturer:
- Bulgin
Technical data sheets
Legislation and Compliance
Product Details

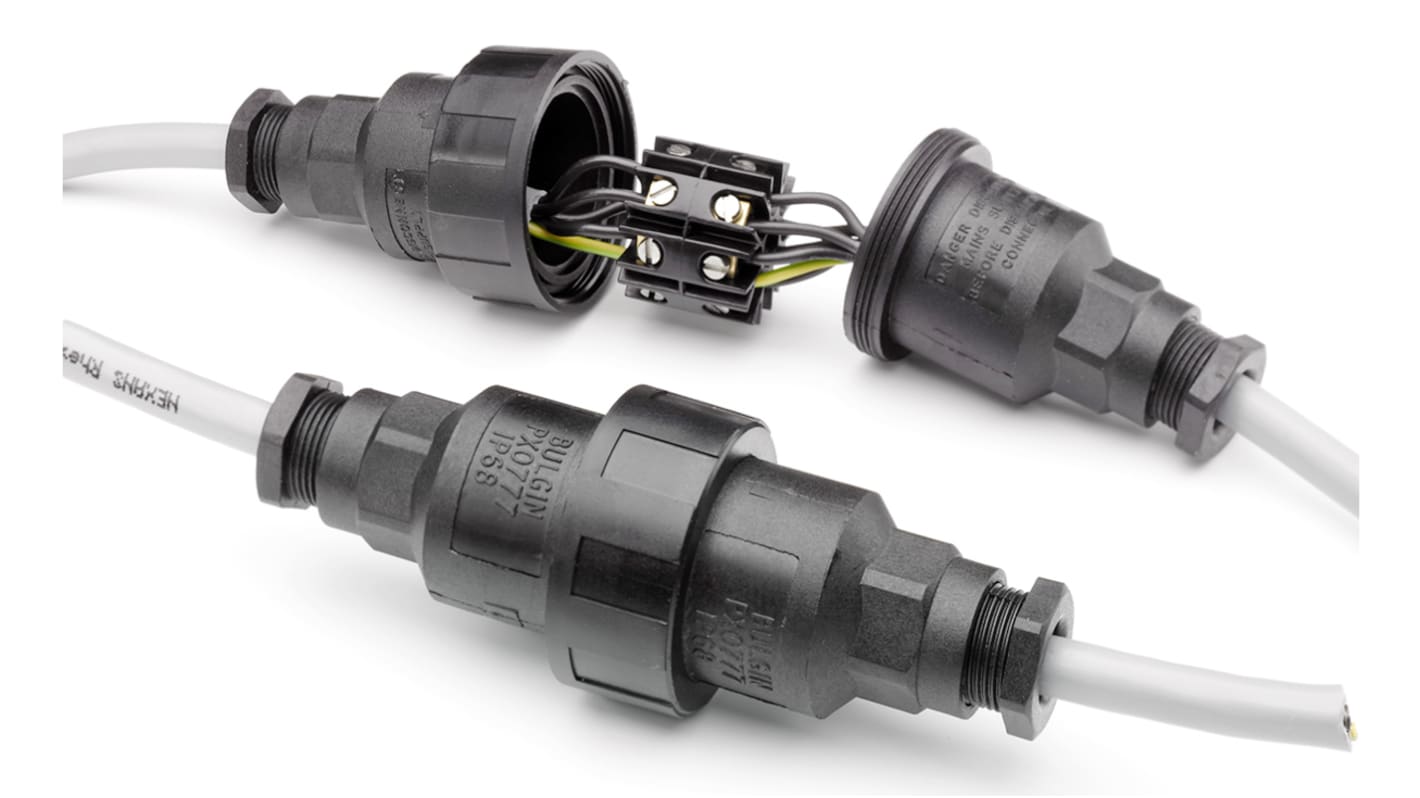

Bulgin Buccaneer Sealed In-Line Cable Joiners
Buccaneer sealed in-line cable joiner available in 4, 6 and 8 way variants, designed for joining multicore cables together in-line. The maximum standard cable acceptance is 6-8mm in diameter and the connector is rated at IP68 and IP69K when fully assembled. The buccaneer in-line cable joiner range are rated at 10A and 250Vac, with a maximum conductor accommodation capacity of 1.5mm2 (16 AWG), with glass filled polyamide body construction, UL94-V0 flammability rating and are RoHS compliant.
Rated at 10A 250Vac
Operating temperature range -20 to +70° C
Operating temperature range -20 to +70° C
Specifications
Attribute | Value |
|---|---|
| Current Rating | 10A |
| Voltage Rating | 250 V ac |
| IP Rating | IP68 |
| Length | 105mm |
