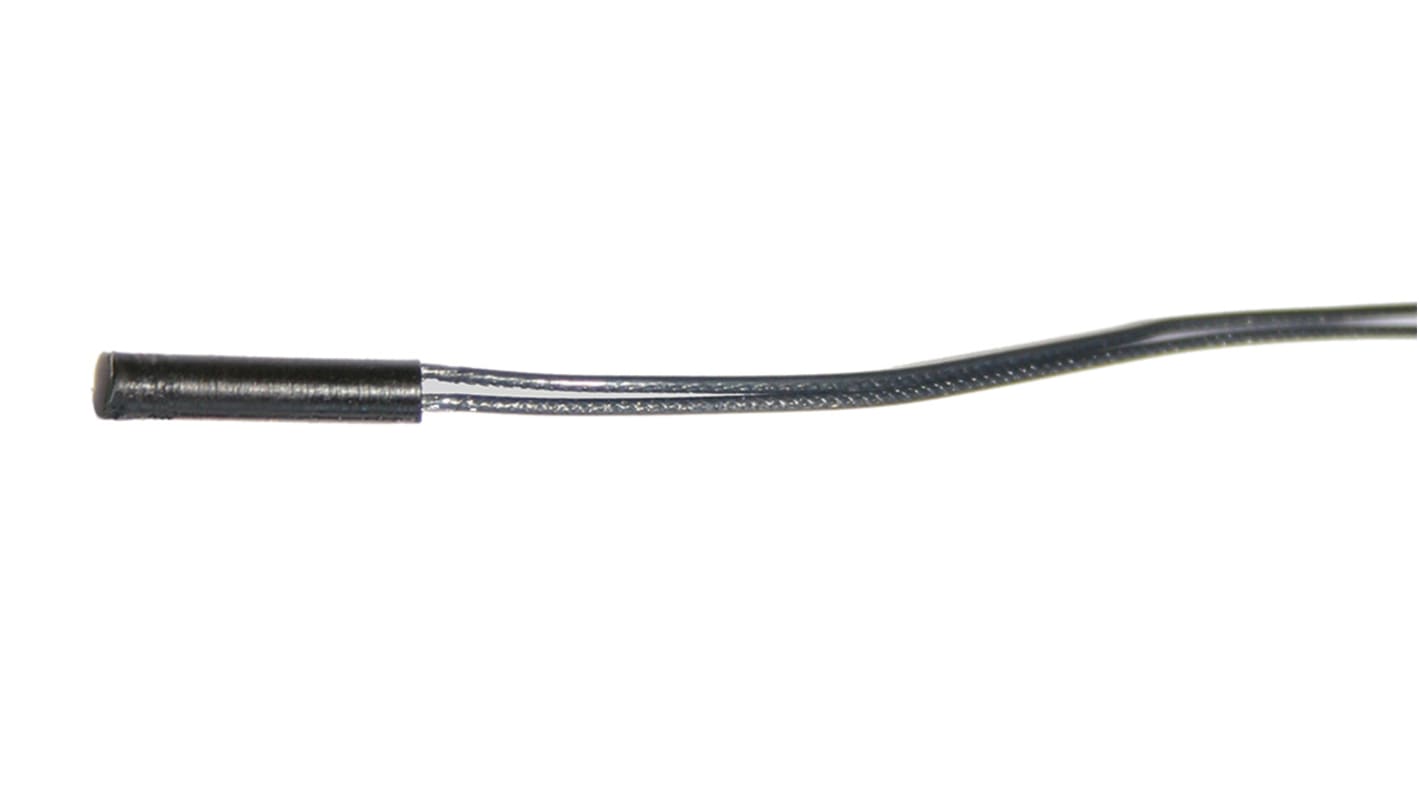

Assemtech Cylindrical Reed Switch, NO, 30V, 20mA
- RS Stock No.:
- 866-2580
- Mfr. Part No.:
- PRA 30/10
- Manufacturer:
- Assemtech
43 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR77.14
| Units | Per Unit |
| 1 + | MYR77.14 |
- RS Stock No.:
- 866-2580
- Mfr. Part No.:
- PRA 30/10
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Assemtech Cylindrical Proximity Reed Switches
This range of cylindrical magnetic proximity reed switches from Assemtech are designed to provide a simple and cost effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches.
N/O contacts
Matching operating magnet available
Matching operating magnet available
Specifications
Attribute | Value |
|---|---|
| Switch Shape | Cylindrical |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO |
| Terminal Type | Wire Lead |
| Maximum Current | 20mA |
| Maximum AC Voltage | 30V |
| Contact Resistance | 500mΩ |
| Total Length | 102mm |
| Length | 12mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Dimensions | 2.5 (Dia.) x 12mm |
