ABUS Rectangular Reed Switch, NC, , 50mA
- RS Stock No.:
- 524-5589
- Mfr. Part No.:
- FU7350W
- Manufacturer:
- ABUS Security-Center
In Global stock for delivery within 4 - 6 working days
Added
Price Each
MYR60.66
| Units | Per Unit |
| 1 + | MYR60.66 |
- RS Stock No.:
- 524-5589
- Mfr. Part No.:
- FU7350W
- Manufacturer:
- ABUS Security-Center
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
2 or 4-wire Magnetic Contacts
Combined opening sensor (reed contact) for flush/surface mounting with NC or NO contact
Suitable for private and commercial buildings with large switching distances
Suitable for all applications
The contacts are suitable for both parallel and overhead mounting (magnet/contact)
Suitable for private and commercial buildings with large switching distances
Suitable for all applications
The contacts are suitable for both parallel and overhead mounting (magnet/contact)
Approvals
VdS class B-approved
Supplied with

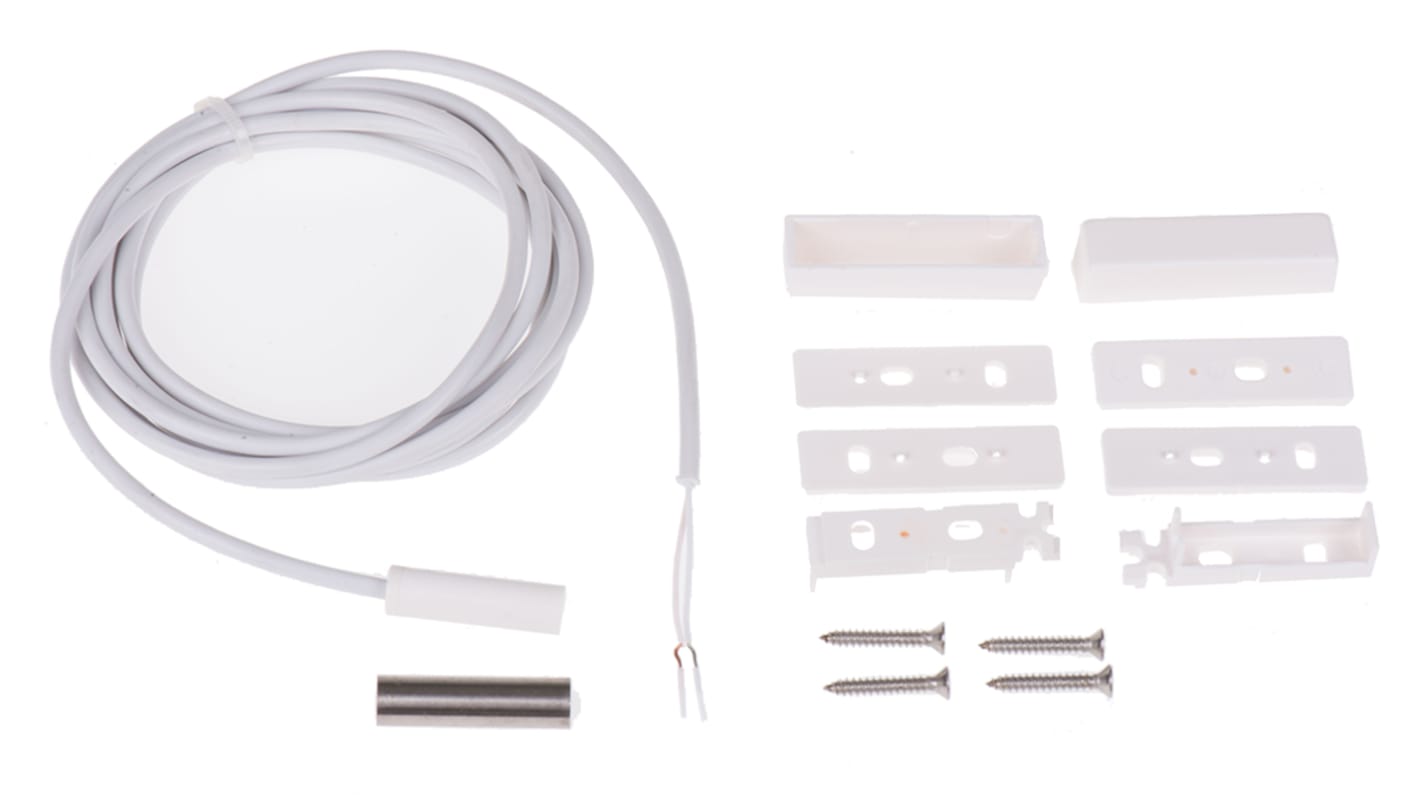

Opening sensor, mounting kit (comprising mounting housing, shims and fastening screws)
ABUS wired Reed switch sensor, NC, Rectangular, 50 mA
Specifications
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Normal State Configuration | NC |
| Terminal Type | Wire Lead |
| Maximum Current | 50mA |
| Maximum DC Voltage | 100V |
| Total Length | 2048mm |
| Length | 48mm |
| Dimensions | 48 x 11 x 12mm |
| Depth | 48mm |
| Width | 11mm |
