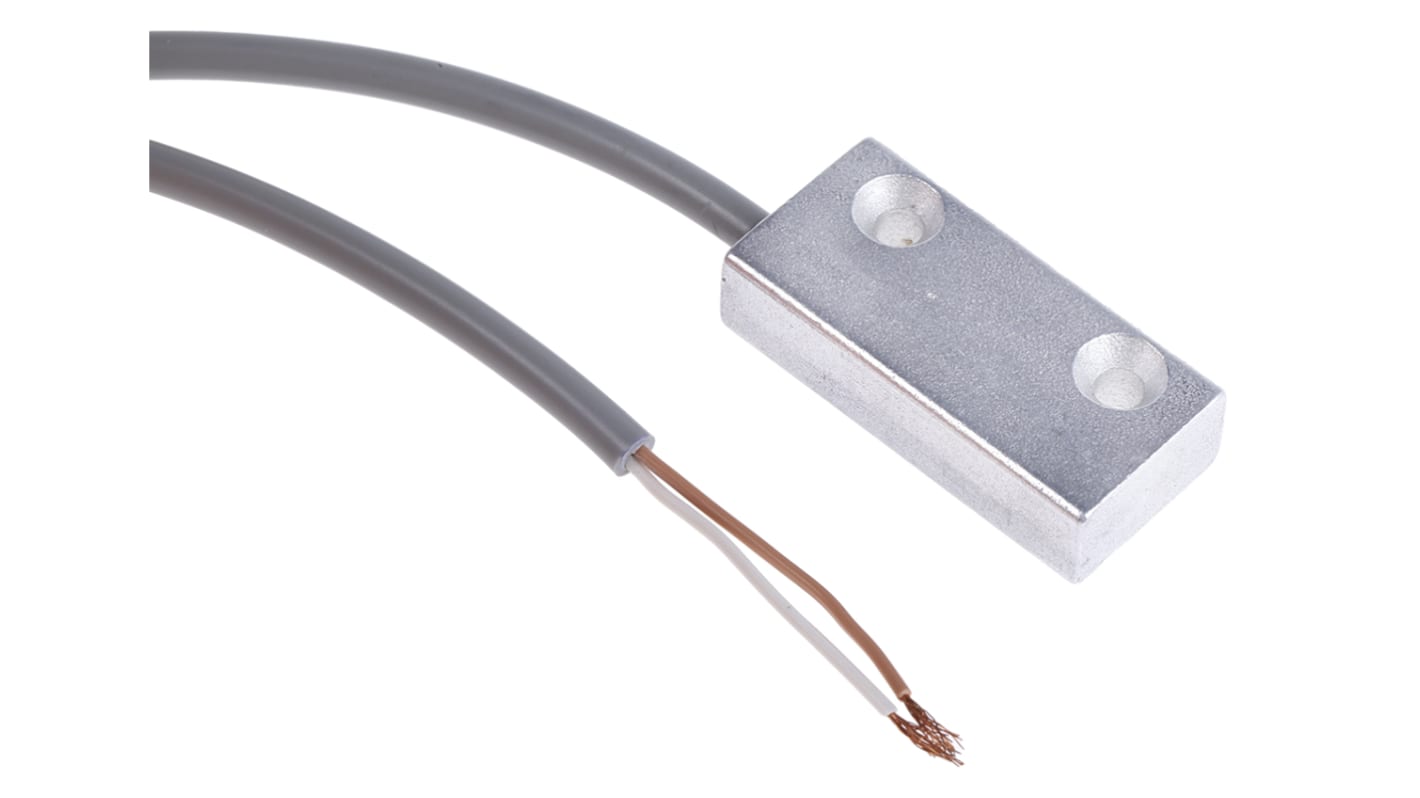

RS PRO Reed Switch Rectangular 200V, NO, 500 mA

  • RS Stock No. 361-4911
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

200Va.c. N/O Rectangular

Aluminium housings with fixing holes
Fully encapsulated to IP67
Dimensions: 32 x 15 x 8mm

Applications:
Position and limit sensing
Linear actuators
Security system switch
Door Switch

Note

Actuator magnet must be ordered separately, see Stock No. 361-4927

Specifications
Attribute Value
Switch Shape Rectangular
Switch Type Magnetic Proximity
Normal State Configuration NO
Maximum Current 500 mA
Maximum AC Voltage 200V
Contact Resistance 300mΩ
Total Length 32mm
Length 32mm
Width 8mm
Depth 15mm
Minimum Operating Temperature -20°C
Dimensions 32 x 8 x 15 mm
Maximum Operating Temperature +85°C
425 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 19.02
units
Per unit
1 - 14
MYR19.02
15 +
MYR18.39
