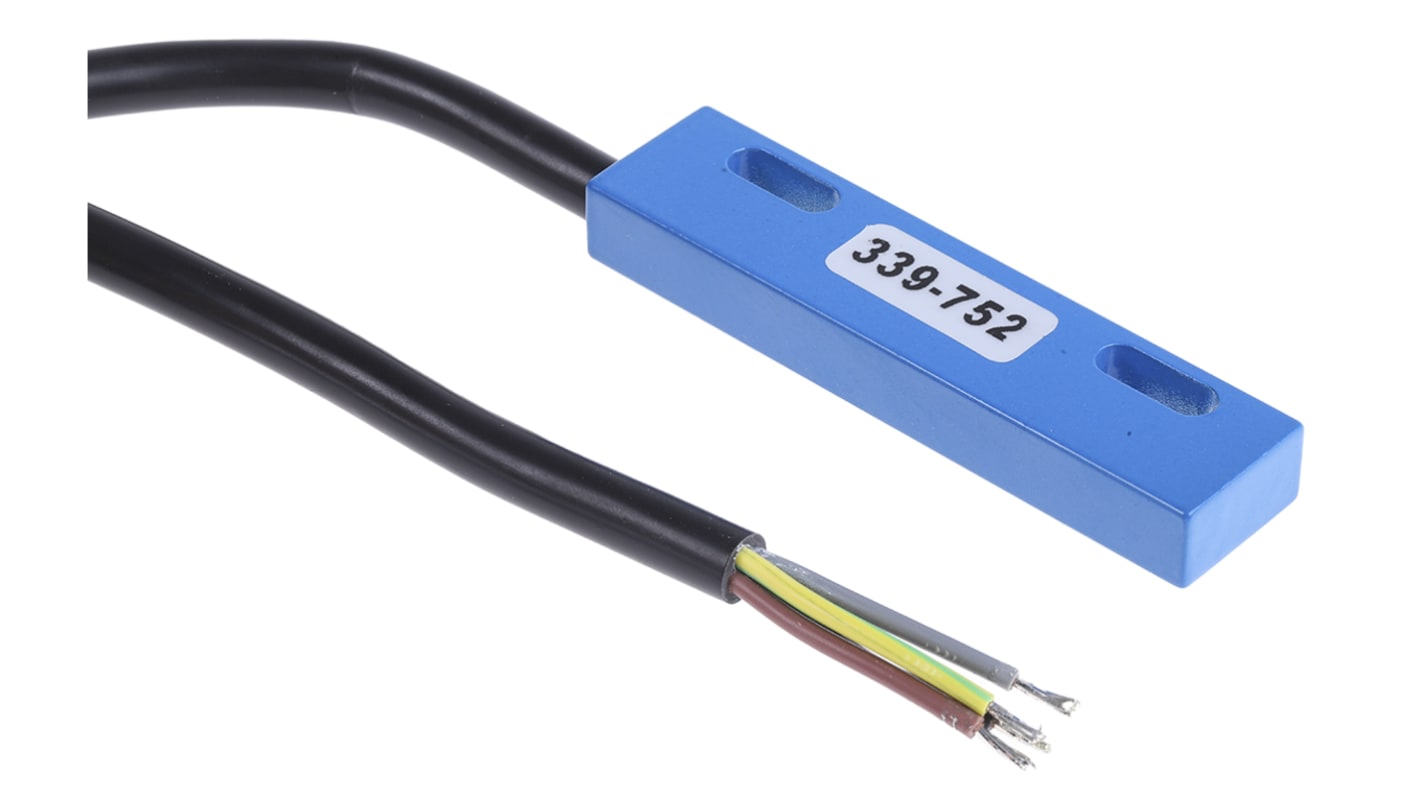

RS PRO Reed Switch Flat 400V, CO, 2 A

  • RS Stock No. 339-752
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Heavy Duty

The Following Wiring Information Relates to the C/O Switch (RS 339-752)
Pre-wired with 0.7m PVC leads
Blue cast zinc case with slotted fixing
Breakdown volts: 340ac/500dc
Rating IP64
Dimensions: 80 x 19 x 9.6mm (switch) 38 x 25 x 9.6mm (magnet)

Blue wire = common (could be a light grey colour)
Brown wire = normally closed
Black wire = normally open
Green/yellow wire = earth
Note: The normal condition is with no magnet present

Note

Actuator magnet must be ordered separately, see Stock No. 339-768

Specifications
Attribute Value
Switch Shape Flat
Switch Type Magnetic Proximity
Normal State Configuration CO
Terminal Type Screw
Maximum Current 2 A
Maximum AC Voltage 400V
Maximum DC Voltage 250V
Contact Resistance 100mΩ
Total Length 19.1mm
Length 19.1mm
Depth 9.8mm
Dimensions 19.1 x 79.4 x 9.8 mm
Maximum Operating Temperature +85°C
Width 79.4mm
Minimum Operating Temperature -10°C
918 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 108.83
units
Per unit
1 - 14
MYR108.83
15 +
MYR104.45
