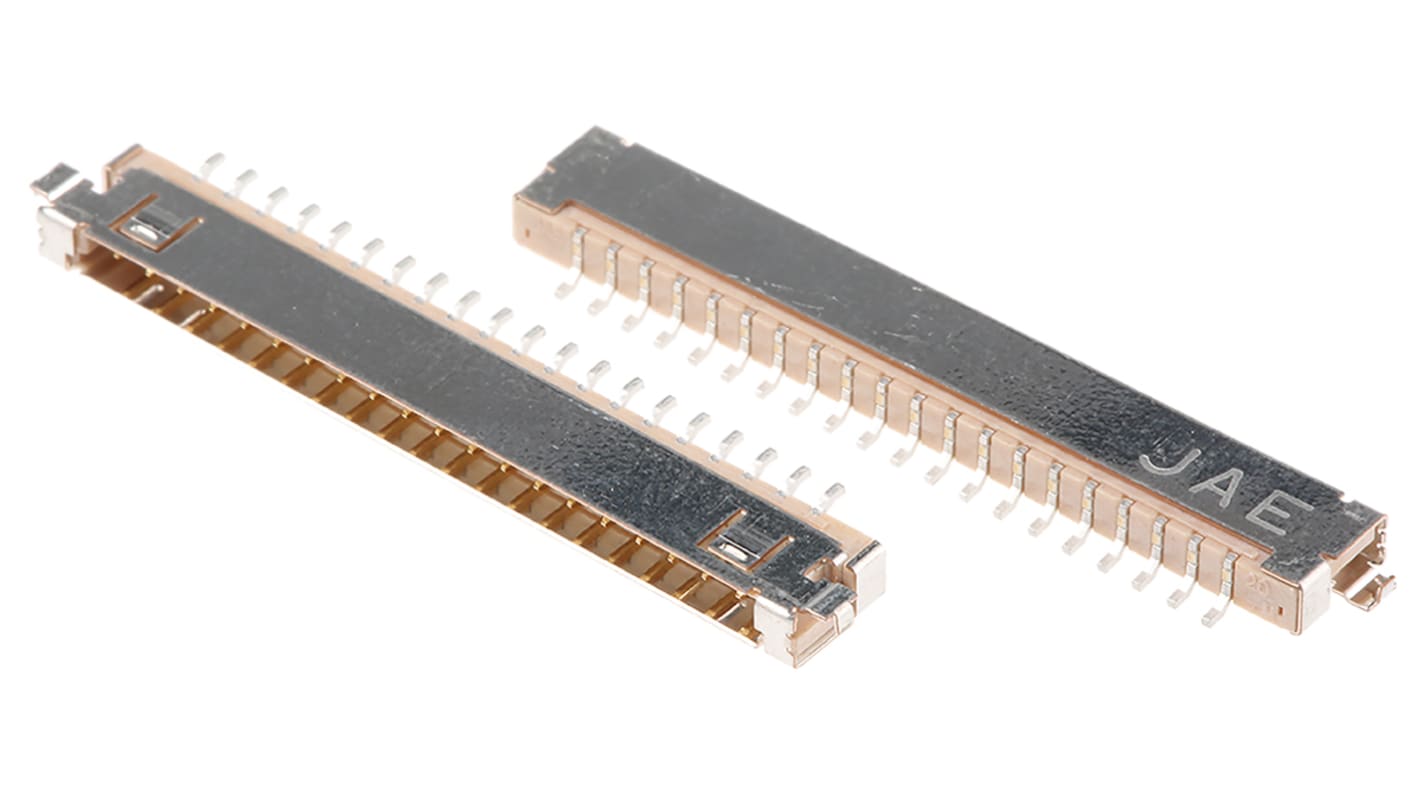

JAE FI Series 1.25mm Pitch 20 Way 1 Row Right Angle Surface Mount LVDS Connector, Receptacle, Solder Termination

  • RS Stock No. 437-203
  • Mfr. Part No. FI-SE20P-HFE
  • Manufacturer JAE
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

90° LVDS Header

LVDS Range

The FI family are designed for board to cable applications with the electrical performance to support transmissions of Low Voltage Differential Signalling (LVDS) As products increasingly incorporate digital technology the FI family meets the internal signal needs for products as LCD, PDP, Rear Projection and other equipment utilizing LVDS.

Compatible with high speed differential transmission (90 to 100Ω)
Shielded versions offer improved EMI
Latch version offer improved mechanical retention under vibration
FI-R chosen by VESA as standard LVDS connector for LCD interface

Specifications
Attribute Value
Type Receptacle
Number of Contacts 20
Number of Rows 1
Mounting Type Surface Mount
Body Orientation Right Angle
Pitch 1.25mm
Contact Material Copper Alloy
Housing Colour Beige
Housing Material Liquid Crystal Polymer
Termination Method Solder
Series FI Series
170 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
Was MYR33.96
MYR 20.93
units
Per unit
Per Pack*
5 - 95
MYR20.93
MYR104.65
100 - 370
MYR20.736
MYR103.68
375 - 1495
MYR20.468
MYR102.34
1500 - 2995
MYR20.202
MYR101.01
3000 +
MYR19.948
MYR99.74
*price indicative
Packaging Options:
