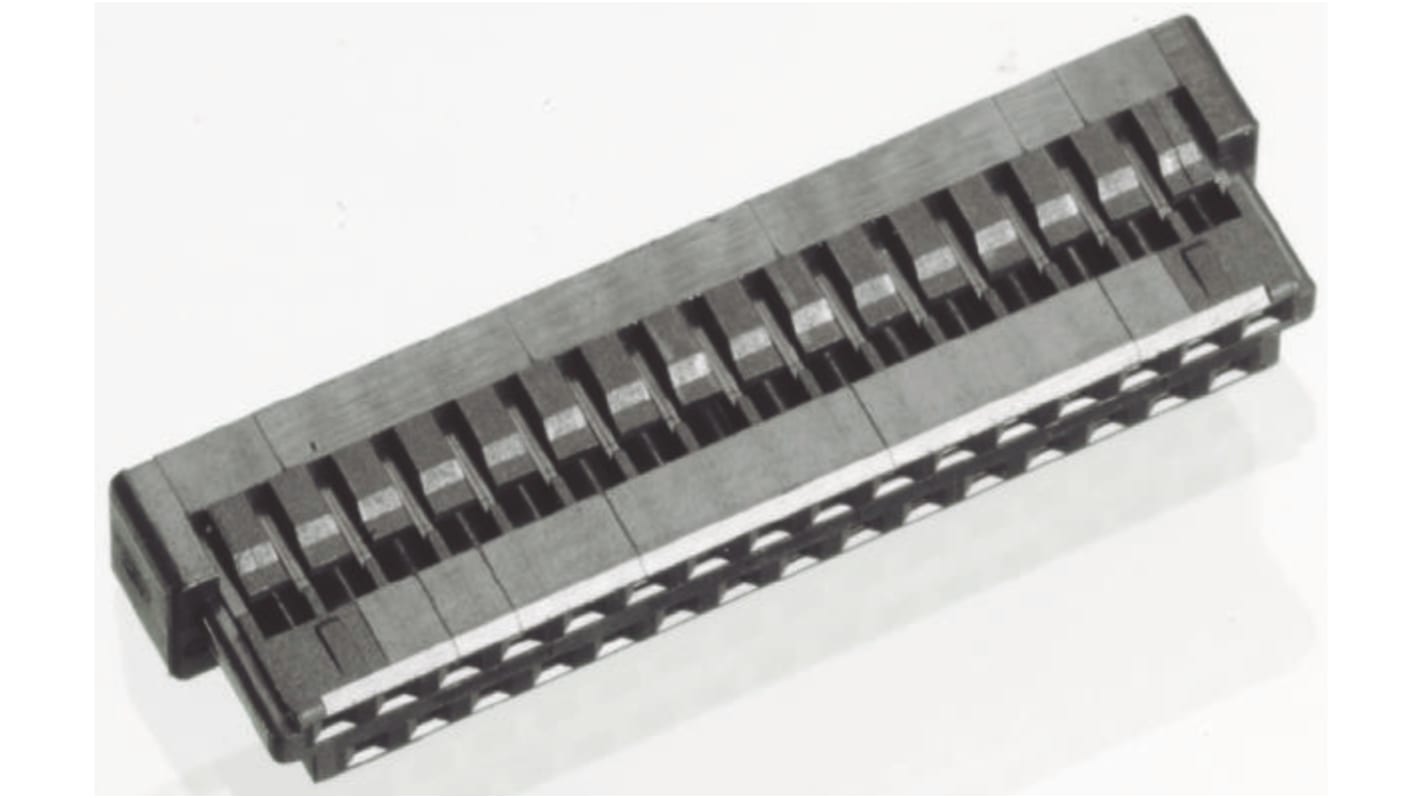

JAE FI Series 1.25mm Pitch 31 Way 2 Row Straight Cable Mount LVDS Connector, Plug Housing, Crimp Termination

  • RS Stock No. 437-077
  • Mfr. Part No. FI-W31S
  • Manufacturer JAE
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

LVDS Crimp Housing

LVDS Range

The FI family are designed for board to cable applications with the electrical performance to support transmissions of Low Voltage Differential Signalling (LVDS) As products increasingly incorporate digital technology the FI family meets the internal signal needs for products as LCD, PDP, Rear Projection and other equipment utilizing LVDS.

Compatible with high speed differential transmission (90 to 100Ω)
Shielded versions offer improved EMI
Latch version offer improved mechanical retention under vibration
FI-R chosen by VESA as standard LVDS connector for LCD interface

Specifications
Attribute Value
Type Plug Housing
Number of Contacts 31
Number of Rows 2
Mounting Type Cable Mount
Body Orientation Straight
Pitch 1.25mm
Contact Material Copper Alloy
Housing Colour Black
Housing Material Nylon
Termination Method Crimp
Series FI Series
75 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 4.088
units
Per unit
Per Pack*
5 - 95
MYR4.088
MYR20.44
100 - 370
MYR3.39
MYR16.95
375 - 1495
MYR2.862
MYR14.31
1500 - 2995
MYR2.65
MYR13.25
3000 +
MYR2.446
MYR12.23
*price indicative
