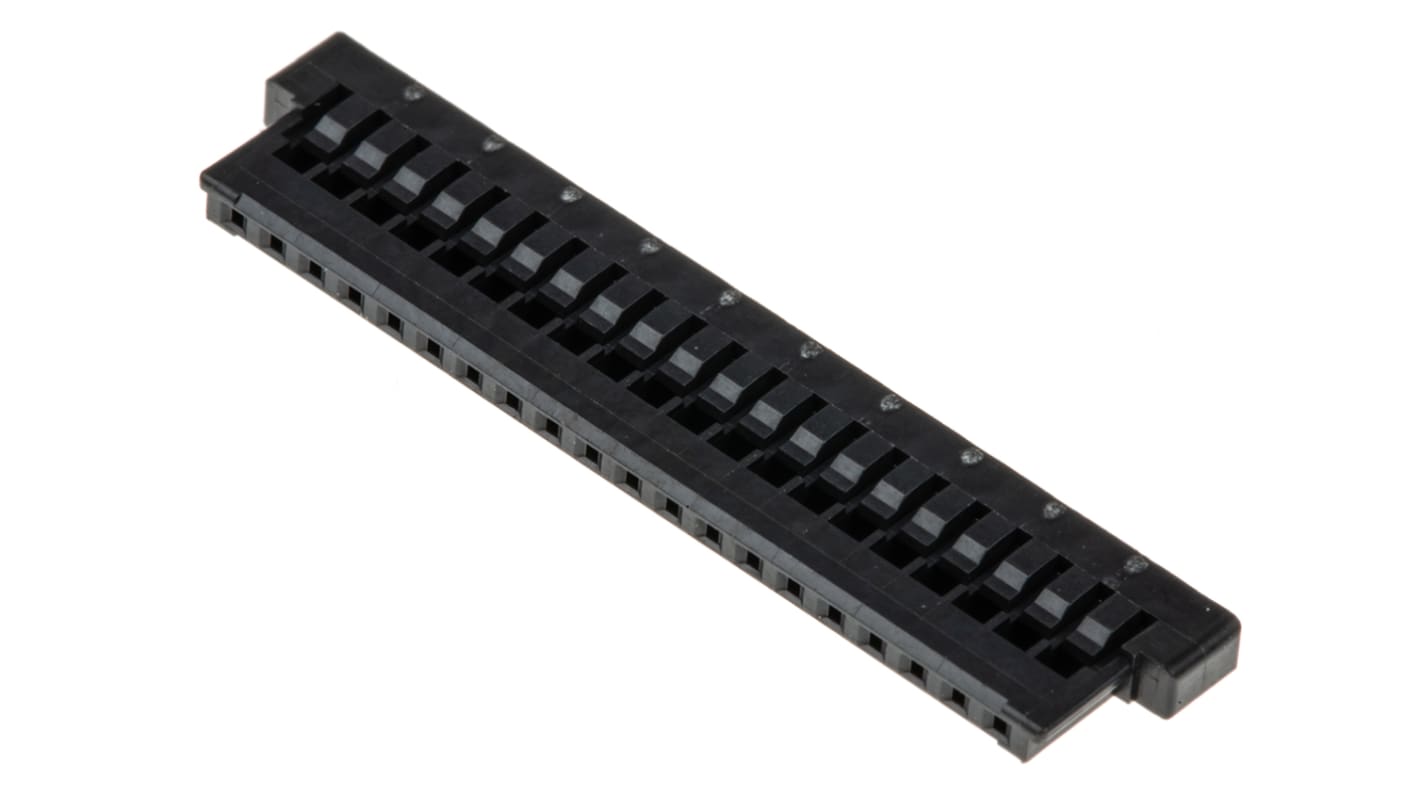

JAE FI Series 1.25mm Pitch 20 Way 1 Row Straight Cable Mount LVDS Connector, Plug Housing, Crimp Termination

  • RS Stock No. 437-073
  • Mfr. Part No. FI-S20S
  • Manufacturer JAE
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

1.25mm LVDS Wire to Board Plug Housing for Socket Contacts

LVDS wire to board discrete wire plug housing with a 1.25mm pitch for socket contacts (see stock number 690-9316 typically). These 1.25mm LVDS cable mount wire to board plug style crimp housings have keying, friction lock and are made from UL94V-0 glass filled nylon. Typical applications for these 1.25mm LVDS plug housing connectors include Notebook PCs, VCRs, mobile phones and other applications where reduced space is a requirement.
For mating headers see stock number 437-213 typically.

1.25 mm LVDS Range

FI Series connectors are designed for board-to-board applications. Typical applications include notebook PCs, VCR’s, mobile phones and other consumer applications, where reduced space is a requirement.

Specifications
Attribute Value
Type Plug Housing
Number of Contacts 20
Number of Rows 1
Mounting Type Cable Mount
Body Orientation Straight
Pitch 1.25mm
Contact Material Copper Alloy
Housing Colour Black
Housing Material Nylon
Termination Method Crimp
Series FI Series
1795 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 5.648
units
Per unit
Per Pack*
5 - 95
MYR5.648
MYR28.24
100 - 370
MYR5.17
MYR25.85
375 - 1495
MYR4.758
MYR23.79
1500 - 2995
MYR4.596
MYR22.98
3000 +
MYR4.42
MYR22.10
*price indicative
