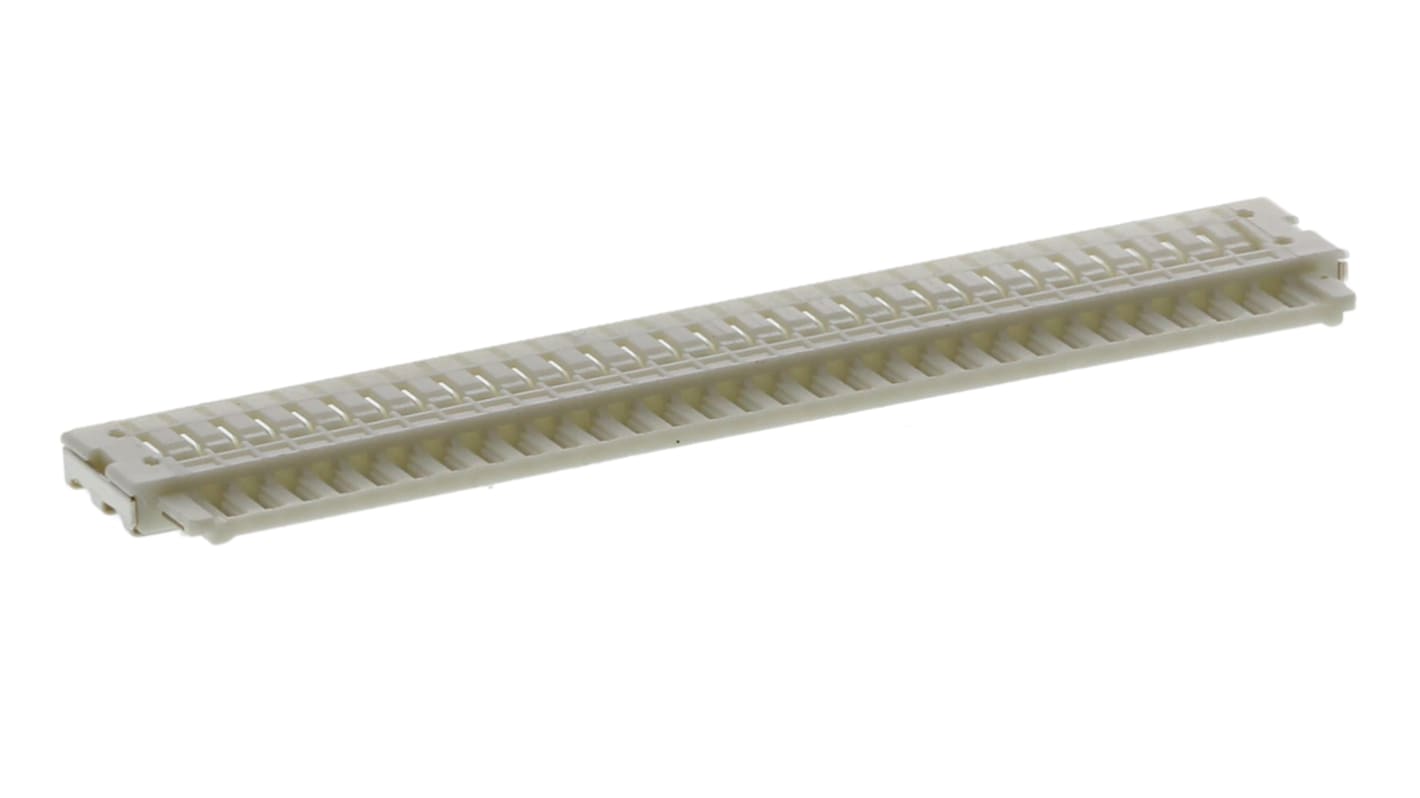

JAE FI-X Series 1mm Pitch 30 Way 1 Row Straight Cable Mount LVDS Connector, Plug Housing, Crimp Termination

  • RS Stock No. 435-756
  • Mfr. Part No. FI-X30H
  • Manufacturer JAE
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LVDS Crimp Housing

LVDS Range

The FI family are designed for board to cable applications with the electrical performance to support transmissions of Low Voltage Differential Signalling (LVDS) As products increasingly incorporate digital technology the FI family meets the internal signal needs for products as LCD, PDP, Rear Projection and other equipment utilizing LVDS.

Compatible with high speed differential transmission (90 to 100Ω)
Shielded versions offer improved EMI
Latch version offer improved mechanical retention under vibration
FI-R chosen by VESA as standard LVDS connector for LCD interface

Specifications
Attribute Value
Type Plug Housing
Number of Contacts 30
Number of Rows 1
Mounting Type Cable Mount
Body Orientation Straight
Pitch 1mm
Contact Material Copper Alloy
Housing Colour Beige
Housing Material Nylon
Termination Method Crimp
Series FI-X Series
520 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 9.50
units
Per unit
Per Pack*
5 - 95
MYR9.50
MYR47.50
100 - 370
MYR8.694
MYR43.47
375 - 1495
MYR8.37
MYR41.85
1500 - 2995
MYR8.092
MYR40.46
3000 +
MYR7.838
MYR39.19
*price indicative
