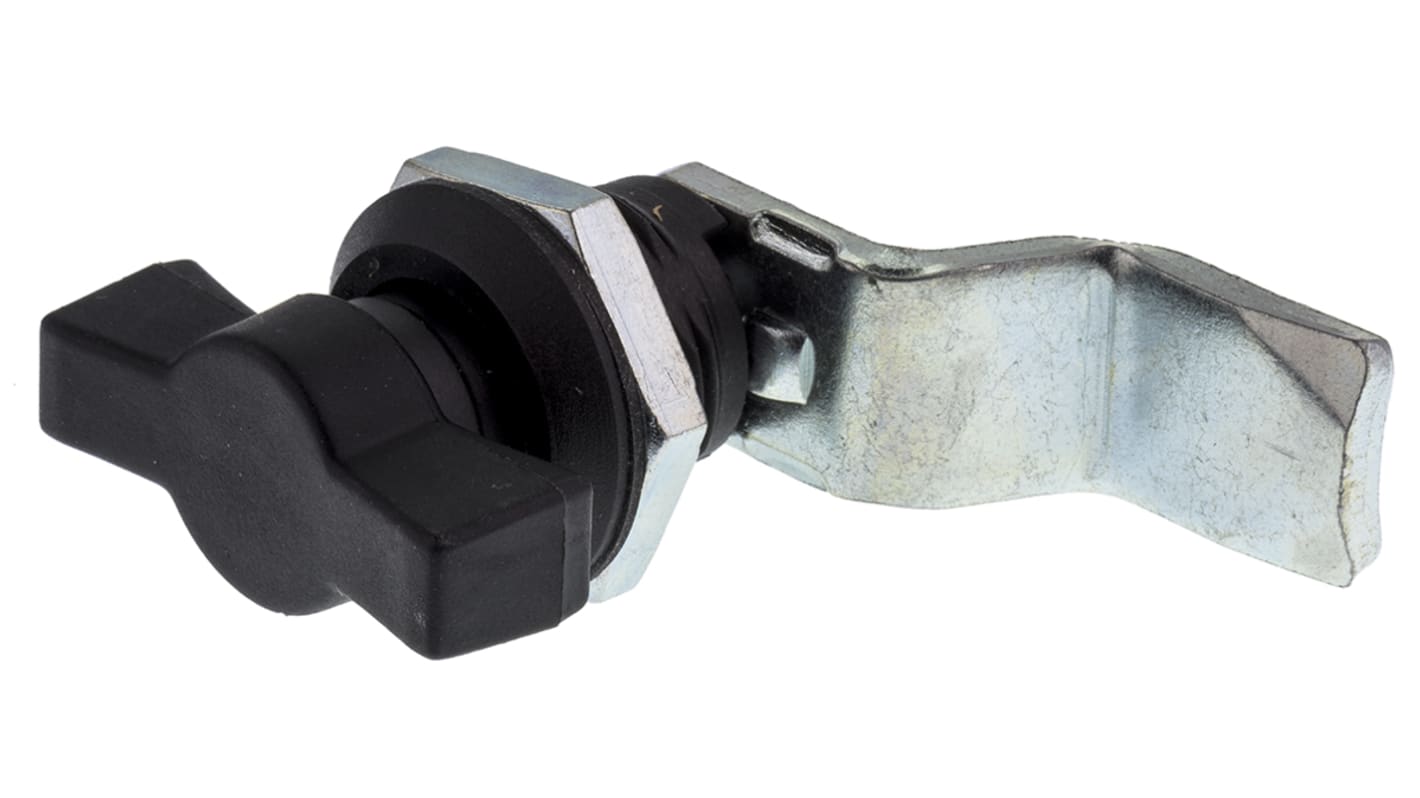

Polyamide Black Lock, Wing, 39mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Wing Handle Turn

Wing handle and housing manufactured from black polyamide, latch has zinc plated steel tongue
IP65/NEMA4 sealed
Supplied fully assembled

Grip Ranges:
348-7113 - 13mm
348-7135 - 20mm
348-7141 - 26mm
348-7157- 32mm

Specifications
Attribute Value
Handle Style Wing
Handle Length 39mm
Material Polyamide
Colour Black
226 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 38.24
units
Per unit
1 +
MYR38.24
